Tote Vision LED-803HD 8" LCD Monitor
HomeStore

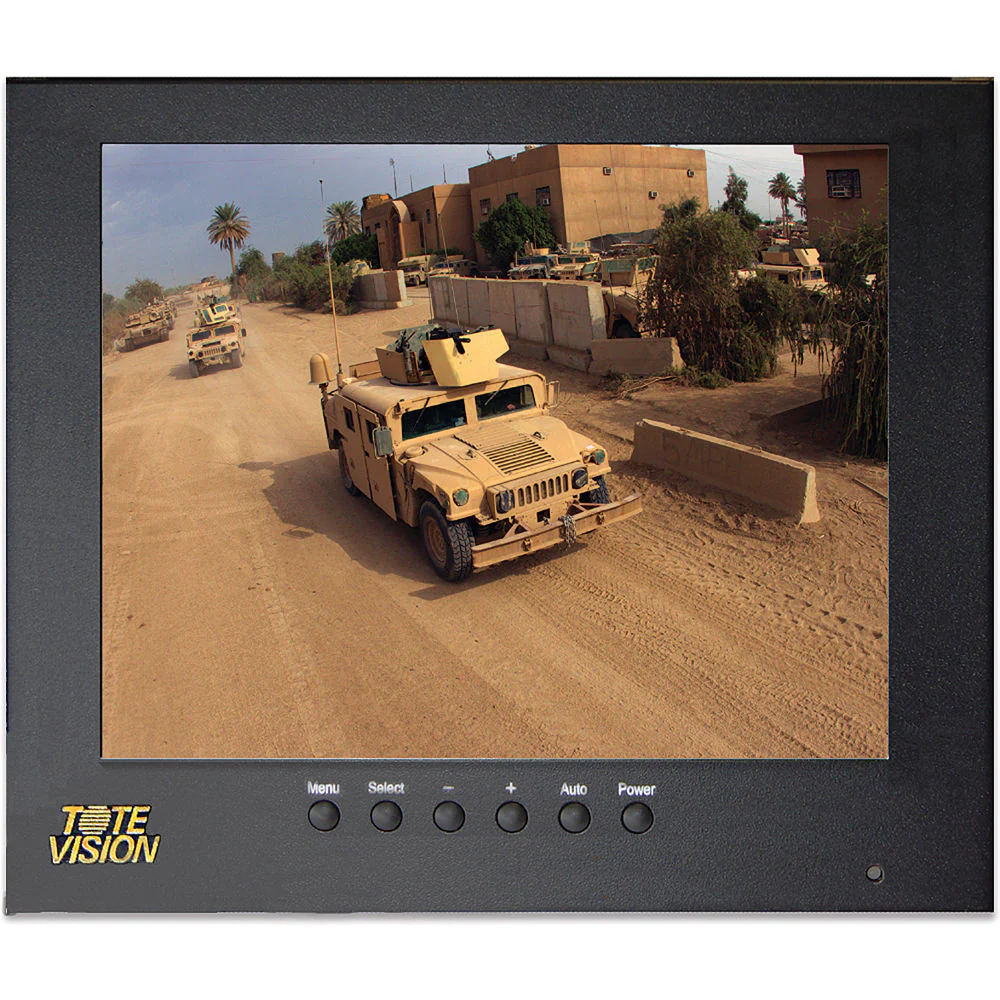

Tote Vision LED-803HD 8" LCD Monitor

Tote Vision LED-803HD 8" LCD Monitor

  • 8" 800x600 LED LCD Display
  • Supports SD and HD Video
  • Composite and HDMI Inputs
  • 140/120� (H/V) Viewing Angle
  • Power-Efficient LED Design
  • Includes Remote Control
  • Metal Chassis

Utilizing an LED backlight the Tote Vision LED-803HD 8" LCD Monitor allows you to view SD, HD, and computer video on a bright screen while remaining power efficient. Since the power consumption is low, this monitor can operate in "always on" situations required by surveillance and other A/V integration applications. Video is displayed on the 800x600 resolution panel, though signals up to 1920x1080 resolution are supported as well.

The rear panel contains all the video and audio connections. Composite and HDMI video sources are accepted, and analog audio can be input via RCA or 3.5mm jacks to complement the video inputs. Audio can be monitored using the integrated 1.5W speakers. For convenience, controlling the monitor can be done using the front-panel buttons or with the included remote control.

Anti-glare coating to provide enhanced display
Always-on capability when power is applied
Two built-in speakers
Infrared remote control
Low power consumption
PC connectivity
Durable metal case
UPC: 081651482049
In the Box
Tote Vision LED-803HD 8" LCD Monitor
  • Power Supply
  • Remote Control
  • Limited 3-Year Warranty
Resolution (H x V) 800 x 600
Native Aspect Ratio 4:3
Visible Screen Size 6.4 x 4.8" (16.2 x 12.2 cm)
Back Light 20 K LED
Brightness 250 cd/m� (Nit)
Contrast 500:1
Dot Pitch 0.0675 x 0.2025 mm
Color Depth 16.7 million
Pixel Configuration RGB vertical stripe
Response Time 25 ms (rising/falling)
Viewing Angle 140 / 120� (H / V)
Audio Power 1.5 W x 2 speakers
VESA Mount 75 x 75 mm
Desktop Stand 1/4"-20 pad top/bottom, removable
Connectors 1 x HDMI input
2 x BNC, Composite input/output
2 x RCA, L/R audio input
1 x 3.5 mm phone jack, PDC audio input
1 x 2.1 mm jack, DC input
Remote Control Infrared
RS-232 Yes
Operating Temperature 32 to 122&degF (0 to 50&degC)
Humidity 10-90% RH
Power Requirements 11.5 - 13 VDC, 1.2 A
Power Consumption 10 W
Dimensions 8.8 x 6.9 x 1.9" (223 x 176.2 x 47 mm)
Weight 2.9 lb (1.3 kg)
Packaging Info
Package Weight 5.95 lb
Box Dimensions (LxWxH) 12.5 x 12.3 x 4.0"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
