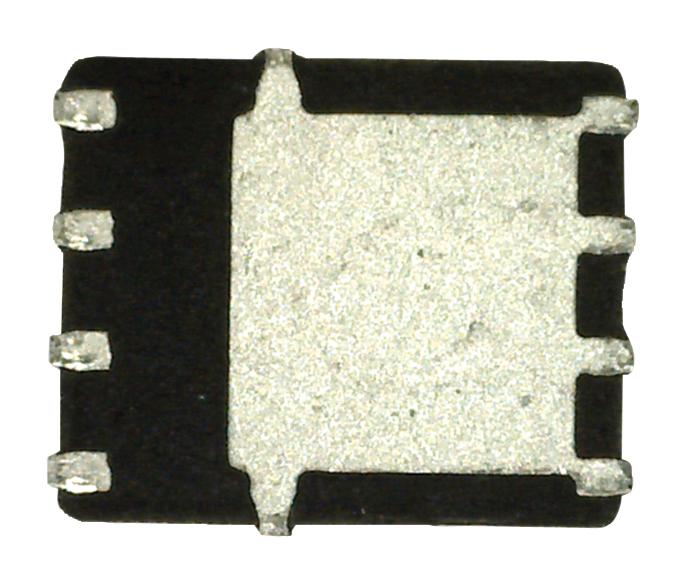

TOSHIBA TPN7R504PL,LQ(S Power MOSFET, N Channel, 40 V, 68 A, 0.0056 ohm, TSON, Surface Mount TPN7R504PL, TPN7R504PL,LQ
TOSHIBA TPN7R504PL,LQ(S Power MOSFET, N Channel, 40 V, 68 A, 0.0056 ohm, TSON, Surface Mount TPN7R504PL, TPN7R504PL,LQ
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 40V |
| Continuous Drain Current Id: 68A |
| Drain Source On State Resistance: 0.0056ohm |
| Transistor Case Style: TSON |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 2.4V |
| Power Dissipation: 61W |
| No. of Pins: 8Pins |
| Operating Temperature Max: 175°C |
| Product Range: U-MOSIX-H Series |
| Qualification: - |
Other details
| Brand | TOSHIBA |
| Part Number | TPN7R504PL,LQ(S |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$1.74
