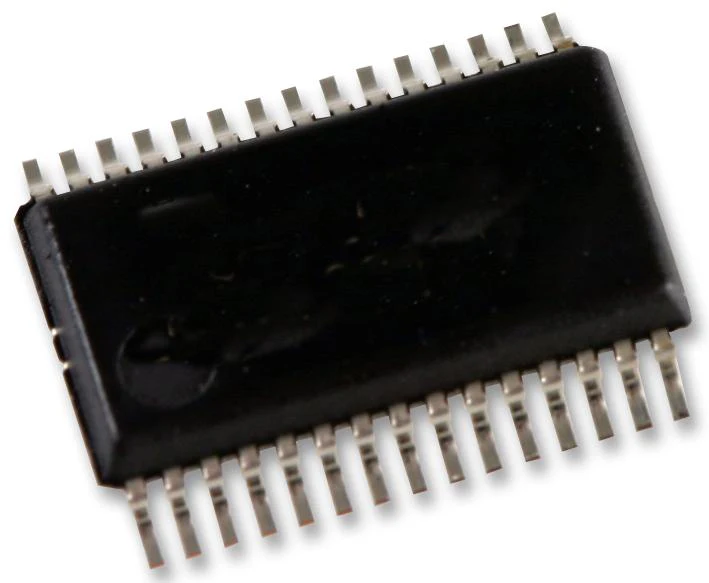

TOSHIBA TPD7212FN,L1XHF(S Gate Driver, 6 Channels, Isolated, 3 Phase Full Bridge, MOSFET, 30 Pins, SSOP

TPD7212FN,L1XHF(S is a power MOSFET gate driver for 3-phase full-bridge circuits by the BiCD process. The inclusion of a charge pump circuit for drivers inside the IC makes it easy to configure a 3-phase full-bridge circuit. Applications include a 3-phase brushless DC motor for automotive, electric power steering, power sliding door, transmission, automotive pumps, automotive fans, HVAC.

• Built-in diagnostic functions for driver power supply and output voltage
• Built-in charge pump circuit, AEC-Q100 qualified
• Operating supply voltage range from 4.75V to 18.0V (Tj = -40 to 150°C)
• Charge pump frequency is 55KHz typical at (VDD = 5 to 18V, Tj = -40 to 150°C)
• Propagation delay time is ±0.2?s (same output, Tj = -40 to 150°C)
• Slew rate is 75V/?s typical (Tj = -40 to 150°C, rise and fall)
• Driver on resistance is 1.3 ohm typical at (IO = -0.1A, VDD = 5 to 18V, Tj = -40 to 150°C)
• Supply current is 3.9mA typical at (VEN = H, VINx = L, VDD = 4.5 to 18.0V, Tj = -40 to 150°C)
• Input current(EN) is 12?A typical at (VEN = 5V, Tj = -40 to 150°C)
• SSOP30 package, operating temperature range from -40°C to 150°C
