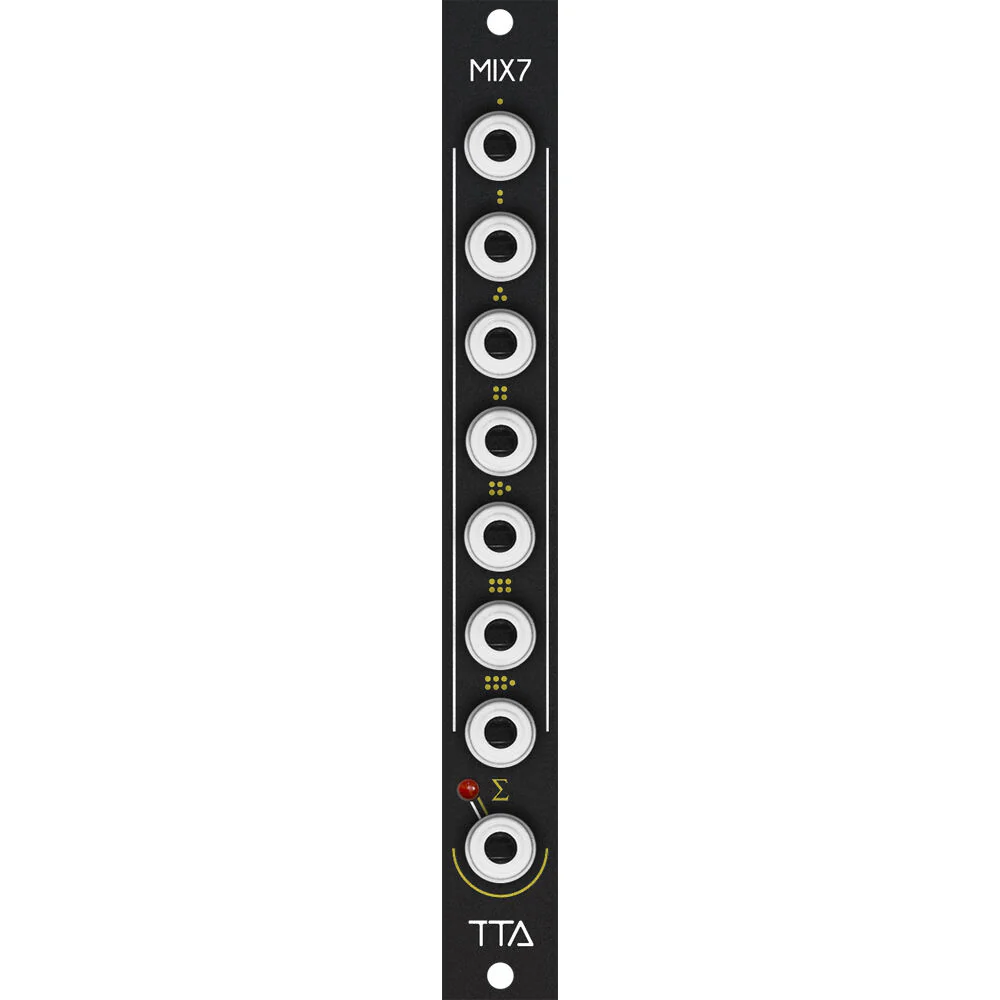

TipTop Audio MX7 Passive Summing Mixer Eurorack Module (3 HP, Black)
TipTop Audio MIX7 BK Overview
- 1Description
- 2At a Glance
- 3Multiple Uses
- 4Eurorack Ready
Mix your signals with the Tiptop Audio MX7, a mono, seven-channel, analog summing mixer for your Eurorack modular system. Combine audio, CV, gate, or trigger signals to create rhythms, note patterns, or CV automations from different control surfaces.
The MX7 is built with low-noise operational amplifiers, giving it an excellent sound quality for mixing audio. Each input is labeled with a number of dots and you can combine two MX7 to create a 13-channel summing mixer. The MX7 ships with a ribbon power cable.
At a Glance
- 7-channel mono summing mixer
- Mix audio, CV, triggers, or gate signals
- Two modes of operation:
- Unity Gain (Jumper Off: Out = In): The level of each input equals that of the output, what comes in comes out.
- Attenuated Gain (Jumper On: Out = 0.4 In): The level of each input is attenuated at the output to provide more headroom for mixing hot (loud) audio signals without distortion
Multiple Uses
Drum Mixer
- Sequence a drum pattern with up to 7 drum sounds, connect the audio output of each drum module to an input of MIX7. Connect the output of MIX7 to your sound system. Use individual volume controls on drum modules to set the drums balance.
Mixing Oscillators Waveform
- Connect the waveforms from two Z3000�s to the inputs of MIX7. Connect the mix output of MIX7 to your sound system through a Filter like the Z2040. You have just patched the audio part of a monophonic synth patch.
Mixing Control Voltage Sources
- In this example we will need two Z4000 envelopes. Connect the outputs of both to the inputs of MIX7. Connect the mix output of MIX7 to your Frequency Modulation (FM) input of Z2040 filter. Now you can modulate the filter frequency with two envelopes.
Mixing Triggers And Gates
- Connect the trigger outputs from your Circadian Rhythms or Trigger Riot to different inputs on the MIX7, send the MIX OUT to a Tiptop Audio ONE Sample Player, play with the Mute button on the sequencers to add and remove triggers from the mix.
Mixing More Than 7 Channels
- MIX7 is a summing bus that can be expanded by using two or more MIX7 modules to add channels. Connect the output of the first MIX7 to input 1 on the second MIX7. Connect the output of the second MIX7 to your sound system. Now you have patched a 13-channel mixer.
Eurorack Ready
- 3 HP Eurorack format module
- Maximum depth: 1.7" (43mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 25mA, -12V: 20mA
In the Box
- TipTop Audio MX7 Passive Summing Mixer Eurorack Module (3 HP, Black)
- Bus-Board Power Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Multiple Uses
- Eurorack Ready
TipTop Audio MIX7 BK Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
7x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
7x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
25 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
3 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
External Audio (Level)
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
7x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
7x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
25 mA on +12 V Rail
20 mA on -12 V Rail |
Physical
| Horizontal Pitch |
3 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.205 lb
|
| Box Dimensions (LxWxH) |
6.4 x 2.7 x 1.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$57.13
Original: $190.42
-70%TipTop Audio MX7 Passive Summing Mixer Eurorack Module (3 HP, Black)—
$190.42
$57.13TipTop Audio MX7 Passive Summing Mixer Eurorack Module (3 HP, Black)
