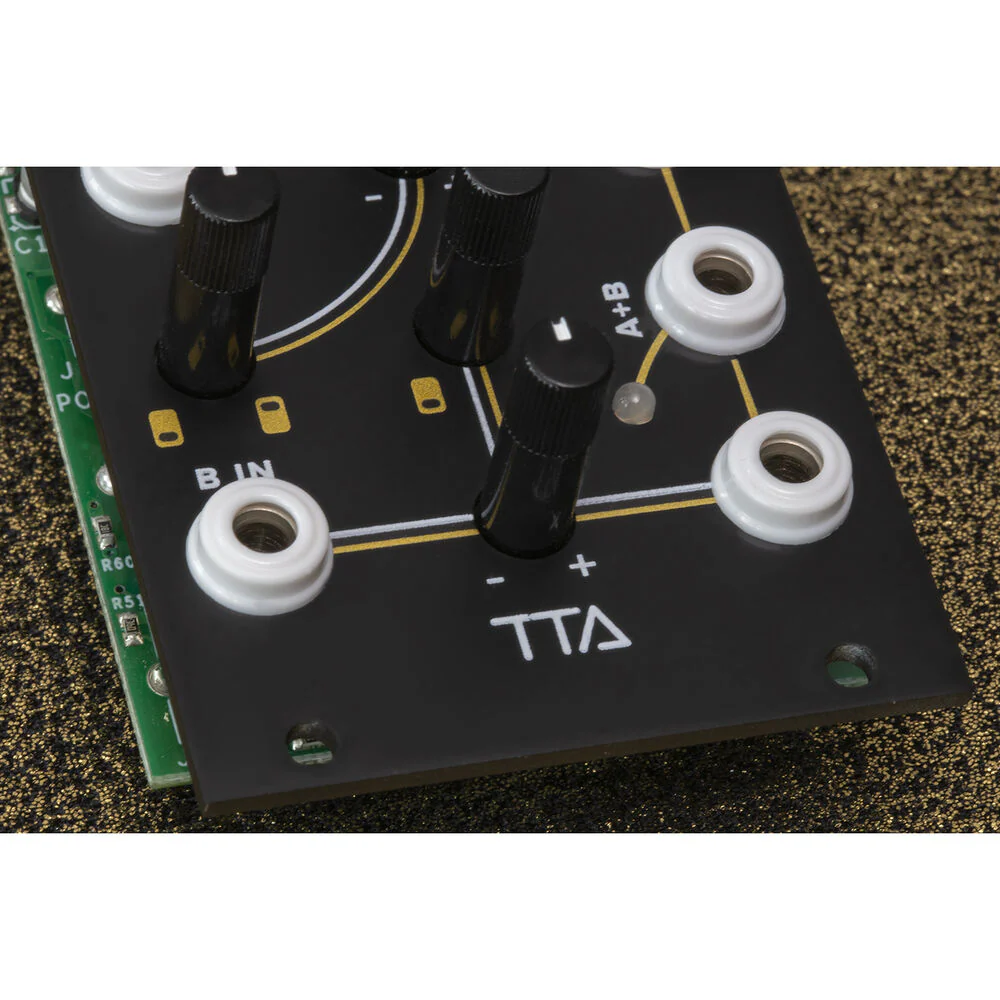

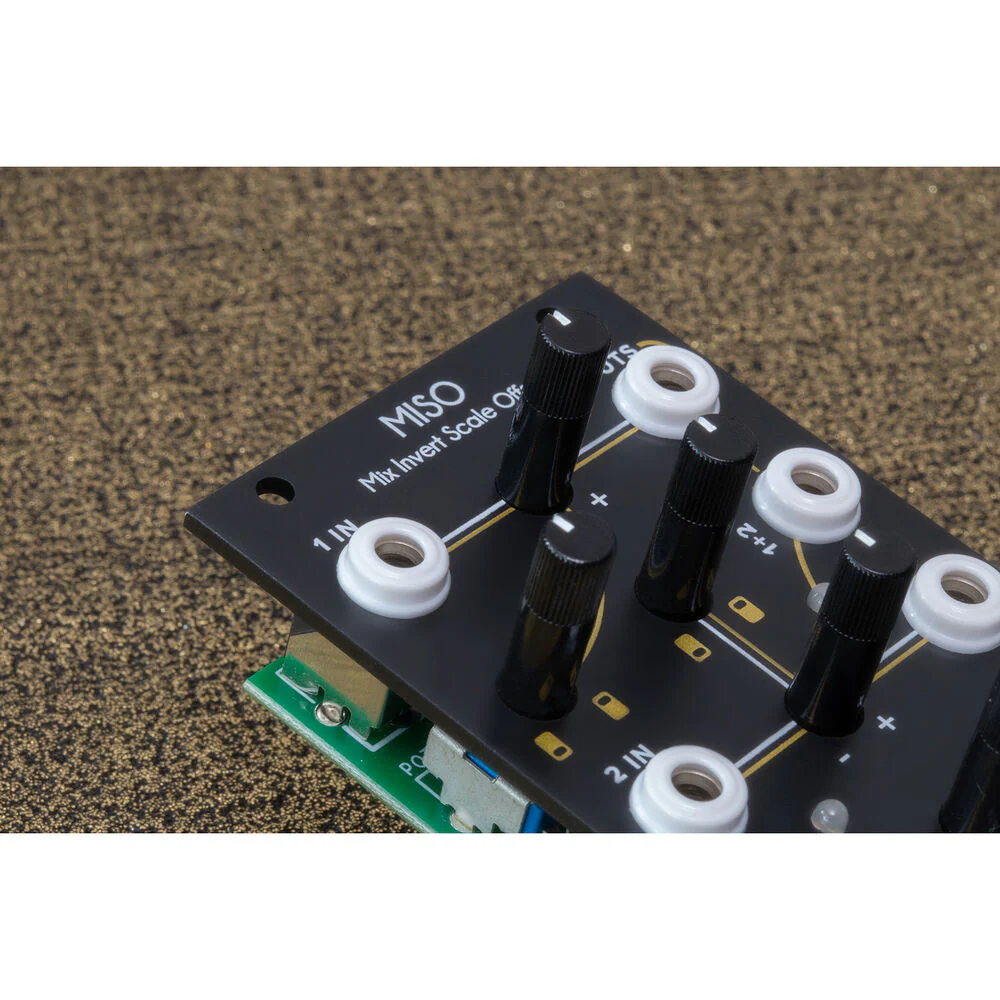

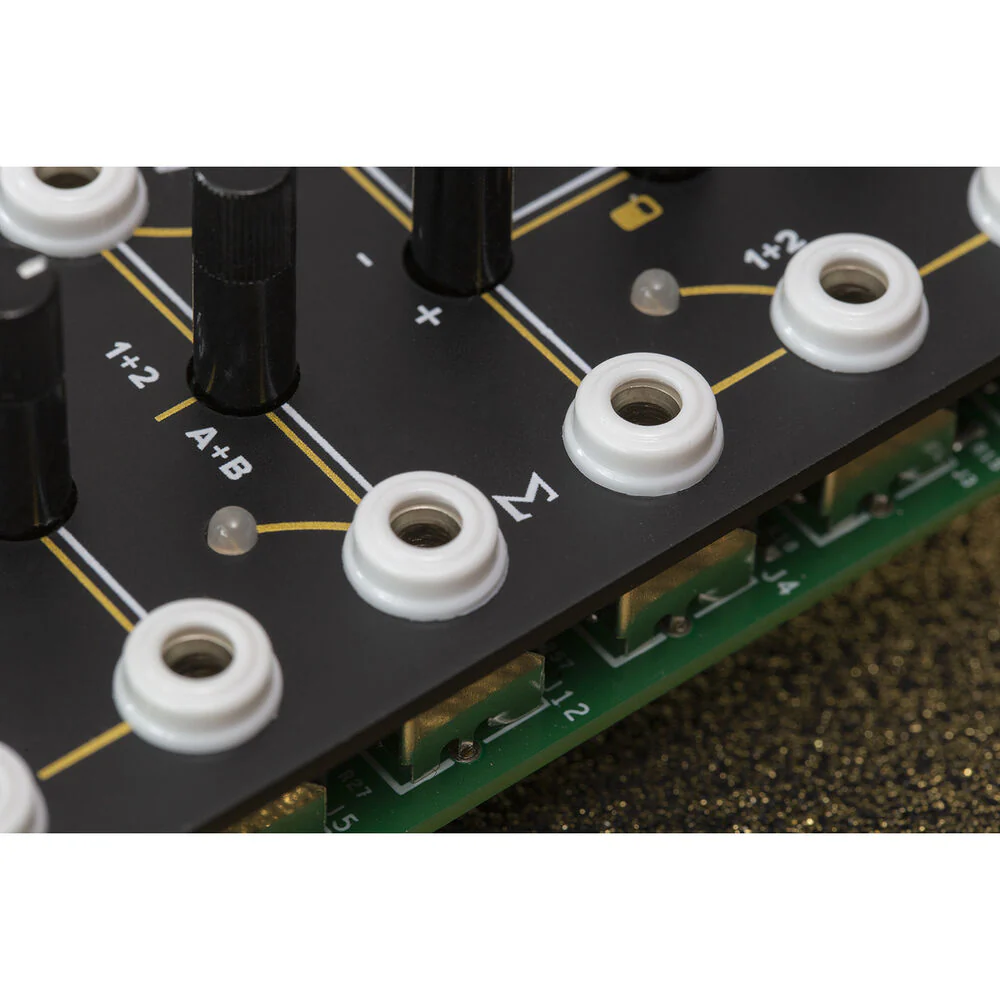

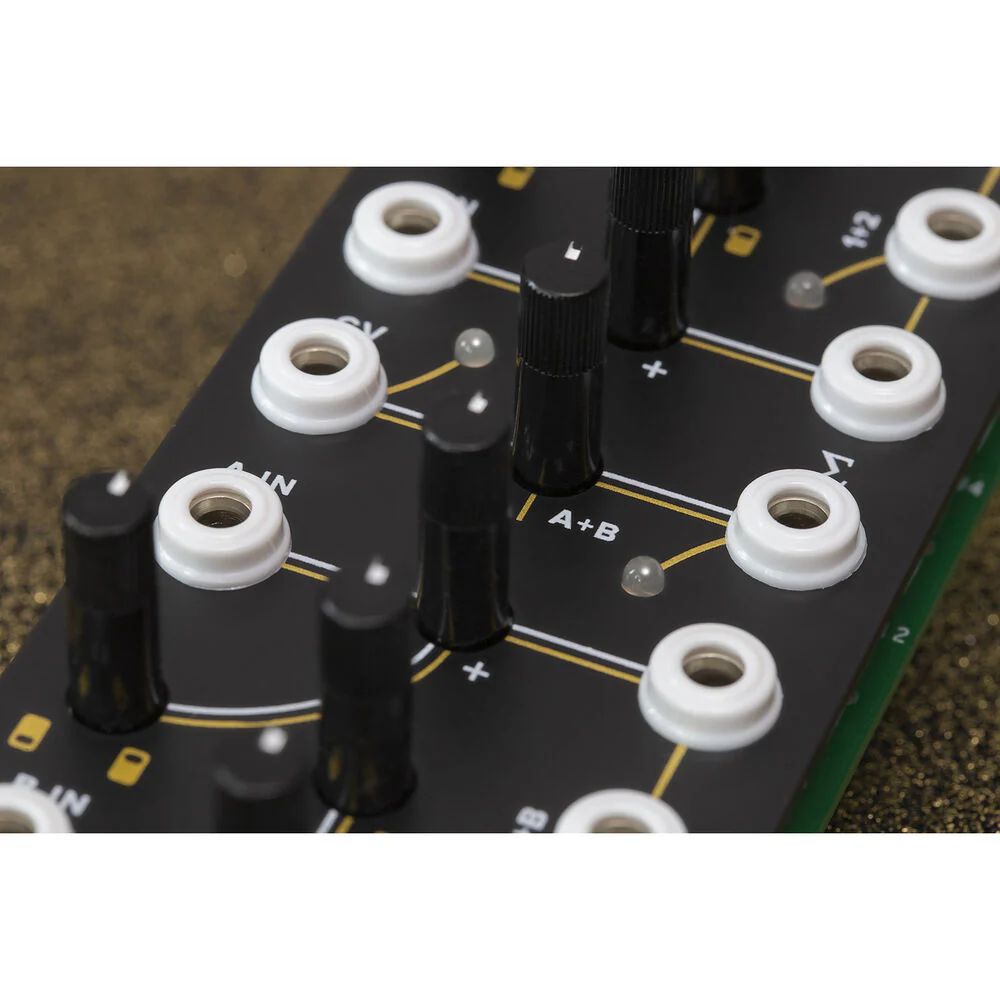

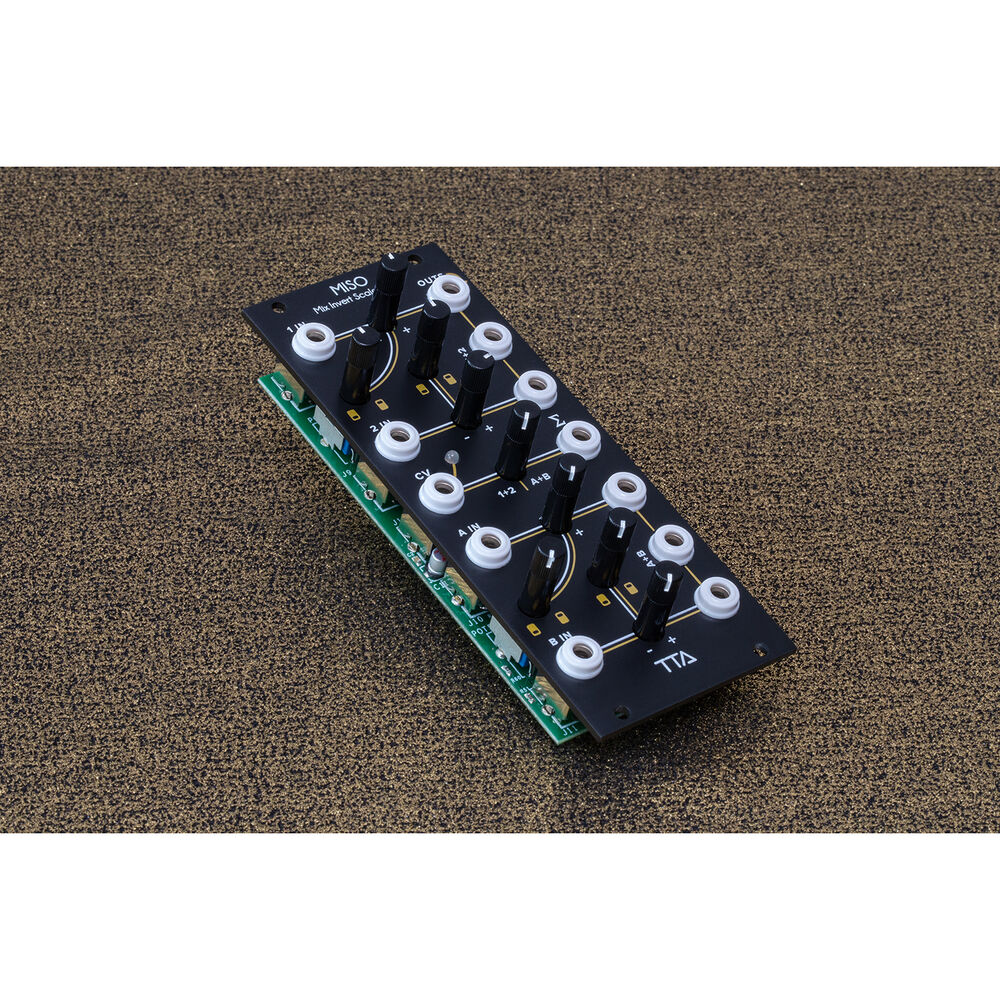

TipTop Audio MISO Multipurpose Utility Eurorack Module (10 HP, Black)
TipTop Audio MISO BK Overview
Mix, invert, scale, and offset audio, control voltage, trigger, and gate signals with the black Tiptop Audio MISO, a multipurpose utility Eurorack module that combines audio mixing and multiple CV tools into one module for making complex CV shapes at the output stage. The name comes from the four main functions available: Mix, Invert, Scale, and Offset.
Each of MISO's two sections have two inputs that can be used to mix signals, invert polarity/shape, scale magnitude, and offset voltage. Each function can be used independently or simultaneously with the total shape summed to the mix output. Additionally, a third section provides an accurate, smooth, and linear voltage-controlled crossfader that mixes equally between the outputs of the top and the bottom MISO sections. Feed the MISO LFOs, envelopes, and sequences to create new shapes, and then crossfade them manually or with CV using the center section for even further complexity of shapes and animation of control signals.
- Mix: Mix and sum signals
- Invert: Invert signal while performing gain
- Scale: Gain for signal
- Offset: Adds a static DC voltage to signal

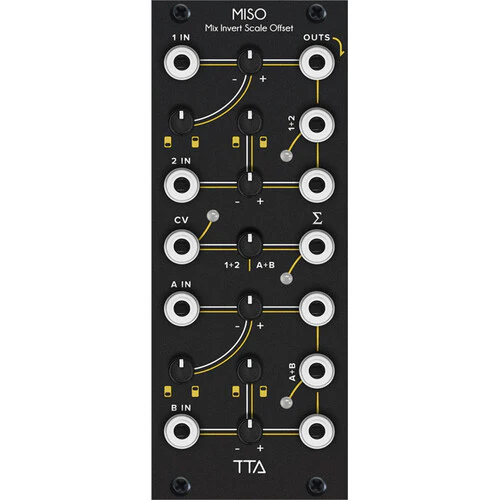

- Two MISO Sections (Top: A+B, Bottom: 1+2)
- Voltage-controlled crossfader (center)
- Output voltage range: ±10V
- Crossfade CV voltage range: ±10V
- Max offset: ±10V
- 10 HP Eurorack format module
- Maximum Depth: 1.7" (42mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 55mA, -12V: 55mA
In the Box
- TipTop Audio MISO Multipurpose Utility Eurorack Module (10 HP, Black)
- Limited 1-Year Manufacturer Warranty
TipTop Audio MISO BK Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
5x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
7x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm TS CV/Gate/Trigger Input
7x 1/8" / 3.5 mm TS CV/Gate/Trigger Output |
| Patch Points |
5x 1/8" / 3.5 mm TS Input
7x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
55 mA on +12 V Rail
55 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
5x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
7x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm TS CV/Gate/Trigger Input
7x 1/8" / 3.5 mm TS CV/Gate/Trigger Output |
| Control Voltage Level |
CV In/Out: ±10 V
|
| Patch Points |
5x 1/8" / 3.5 mm TS Input
7x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
55 mA on +12 V Rail
55 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.355 lb
|
| Box Dimensions (LxWxH) |
6.4 x 3.1 x 2.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
