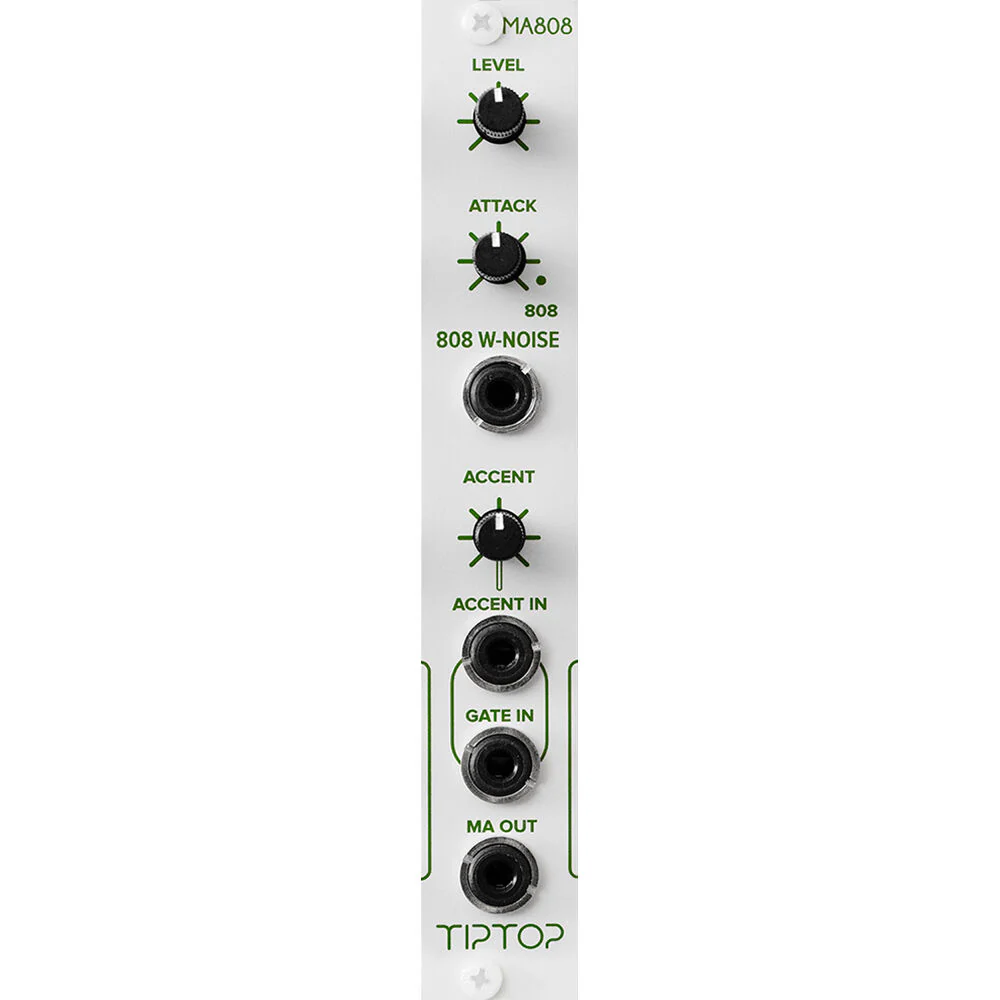

TipTop Audio MA808 Maracas Eurorack Module (4 HP)
HomeStore

TipTop Audio MA808 Maracas Eurorack Module (4 HP)

TipTop Audio MA808 Maracas Eurorack Module (4 HP)

TipTop Audio MA808 Overview

Turn your modular into a self-contained music machine with the Tiptop Audio MA808, a Eurorack module featuring the original 808 analog maracas drum voice as well as a white noise generator. The MA808 is an exact reproduction of the original circuit, which sounds like a fresh machine coming off the assembly line back in the '80s.

The module features an attack knob that turns the sound from a sharp edged hi-hat and up to a slow rise exponential attack maracas sound (dot on the scale indicates the original 808 set position). The MA808 also provides the continuous analog white noise generator of the 808 machine: a full spectrum of harmonics ideal for use as a starting point for patching your own drum sound or for general use of white noise. The module ships with a ribbon power cable.

At a Glance
  • Fluffy, harmonically rich presence that greatly enhances the dynamics of hi-hat sounds in the groove
  • Attack control knob turns the sound from a sharp edged hi-hat to a slow-rise exponential attack Maracas sound (dot on the scale indicates the original 808 set position)
  • Continuous analog white noise generator for full spectrum harmonics. Great for use as a starting point for patching your own drum sound or for general use of white noise
  • The MA808 is an exact reproduction of the original circuit which sound like a fresh machine coming off the assembly line back in the '80s
  • Compatible with all the other Tiptop drums in this series
  • Includes a hot modular level output gain stage
  • Dual input pulse-shaper circuit allows you to trigger the MA808 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source
Eurorack Ready
  • 4 HP Eurorack format module
  • Maximum depth: 0.6" (14mm)
  • Includes power ribbon cable with Eurorack power headers
  • Power consumption: +12V: 16mA, -12V: 14 mA

In the Box

  • TipTop Audio MA808 Maracas Eurorack Module (4 HP)
  • Ribbon Power Cable
  • Limited 1-Year Manufacturer Warranty

    TipTop Audio MA808 Specs

    Key Specs
    Sound Generation
    Analog
    Audio I/O
    2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm TS Gate/Trigger Input
    Patch Points
    2x 1/8" / 3.5 mm TS Input
    2x 1/8" / 3.5 mm TS Output
    Eurorack Current Consumption
    16 mA on +12 V Rail
    14 mA on -12 V Rail
    Horizontal Pitch
    4 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Expression Controls
    No
    Number of Pads
    No
    Built-In Speaker
    No
    Synthesis
    Oscillators
    1x Fixed (Noise)
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm TS Gate/Trigger Input
    Patch Points
    2x 1/8" / 3.5 mm TS Input
    2x 1/8" / 3.5 mm TS Output
    Sync I/O
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    16 mA on +12 V Rail
    14 mA on -12 V Rail
    Physical
    Horizontal Pitch
    4 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.2 lb
    Box Dimensions (LxWxH)
    6.3 x 2.4 x 1.7"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
