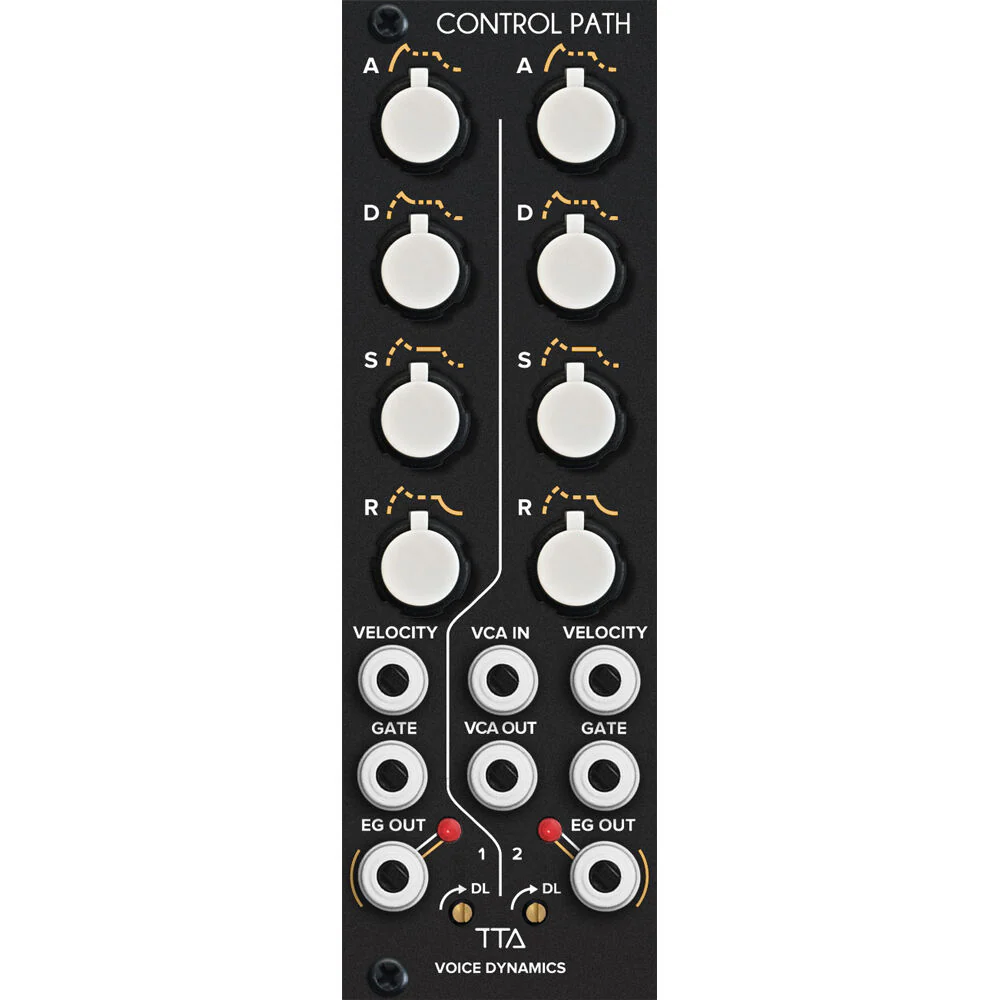

TipTop Audio Control Path Voice Dynamics Eurorack Module (8 HP)
TipTop Audio CNTPATH Overview
Designed to help build full a synthesizer voice quickly and easily, the Tiptop Audio Control Path, an all-in-one voice dynamics module with two analog ADSR envelope generators with velocity CV and a single VCA, in Eurorack format.
The left envelope is designed to control a sound modification circuit like a filter, while the right envelope is dedicated to the end-of-the-voice VCA, which controls the volume when a key is pressed on a keyboard or a note is triggered from a sequencer. Front-panel delay trimmers are used to compensate for any mismatch between incoming gate signal and velocity CV timings. The module includes a ribbon power cable.
- All-in-one voice dynamics module
- Two analog envelopes with velocity CV based on the classic OBX design
- One VCA (SSI2164 circuit)
- Left envelope is designed to control a sound modification circuit such as a filter
- Right envelope controls the voice VCA
- Velocity control is provided for each envelope
- Front-panel trimmers are used to compensate any mismatch between incoming gate signal and velocity CV timings
- 8 HP Eurorack format module
- Maximum depth: 1.5" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 50mA, -12V: 55mA
Items Included
- TipTop Audio Control Path Voice Dynamics Eurorack Module (8 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
TipTop Audio CNTPATH Specs
| Voltage |
Envelope Generator (EG): 0 to 5 V
Velocity CV In: 0 to 5 V Gate Input: 3 V Minimum VCA Input: 10 Vp.p Typical |
| Power |
+12V: 50 mA
-12V: 55 mA |
| Dimensions |
8 HP
Depth: 1.5" / 40 mm |
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.445 lb
|
| Box Dimensions (LxWxH) |
5.5 x 3.3 x 2.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
