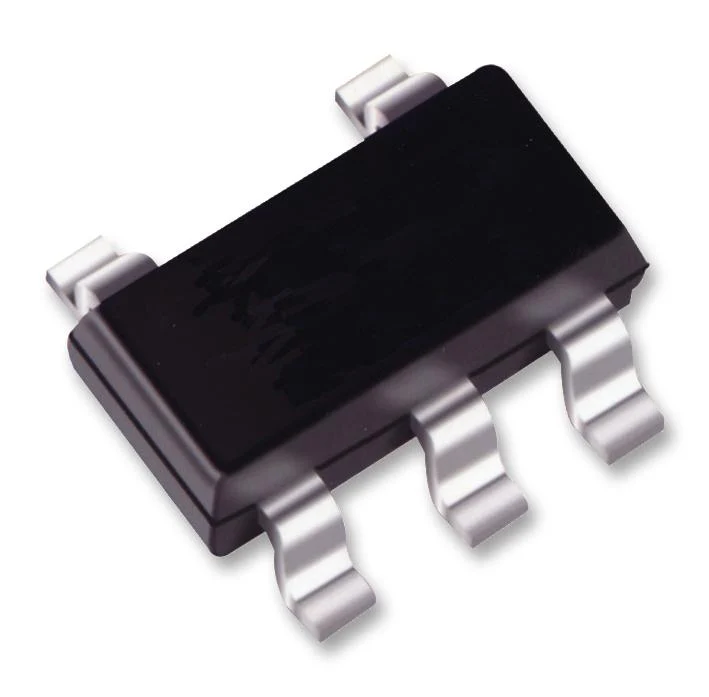

Texas Instruments TPS2051BDBVR Power Distribution Switch Current Limited High Side Active 1 Output 5.5V 1A SOT-23-5
Texas Instruments TPS2051BDBVR Power Distribution Switch Current Limited High Side Active 1 Output 5.5V 1A SOT-23-5
The TPS2051BDBVR is a Single Current Limited Power Distribution Switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mR N-channel MOSFET power switches for power-distribution systems that require multiple power switches. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components. When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant-current mode, pulling the over-current logic output low. When continuous heavy overloads and short-circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage.
- 70mR High-side MOSFET
- 500mA Continuous current
- Thermal and short-circuit protection
- Accurate current limit (0.75A minimum, 1.25A maximum)
- 2.7 to 5.5V Operating range
- 0.6ms Typical rise time
- Under-voltage lockout
- Deglitched fault report (OC)
- No OC glitch during power up
- 1µA Maximum standby supply current
- Green product and no Sb/Br
Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS2051BDBVR |
| Quantity | Each (Supplied on Cut Tape) |
