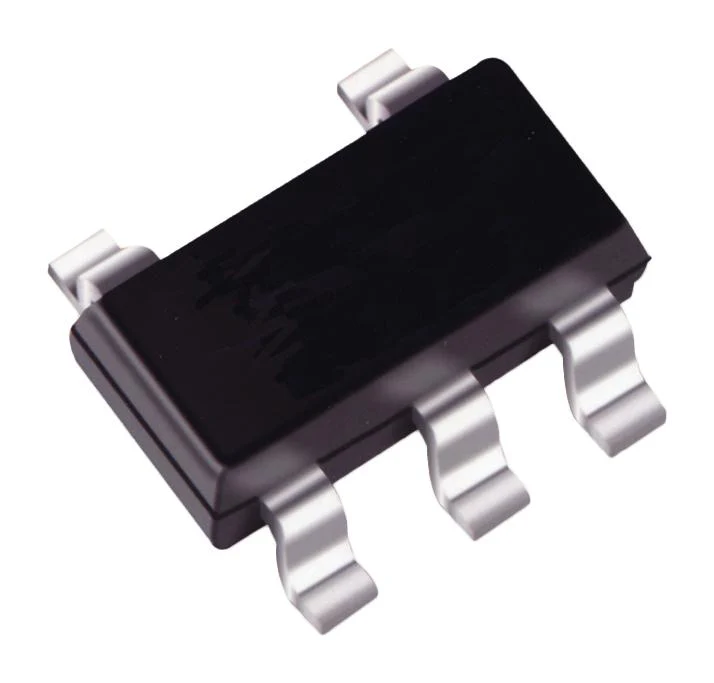

TEXAS INSTRUMENTS LP2985A-50DBVR Fixed LDO Voltage Regulator, 2.2 V to 16 V, 280 mV Dropout, 5 V/150 mA out, SOT-23-5
TEXAS INSTRUMENTS LP2985A-50DBVR Fixed LDO Voltage Regulator, 2.2 V to 16 V, 280 mV Dropout, 5 V/150 mA out, SOT-23-5
Product Overview
The LP2985A-50DBVR is a 5V fixed output low-noise low-dropout (LDO) Linear Regulator with an output tolerance of 1% and is capable of delivering 150mA continuous load current. Standard regulator features such as overcurrent and overtemperature protection are included. A PNP pass element allows a typical dropout of 280mV at 150mA load current and 7mV at 1mA load. The use of a vertical PNP process allows for quiescent currents that are considerably lower than those associated with traditional lateral PNP regulators.
- Low quiescent current - 850?A at full load at 150mA
- 0.01?A Shutdown current
- Low noise - 30?Vrms with 10nF bypass capacitor
- Stable with low-ESR capacitors including ceramic
- Overcurrent and thermal protection
- High peak-current capability
- ESD protection exceeds JESD 22 - 2000V Human-body model (A114-A), 200V Machine model (A115-A)
Applications
Portable Devices, Consumer Electronics, Audio, Power Management
Product details
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP2985A-50DBVR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
