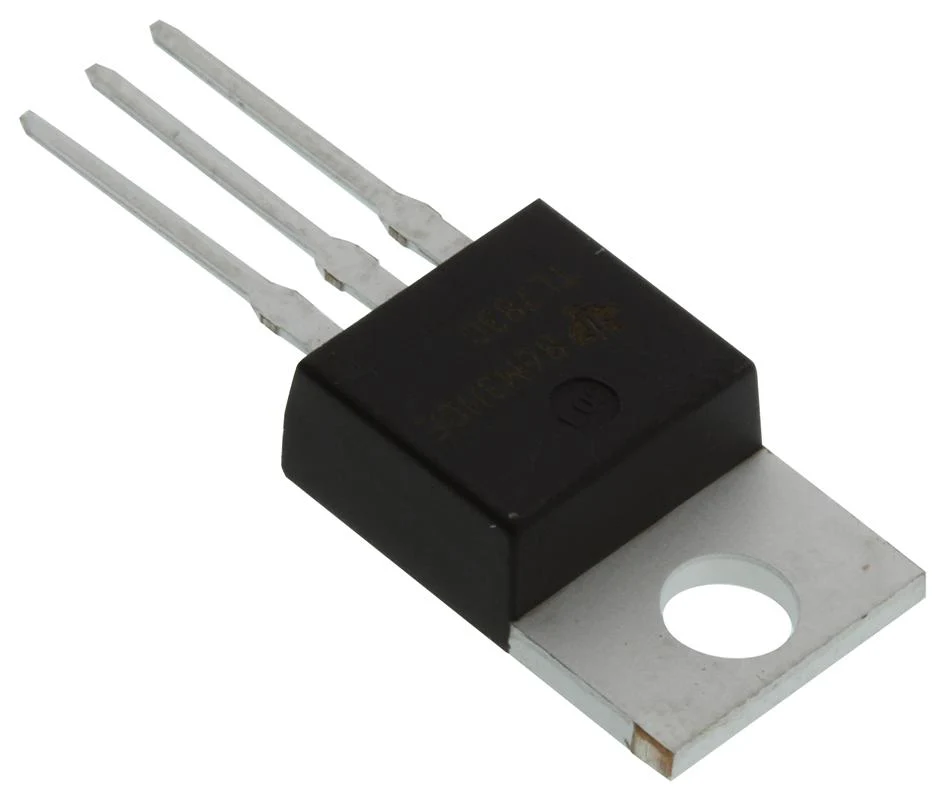

Texas Instruments LM2940CT-15/NOPB LM2940CT-15/NOPB 1A 26V High-PSRR Low Dropout Voltage Regulator

The LM2940CT-15/NOPB positive voltage regulators feature the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V.

• Input Voltage Range = 6V to 26V
• Dropout Voltage Typically 0.5V at I out = 1A
• Output Current in Excess of 1A
• Output voltage trimmed before assembly
• Reverse battery protection
• Internal short circuit current limit
• Mirror image insertion protection

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM2940CT-15/NOPB
Quantity	Each
Product Change Notice EN
