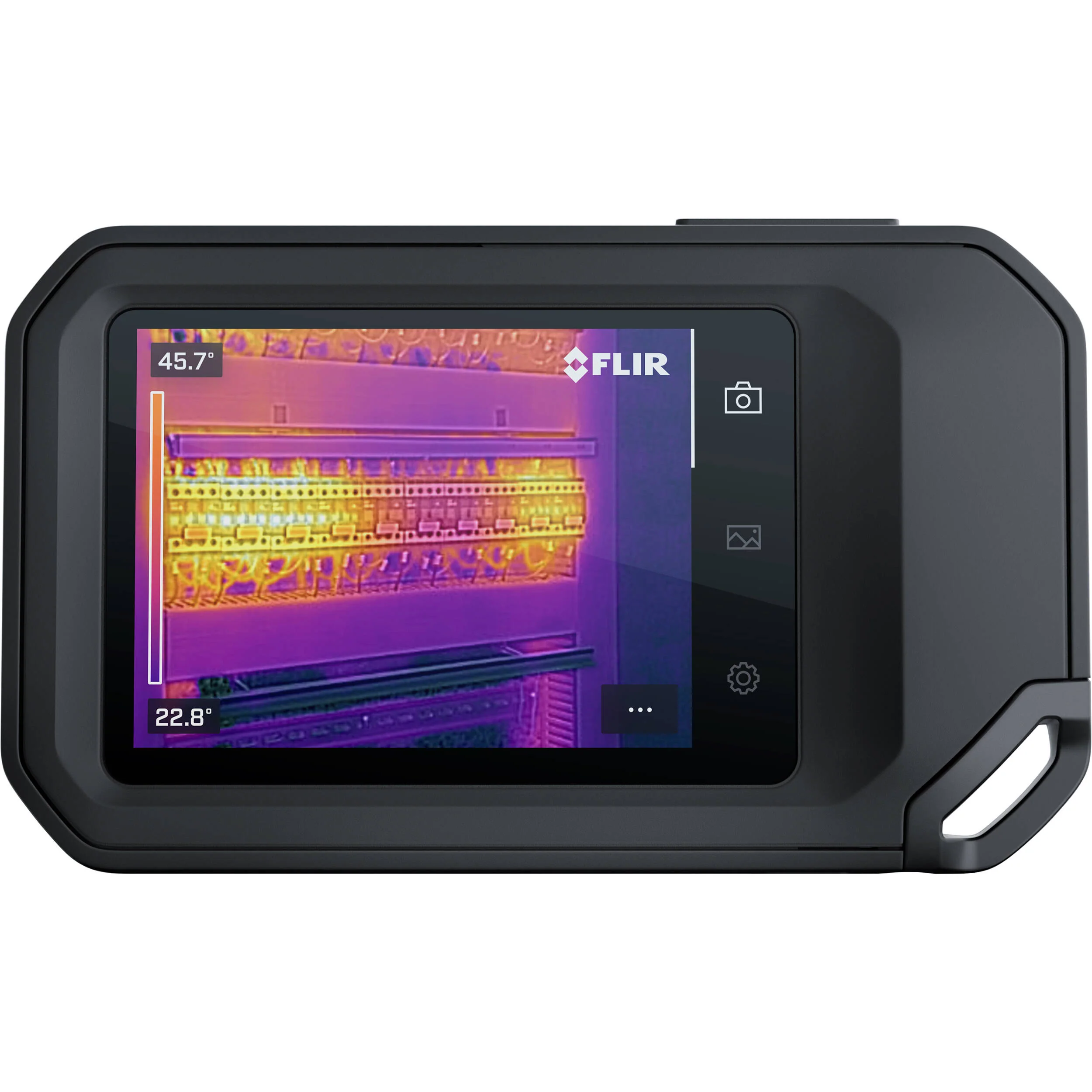

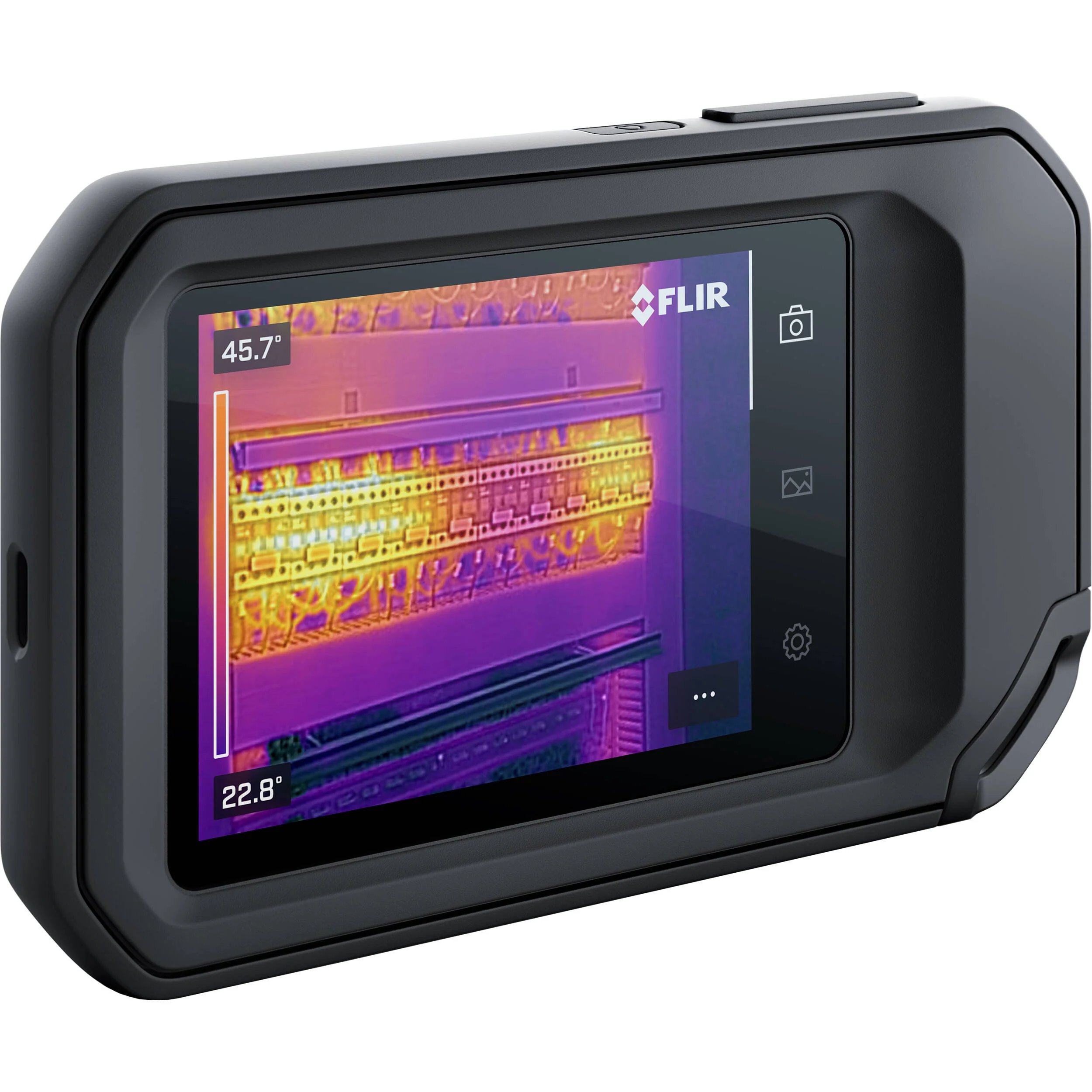

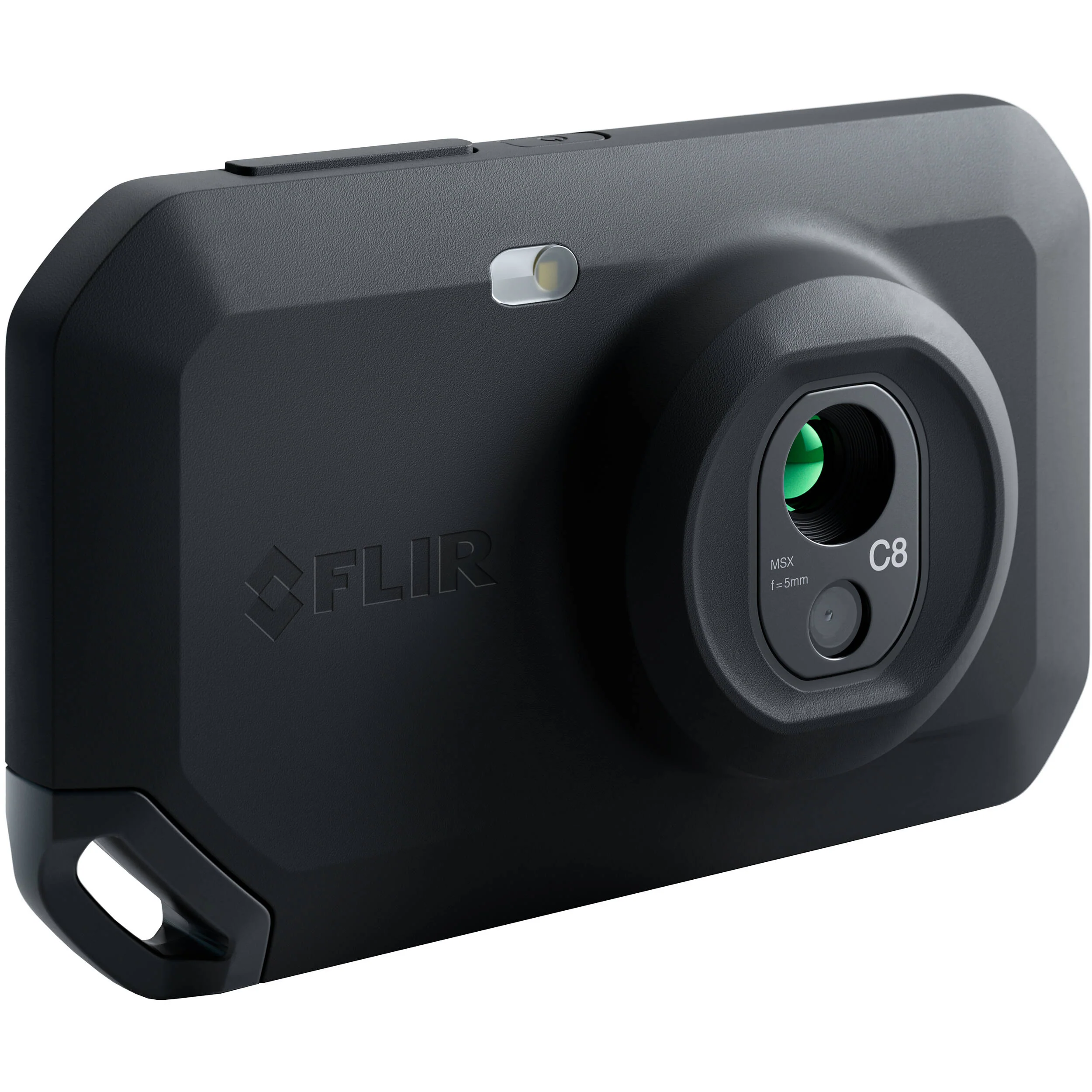

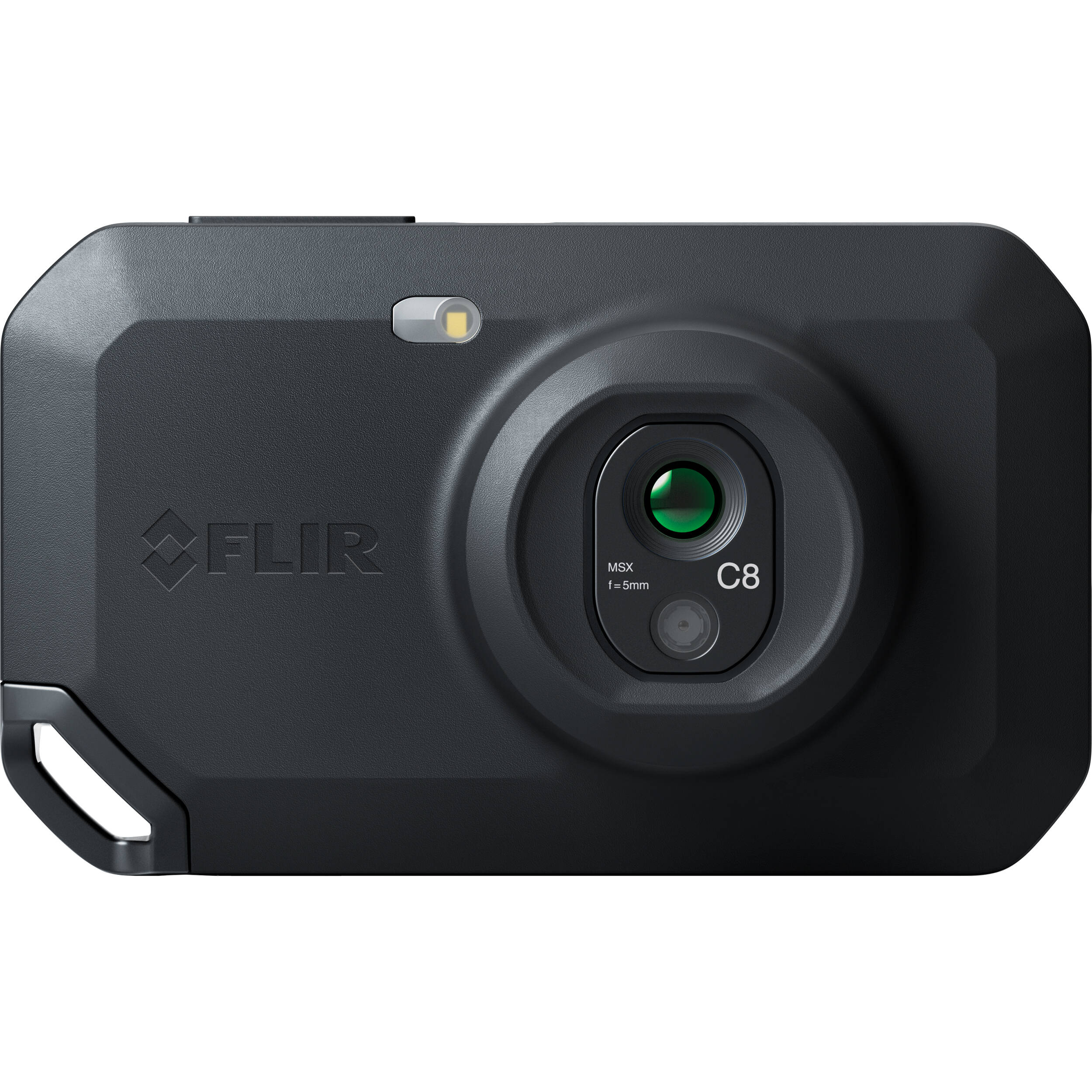

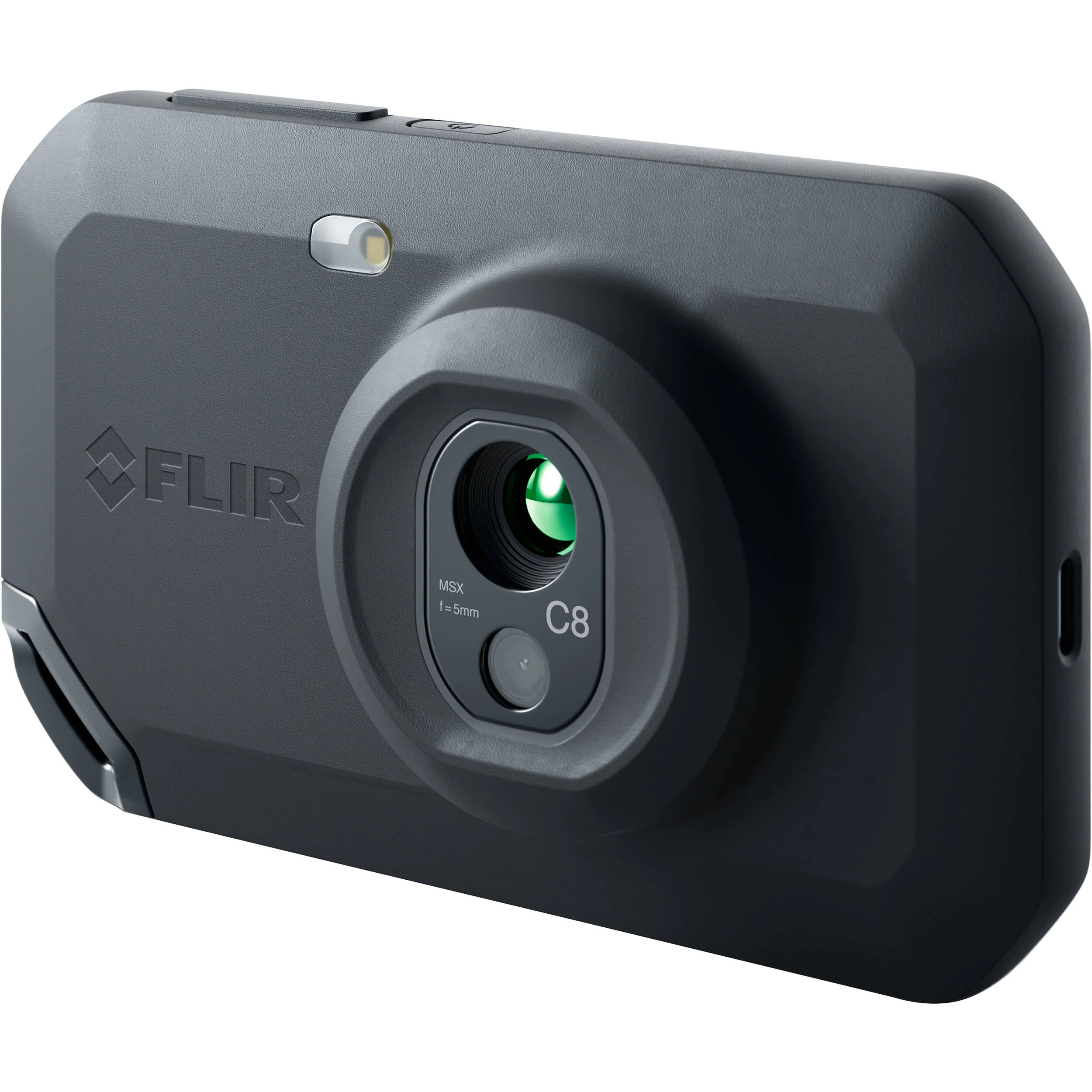

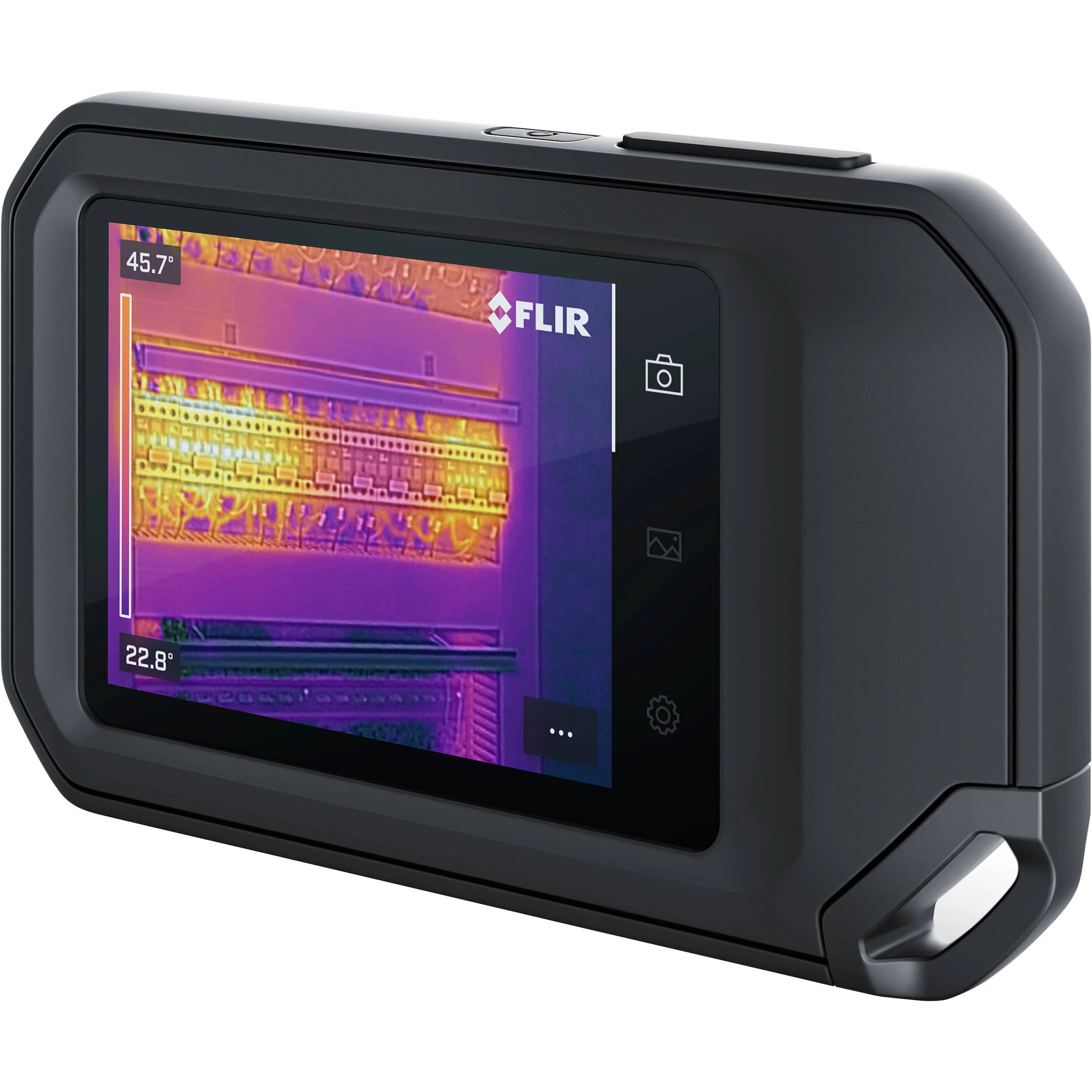

Teledyne Flir C8 Compact Thermal Camera (320 x 240)
Teledyne Flir C8 Overview
The C8 Compact Thermal Camera from Teledyne FLIR is about the size of a smartphone, and it is capable of sophisticated work in electrical and mechanical maintenance, building diagnostics and restoration, electric vehicle inspection, and more. The camera provides an IR resolution of 320 x 240 pixels, and the thermal detector is accurate within 2% in temperature measurements up to 842?F and can generate an image less than 16 inches away. Images are displayed on a 3.5" 640 x 480 color LCD touchscreen and data can be transferred to a Mac or PC with the included USB-C Cable. Two hours' charge time will yield three hours of runtime.
- Pixel size: 12?
- Thermal sensitivity (NETD): <50mK at 86?
- Spatial resolution: 2 MRAD per pixel
- Spectral range: 7.5-13?
Items Included
- Teledyne Flir C8 Compact Thermal Camera (320 x 240)
- Wrist Lanyard
- USB-C Cable
- Carrying Pouch
- Limited 2-Year Manufacturer Warranty
- Limited 10-Year Manufacturer Warranty (on Sensor)
Additional Resources
No additional resources available
Teledyne Flir C8 Specs
| Panel Type |
LCD
|
| Display Size |
3.5"
|
| Native Resolution |
640 x 480
|
| Touchscreen |
Yes
|
| Viewing Angle (H x V) |
35 x 27?
|
| USB I/O |
1 x USB-C Female Input/Output
|
| Wireless |
Wi-Fi
|
| Battery Chemistry |
Lithium-Ion
|
| Recharge Time |
2 Hour
|
| Maximum Battery Life |
3 Hours
|
| Color |
Black
|
| Environmental Resistance |
Dust/Water-Resistant (IP54)
|
| Impact Resistance |
Impact-Resistant to 6.6' / 2.0 m (Unrated)
|
| Certifications |
REACH, RoHS, WEEE
|
| Operating Conditions |
14 to 122?F / -10 to 50?C at 0 to 95% Humidity
|
| Storage Conditions |
-40 to 158?F / -40 to 70?C
|
| Dimensions |
5.4 x 3.3 x 0.9" / 137.2 x 83.8 x 22.9 mm
|
| Weight |
6.7 oz / 190 g
|
| Package Weight |
1.275 lb
|
| Box Dimensions (LxWxH) |
6.4 x 5.1 x 3.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
