Teledyne Flir Blackfly S GigE 1.6MP Black & White Camera (CS Mount)

Teledyne Flir Blackfly S GigE 1.6MP Black & White Camera (CS Mount)

Teledyne Flir Blackfly S GigE 1.6MP Overview

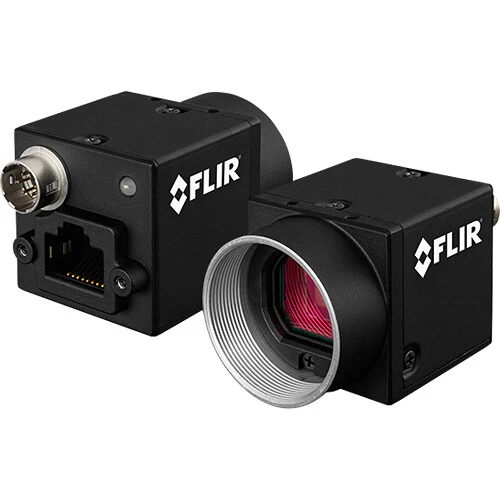

The Blackfly S GigE 1.6MP Black & White Camera from Teledyne Flir captures up to 1440 x 1080 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 78 fps and 137 fps with turbodrive and lossless compression. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A CS lens mount provides support for a wide variety of varifocal and fixed focal length lenses.

Features include a Sony IMX273 1/2.9" 2MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.

Internal Camera Features
  • Acquisition modes: Continuous, Single Frame, Multi Frame
  • Exposure control: hardware trigger, programmable via camera API, automatic
  • Exposure range: 20 ?s to 30 seconds
  • Flash memory: 6MB non-volatile memory
  • Gain control: manual, automatic (AGC)
  • Image buffer: 240MB
  • Image processing: gamma, lookup table, and sharpness
  • Partial image modes: pixel binning, decimation, ROI
  • User sets: two user configuration sets for custom camera settings
Performance
  • Absolute sensitivity threshold (y): 4.57
  • Dynamic range: 71.20 dB
  • Gain range: 0 to 47 dB
  • Quantum efficiency mono: 63 at 530nm
  • Saturation capacity (e-): 10499
  • Temporal dark noise (read noise): 2.26

Items Included

  • Teledyne Flir Blackfly S GigE 1.6MP Black & White Camera (CS Mount)
  • Limited 3-Year Manufacturer Warranty

Not Included

Additional Resources

Guides & Manuals

    Teledyne Flir Blackfly S GigE 1.6MP Specs

    Imaging
    Image Sensor
    1/2.9"-Type CMOS
    Sensor Resolution
    Effective: 1.6 Megapixel
    Lens Mount
    CS
    Recording
    Supports Color Recording
    No
    Video Output
    RJ45
    1440 x 1080
    Partial Image Processing
    Pixel Binning/Decimation/Region of Interest (ROI)
    Exposure Control
    Shutter Type
    Electronic Global Shutter
    Interface
    Video I/O
    1x RJ45 LAN Output
    Power I/O
    1x Hirose 6-Pin Input
    Internal Storage
    No
    Media/Memory Card Slot
    No
    Wireless
    No
    Mobile App Compatible
    No
    Power
    Voltage
    8.0 to 24.0 VDC
    Power Consumption
    3 W
    Environmental
    Operating Conditions
    32 to 122?F / 0 to 50?C at 20 to 80% Humidity
    General
    Certifications
    CE, FCC, Kcc, RoHS
    Machine Vision Standard
    GigE Vision v1.2
    Dimensions
    1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
    Weight
    1.3 oz / 36 g
