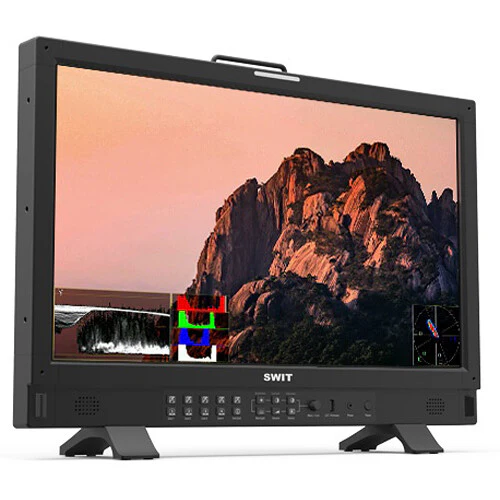

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)
HomeStore

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)

SWIT BM-H245 Overview

  • 1Description
  • 2Features at a Glance
  • 3Control
  • 4Video Assist Functions

Direct and control the image quality of your next film or broadcast production with the 23.8" Quad-Link 4K Production Monitor from SWIT, thanks to its 1920 x 1080 QLED panel display with video assist and multiview functions. The screen has a 178° viewing angle, a 1000:1 contrast ratio, and 400 cd/m² of brightness. An HDMI 2.0 input and SDI inputs and outputs can support up to 4K video in pixel-to-pixel zoom, single-link, quad-link, and mixed-input multiview. One input source can be copied to four windows to display different HDR/SDR and color gamuts simultaneously for easy comparison.

Payload ID identifies the input video's HDR/SDR EOTFs, color gamut, input range, color space, and color depth automatically. The monitor supports the upload of 3D LUTs via a USB Type-A port for consistent color correction. Other video assist functions like focus assist, vectors, and eye pattern increase the efficiency of your image quality observation. Control over the monitor can be achieved via the RS-485 input with IP control or using the front-panel buttons. Both AC and DC inputs or the included V-mount battery plate can provide power to the device. An included power cable and monitor stand make setup on your next soundstage quick and efficient.

Features at a Glance
  • VICO 1.97 A Class eye protection reduces eye fatigue by decreasing blue values and balancing the RGB peak
  • Single-link, quad-link, and mixed-input multiview
  • Supports input video Payload ID to automatically set HDR/SDR EOTFs, color gamut, input range, color space, and color depth
  • 3D LUT auto calibration with separately available probes
  • USB Type-A port for firmware updates and custom 3D LUT uploading
  • Maximum 16-channel embedded audio meters display; select any two to monitor via speaker
  • Supports Lissajous figures and 5.1 and 7.1 surround sound patterns
  • Includes power cable and monitor stand
    • Control
  • Buttons on front panel to adjust brightness, contrast, saturation, backlight, and volume
  • Five function keys for custom shortcuts; up to four user-specific presets
  • Webserver IP remote control via RJ45 connection and RS-485 protocol
    • Video Assist Functions
  • Blue only
  • Eye pattern
  • False color
  • Focus assist
  • Histogram
  • Markers
  • Vectors
  • Zebra

    • In the Box

    • SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)
    • V-Mount Battery Plate
    • 2 x Monitor Stand
    • Power Cable
      Table of Contents
      • Description
      • Features at a Glance
      • Control
      • Video Assist Functions

      SWIT BM-H245 Specs

      Display
      Panel Type Quantum Dot LCD
      Display Size 23.8" / 60.5 cm
      Screen Area 20.7 x 11.7" / 527 x 296.5 mm
      Resolution 1920 x 1080
      Aspect Ratio 16:9
      Viewing Angle Horizontal: 178°
      Vertical: 178°
      Touchscreen No
      Maximum Brightness 400 cd/m2
      Contrast Ratio 1000:1
      Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
      HDR Compatibility Dolby Vision, Hybrid Log Gamma
      Pixels Per Inch (ppi) 93 ppi
      Color Gamut 100% DCI-P3
      Image Controls Blue Only, False Color, Focus Assist, Histogram, Marker Color, Screen Markers, Waveform, Zebra
      Inputs / Outputs
      Video I/O 1 x BNC (12G-SDI) Input
      3 x BNC (3G-SDI) Input
      1 x HDMI 2.0 Input
      1 x BNC (12G-SDI) Loop Output
      1 x BNC (3G-SDI) Output
      Embedded Audio HDMI/SDI: 16-Channel
      Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
      Built-In Speaker 1
      Power I/O 1 x XLR 4-Pin (17 VDC) Input
      1 x IEC Input
      Other I/O 1 x RJ45 (RS-485) Input
      1 x RJ45 (GPI-Compatible Tally over RS-485) Input
      1 x RJ45 (LAN) Input
      1 x RJ45 (RS-485) Output
      Media/Memory Card Slot None
      Wi-Fi None
      Format Support
      Video Format SDI (10-Bit 4:2:2 YUV)
      DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
      DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
      UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
      1080p: 60/59.94/50/29.97/25/24/23.98
      1080i: 60/59.94/50
      1080PsF: 30/29.97/25/24/23.98
      720p: 60/59.94/50
      576i: 50
      480i: 59.94
      HDMI
      DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
      UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
      1080p: 60/59.94/50/30/29.97/25/24/23.98
      1080i: 60/59.94/50
      720p: 60/59.94/50
      Gamma Curve ARRI Log C, HDR-HLG, HDR-PQ, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3
      Power
      AC Input Power 100 to 240 VAC, 50 / 60 Hz
      DC Input Power 12 to 17 VDC
      Battery Type 1 x V-Mount
      Power Consumption 60 W
      Mounting
      Mounting None
      Environmental
      Operating Temperature 32 to 122°F / 0 to 50°C
      Operating Humidity 10 to 90%
      Storage Temperature 5 to 140°F / -15 to 60°C
      Storage Humidity 10 to 90%
      General
      Dimensions 22.9 x 15.4 x 2.9" / 580.9 x 392.3 x 73.6 mm
      Weight 14.8 lb / 6.7 kg
      Packaging Info
      Package Weight 22.825 lb
      Box Dimensions (LxWxH) 27 x 20 x 7.8"

      SWIT BM-H245 Reviews


      All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
      $4,347.63
      SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)—
      $4,347.63

      More Images

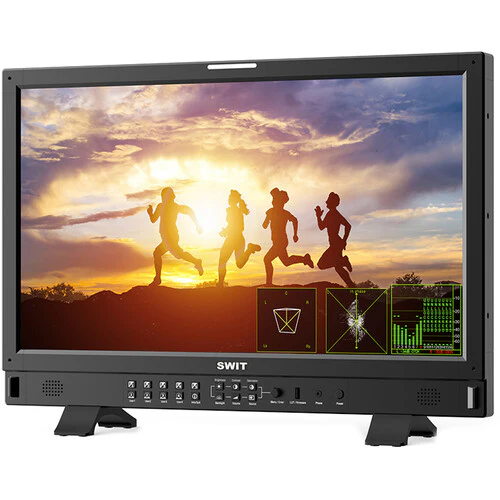

      SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount) - Image 2
