Speco Technologies HTI702TM Overview

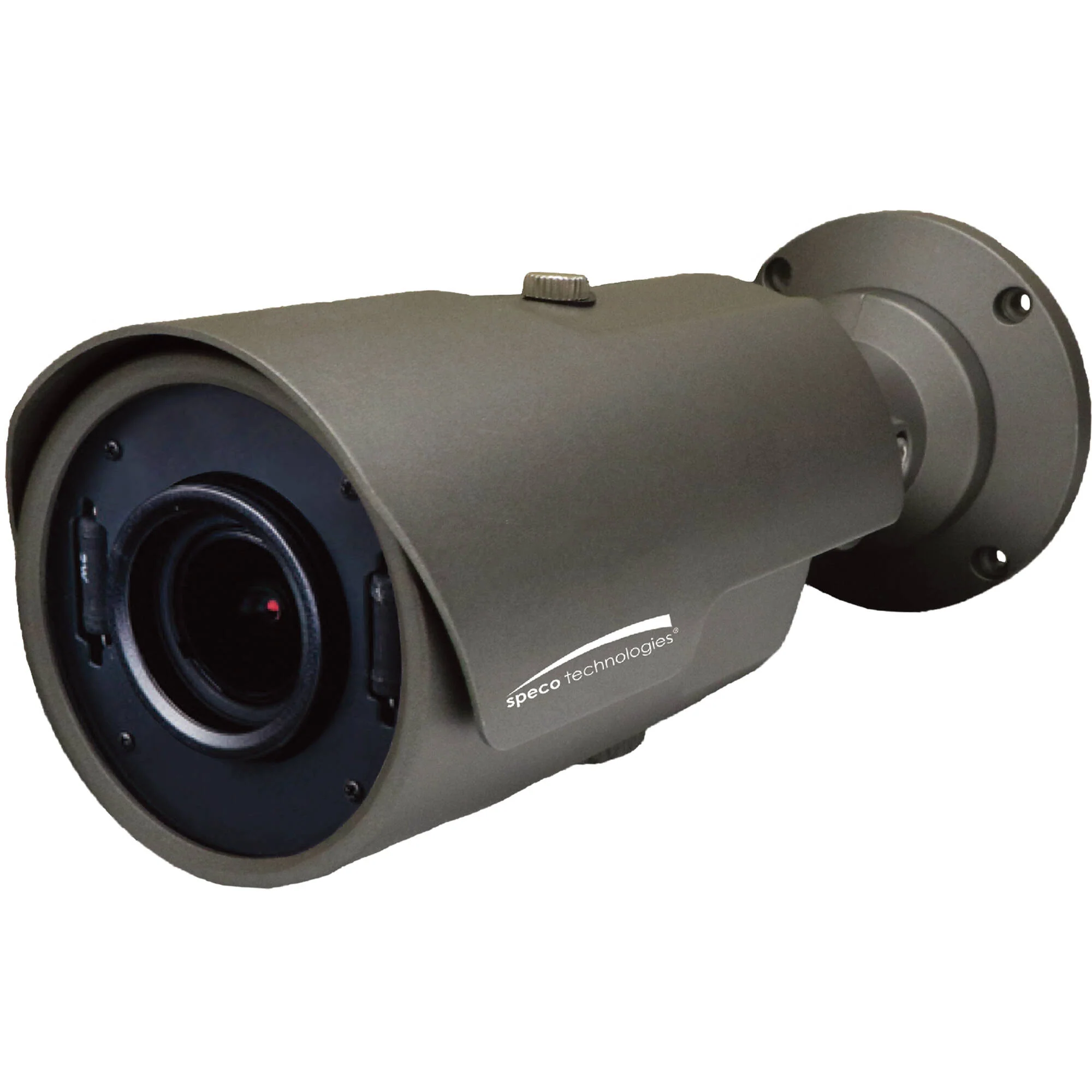

Monitor your surroundings with the dark gray Intensifier HTI702TM 2MP Outdoor HD-TVI Bullet Camera from Speco Technologies. This unit uses a 1/3" progressive scan CMOS sensor to transmit 1080p resolution video at 30 fps. The HTI702TM features a 5-50mm motorized varifocal lens and supports HD-TVI and CVBS signal outputs. An Up-the-Coax (UTC) connection allows for control of the camera via OSD.
This NDAA-compliant camera is housed in an IP67-rated enclosure for safe outdoor use. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
Items Included

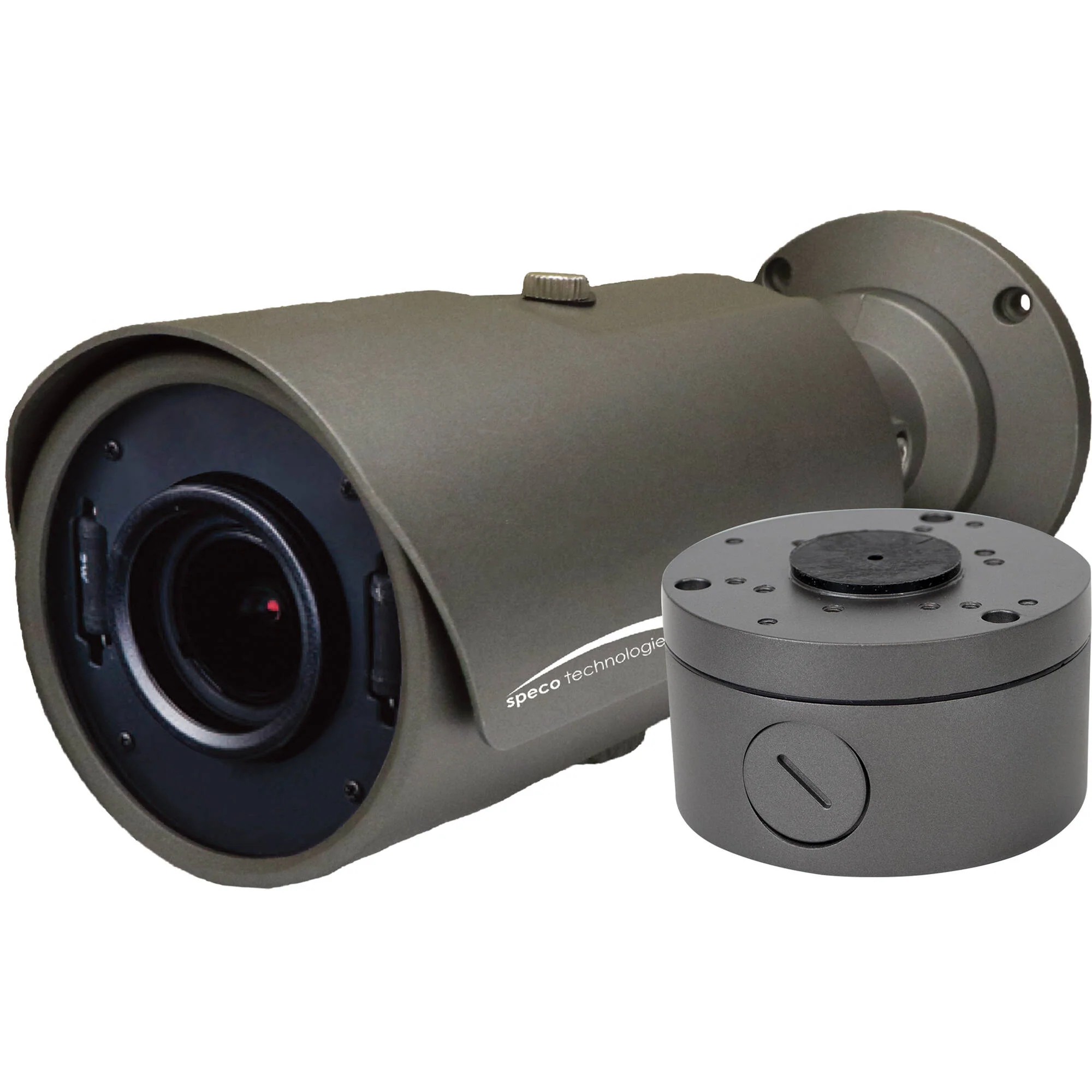

- Speco Technologies Intensifier HTI702TM 2MP Outdoor HD-TVI Bullet Camera with 5-50mm Lens & Heater
- Junction Box
- Limited 5-Year Manufacturer Warranty
Additional Resources
Speco Technologies HTI702TM Specs
| Image Sensor |
1/3"-Type CMOS
|
| Focal Length |
5 to 50mm
|
| Output Formats |
HD-TVI:
1920 x 1080 at 30 fps Composite: 960 x 480 |
| Video I/O |
2x BNC (Composite) Output
|
| Power I/O |
1x DC Input
|
| Number of Lenses |
1
|
| Image Sensor |
1/3"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| Day/Night |
Yes
|
| Shutter Speed |
1/30000 to 1/30 Second
|
| Minimum Illumination |
0.001 Lux
|
| Focal Length |
5 to 50mm
|
| Optical Zoom Ratio |
10x
|
| Output Formats |
HD-TVI:
1920 x 1080 at 30 fps Composite: 960 x 480 |
| Up-the-Coax Communication |
Yes
|
| Video I/O |
2x BNC (Composite) Output
|
| Built-In Speaker |
No
|
| Alarm I/O |
No
|
| Power I/O |
1x DC Input
|
| Power Consumption |
12 VDC at 600 mA with Heater
24 VAC at 450 mA with Heater |
| Operating Conditions |
-40 to 140°F / -40 to 60°C
|
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP67)
|
| Certifications |
FCC, RoHS, NDAA
|
| Dimensions (W x H x D) |
3.72 x 9.64" / 94.49 x 244.86 mm
|
| Weight |
2 lb / 907 g (Body Only)
|
| Package Weight |
2.925 lb
|
| Box Dimensions (LxWxH) |
13.7 x 5.5 x 5.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
