SOURIAU-SUNBANK / Eaton RC14M30K RC14M30K Circular Connector Contact Machined Souriau Trim Trio Socket Crimp 14 AWG 16
SOURIAU-SUNBANK / Eaton RC14M30K RC14M30K Circular Connector Contact Machined Souriau Trim Trio Socket Crimp 14 AWG 16

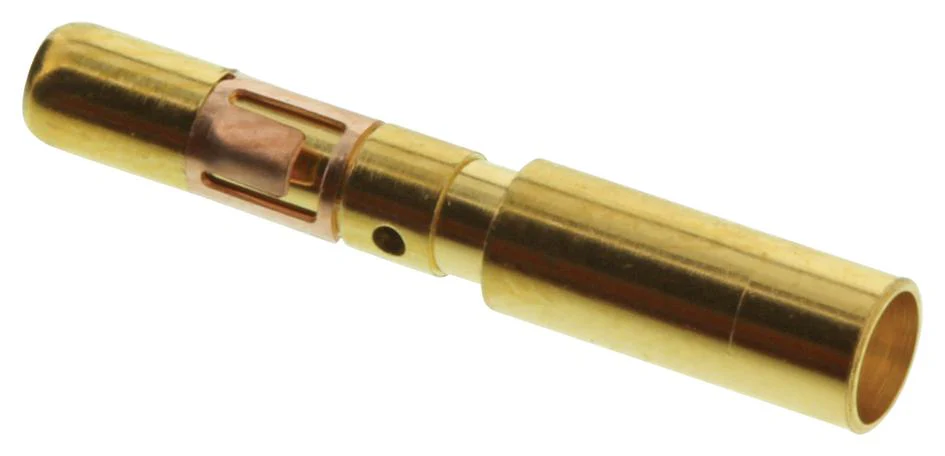

The RC14M30K is a Female RC Machined Crimp Contact, made of copper with 0.4µm gold-plated finish, high conductive copper alloy body. Available in #16 size, it accepts 16 to 14AWG wires. The RC machined crimp contact can be used in any contact position with UTS, UTO, VGE1, 838 and TRIM TRIO series circular connectors. The RC machined crimp contact is precision solid machined crimp snap-in pin and sockets for heavy duty top performance requirements. Springs on both contacts are made of spring-tempered, heat-treated, beryllium copper. The socket inner spring supplies high contact pressure to ensure low-resistance contact between pin and socket. The socket contact features closed entry to prevent probe damage.
- Low contact resistance
- Good contact retention
- Suitable for automatic crimping
- Machined crimp contact
- 15A Maximum current per contact according to NFF61030
- <=3mR Contact resistance
- 110N Minimum contact retention in body
- 3.5N Maximum individual insertion force
- 0.55N Minimum individual withdrawal force
Industrial
Other details
| Brand | SOURIAU-SUNBANK / EATON |
| Part Number | RC14M30K |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.80
Original: $2.68
-70%SOURIAU-SUNBANK / Eaton RC14M30K RC14M30K Circular Connector Contact Machined Souriau Trim Trio Socket Crimp 14 AWG 16—
$2.68
$0.80SOURIAU-SUNBANK / Eaton RC14M30K RC14M30K Circular Connector Contact Machined Souriau Trim Trio Socket Crimp 14 AWG 16
The RC14M30K is a Female RC Machined Crimp Contact, made of copper with 0.4µm gold-plated finish, high conductive copper alloy body. Available in #16 size, it accepts 16 to 14AWG wires. The RC machined crimp contact can be used in any contact position with UTS, UTO, VGE1, 838 and TRIM TRIO series circular connectors. The RC machined crimp contact is precision solid machined crimp snap-in pin and sockets for heavy duty top performance requirements. Springs on both contacts are made of spring-tempered, heat-treated, beryllium copper. The socket inner spring supplies high contact pressure to ensure low-resistance contact between pin and socket. The socket contact features closed entry to prevent probe damage.
- Low contact resistance
- Good contact retention
- Suitable for automatic crimping
- Machined crimp contact
- 15A Maximum current per contact according to NFF61030
- <=3mR Contact resistance
- 110N Minimum contact retention in body
- 3.5N Maximum individual insertion force
- 0.55N Minimum individual withdrawal force
Industrial
Other details
| Brand | SOURIAU-SUNBANK / EATON |
| Part Number | RC14M30K |
| Quantity | Each |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
