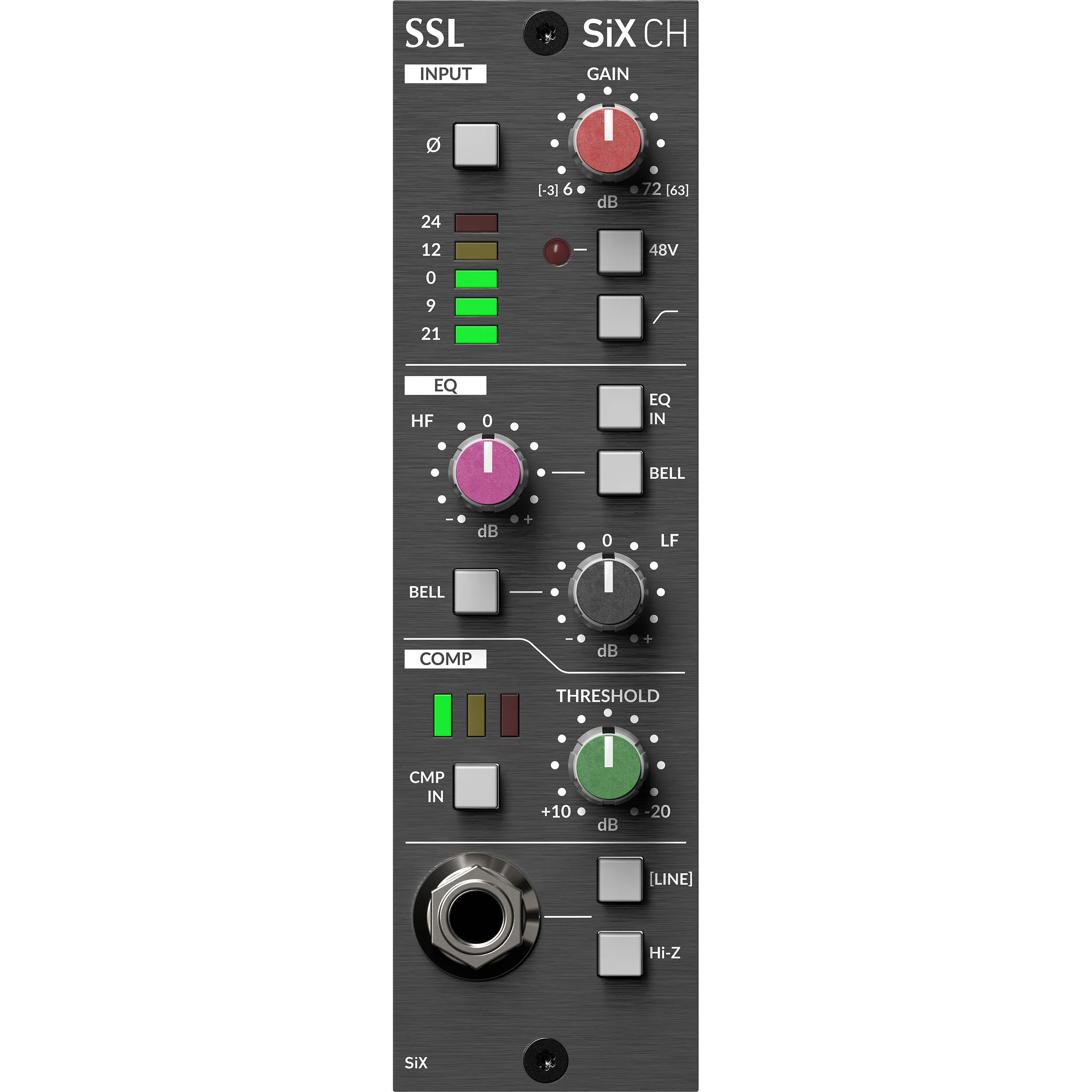

Solid State Logic SiX CH 500 Series Channel Strip
HomeStore

Solid State Logic SiX CH 500 Series Channel Strip

Solid State Logic SiX CH 500 Series Channel Strip

Solid State Logic 729736X1 Overview

  • 1Description
  • 2Simple and Effective
  • 3SuperAnalogue
  • 4SSL HF and LF EQ
  • 5Channel Compressor
  • 6TRS Line Input
  • 7Features at a Glance

Infused with technology from SSL's SiX console, the Solid State Logic SiX CH is a single-channel 500 Series channel strip that offers a premium gain stage, 2-band EQ, and a single-knob compressor for musicians and engineers at any level. Given its sonic versatility and modular form factor, the SiX CH is a stellar addition to home studio setups, mobile recording rigs, and racks in commercial facilities.

With up to +72 dB of gain available on the mic preamp, the SiX CH delivers bountiful boost for low-output ribbon and dynamic mics or even the quietest of sources. Of course, switchable 48V phantom power is provided for condenser mics. You can also keep the low-end power under control by activating the 75 Hz high-pass filter, which features a 12 dB/octave slope. Each band of the equalizer can be set to shelf or bell mode; different center frequencies are used for each mode to increase flexibility. The compressor utilizes variable threshold and automatic makeup gain to enable fast operation and consistent output level.

Simple and Effective
SiX CH is a single-width 500 Series channel strip using the SuperAnalogue channel processing features from SSL's SiX console including the mic pre, low- and high-frequency EQ, and the single-knob compressor.
SuperAnalogue
Using the same technology as SiX and large-format SSL consoles, SiX CH features a SuperAnalogue mic pre, offering wide gain range and ultralow noise. It's clean, fast, and punchy, an ideal preamplifier for any source material.
SSL HF and LF EQ
SiX CH EQ is a classic SSL-style EQ with a gentle, broad-stroke design and high and low shelving filters at 3.5 kHz and 60 Hz (±15 dB gain range). Each band can be independently switched between shelving and bell curves. The bell curves change the center frequencies to operate at 5 kHz and 200 Hz, giving greater versatility from the two controls.
Channel Compressor
A one-knob channel compressor has features that give powerful and versatile performance from its deceptively simple controls. It uses the tried-and-tested SSL feed-forward circuit design, program-dependent attack time, and automatic make-up gain to maintain signal level.
TRS Line Input
The front-facing TRS line input offers a convenient way to add instruments on the fly or use SiX CH as a feature-packed summing module. A 10-kilohm nominal line input impedance can be changed to 1 megohm via the Hi-Z switch. The 1-megohm impedance makes this input suitable for very high-impedance sources such as passive guitar pickups without the need for an external DI box.
Features at a Glance
  • SSL SuperAnalogue mic pre with 48V phantom power
  • Polarity invert switch
  • 5-segment LED meter in dBu
  • Switchable 12 dB/octave high-pass filter at 75 Hz
  • Classic SSL high- and low-frequency EQ
  • Shelf/bell curve switch per band
  • Single-knob channel compressor with variable threshold and 3-segment LED gain reduction meter
  • Front-panel TRS line input with 1-megohm Hi-Z switch
UPC: 878076001586

In the Box

  • Solid State Logic SiX CH 500 Series Channel Strip
  • Limited 1-Year Manufacturer Warranty

Not in the Box

    Table of Contents
    • Description
    • Simple and Effective
    • SuperAnalogue
    • SSL HF and LF EQ
    • Channel Compressor
    • TRS Line Input
    • Features at a Glance

    Solid State Logic 729736X1 Specs

    Number of Channels
    1
    Inputs
    1 x Balanced Mic Input via 500 Series Multipin Connector
    1 x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
    1 x XLR Female (Rear Panel)
    Output
    1 x Balanced Line Output via 500 Series Multipin Connector
    1 x XLR Male (Rear Panel)
    Phantom Power
    48 VDC
    Gain Range
    Mic Gain: +6 to +72 dB
    Line Gain: -3 to +63 dB
    Polarity Reverse
    Switchable
    High-Pass Filter
    12 dB/Octave at 75 Hz
    Input Impedance
    Mic: 1.2 Kilohms
    Line/Hi-Z: 10 Kilohms or 1 Megohm (Switchable)
    EIN
    Mic Pre: Typically -129 dB
    THD + N
    <0.0015%
    CMRR
    Mic: >80 dB
    Line: >70 dB
    EQ High
    Shelf Mode: ±15 dB at 3.5 kHz
    Bell Mode: ±15 dB at 5 kHz
    EQ Low
    Shelf Mode: ±15 dB at 60 Hz
    Bell Mode: ±15 dB at 200 Hz
    Compressor
    Ratio: 2:1
    Threshold: -20 to +10 dBu
    Attack Time: 5 ms
    Release Time: 300 ms
    Knee: Over-Easy / Soft Knee
    Makeup Gain: Automatic
    Dimensions
    Not Specified by Manufacturer
    Weight
    Not Specified by Manufacturer
    Packaging Info
    Package Weight
    0.695 lb
    Box Dimensions (LxWxH)
    8 x 6.2 x 2.2"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
