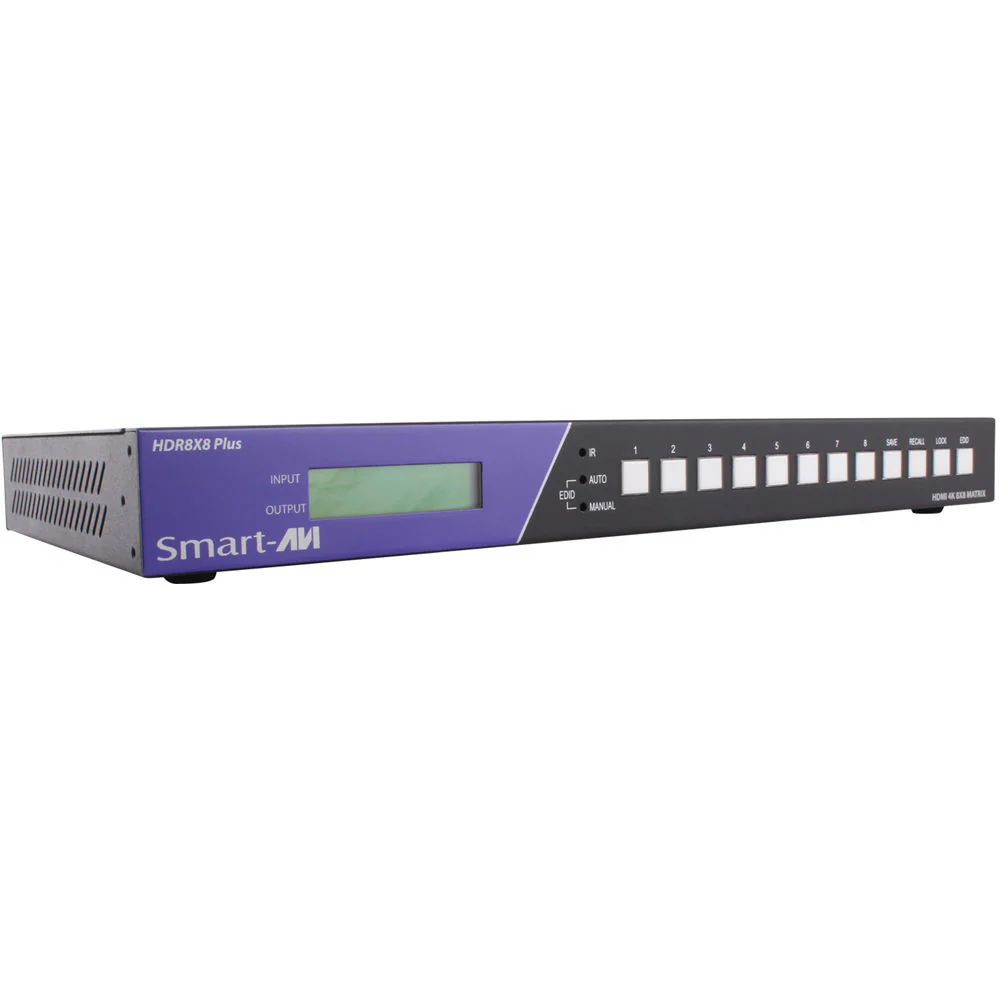

Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote
The HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote from Smart-AVI has eight sources distributing to eight outputs. This offers the flexibility of sending HD video and audio signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMI cables to a single display. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control, and the RS-232 port. The TCP/IP controls can also be used to manage the unit from a web browser.
- Supports 4K input/output (3840 x 2160 @ 30 Hz)
- Non-blocking 8x8 HDMI matrix switch

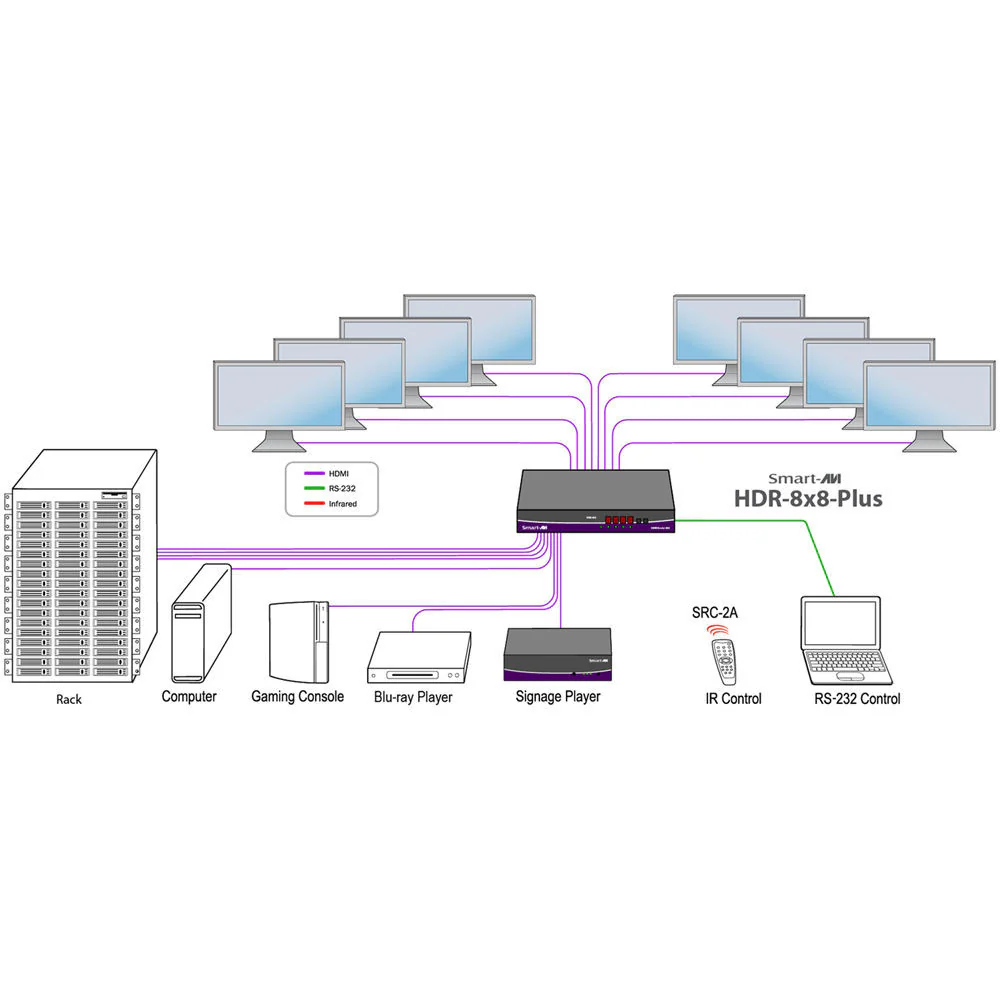

- Distribute any eight inputs to any eight HDMI output displays
- EDID learning mode
- Includes IR remote
- Supports RS-232 control
- HDCP and HDMI 1.4 compliant
- SmartAVI PC software
- Integrated TCP/IP controller
- Ideal for use with digital media at airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, wall displays, and security
- SRC-2A Infrared Remote Control for SmartAVI Video Matrix Switches
- 12 VDC 4A Power Supply
- Limited 1-Year Warranty
| Video | |
|---|---|
| Format | HDMI 1.4 |
| DVI Compliance | Single-link DVI-D 1.1 with adapter |
| HDCP Compliance | 1.0 / 1.1 |
| Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) |
| Resolution | Up to 3840 x 2160 @ 30 Hz |

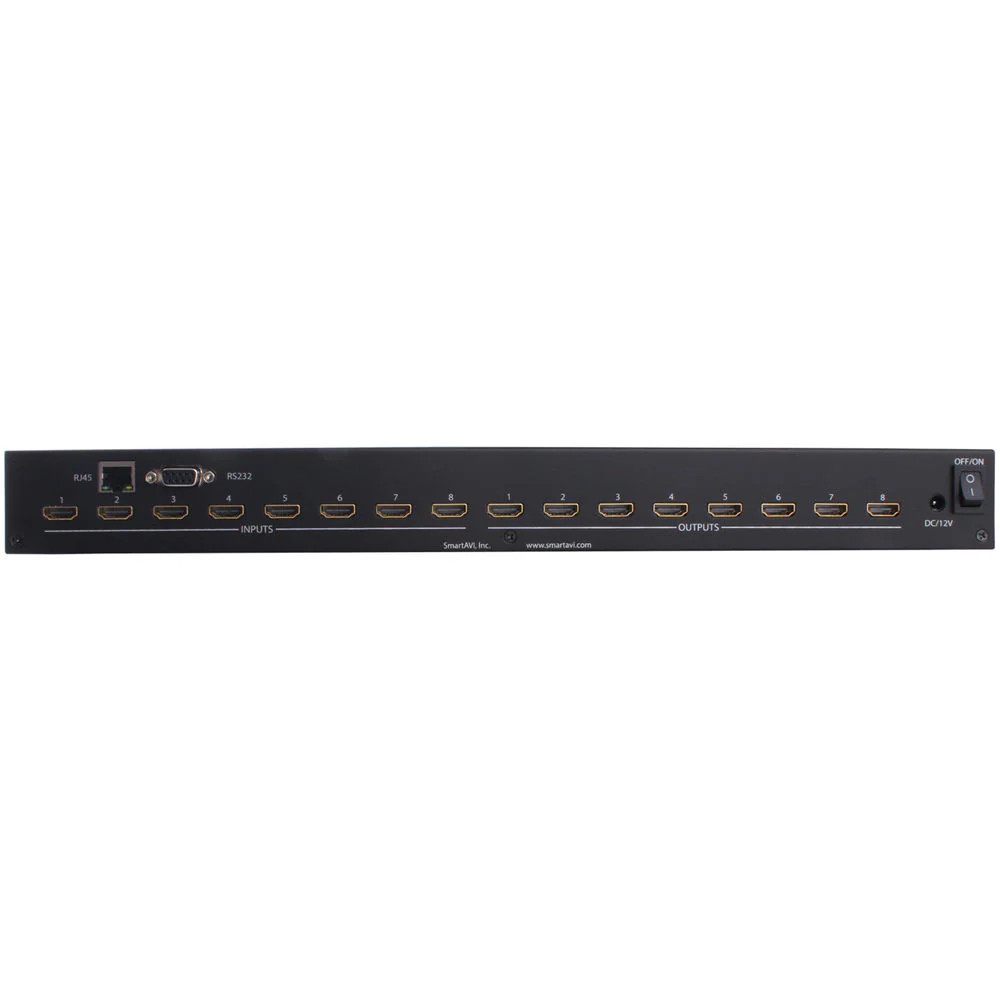

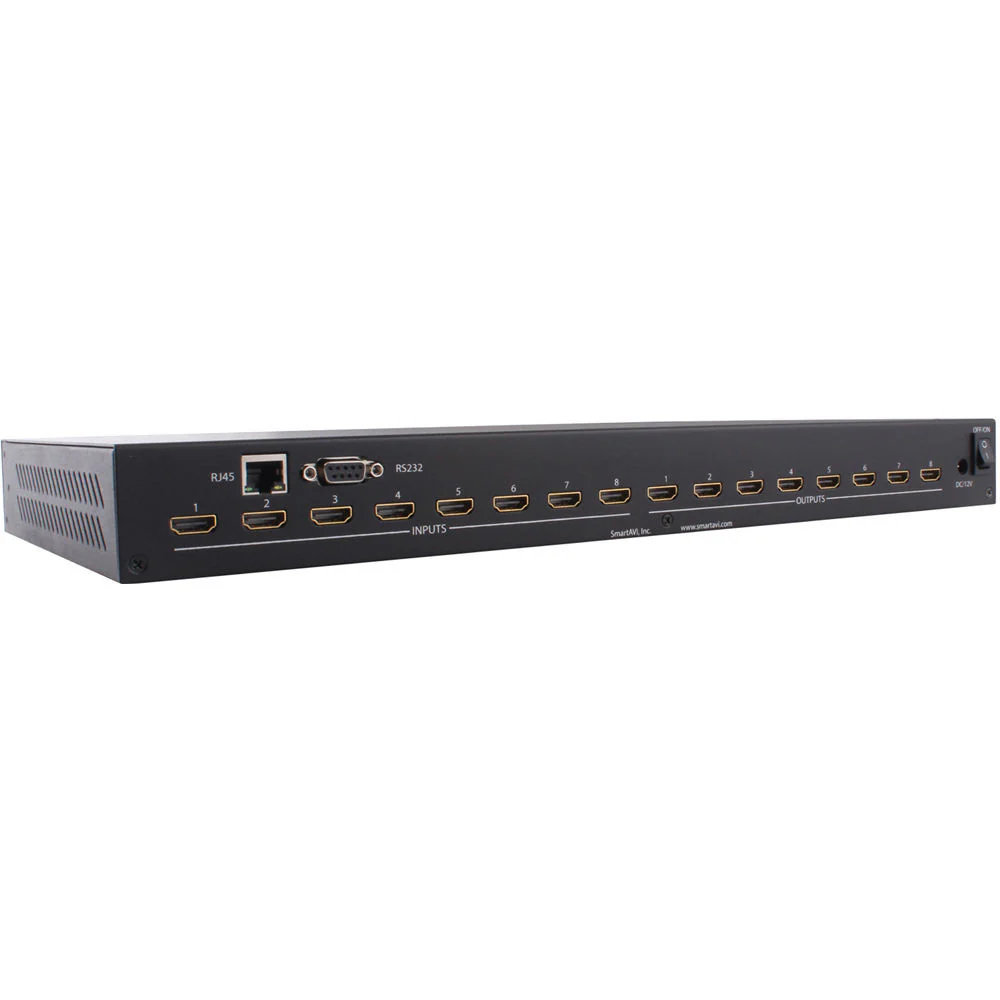

| Input Interface | 8 x HDMI (7.1 Channel audio & video) |
| Output Interface | 8 x HDMI (7.1 Channel audio and video) |
| Connector | 1 x HDMI Type A, female |
| Maximum Cable Length | 20' (6.1 m) |
| Control | |
|---|---|
| Front Panel | Tact switch |
| IR | Via remote control with IR type 3 |
| PC | RS-232 control |
| TCP/IP | Control: Via web browser |
| Other | |
|---|---|
| Power Supply | External 100 to 240 VAC / 12 VDC, 4 A |
| Maximum Power Consumption | 20 W |
| Operating Temperature | 32 to 95�F (0 to 35�C) |
| Storage Temperature | -4 to 185�F (-20 to 85�C) |
| Humidity | Up to 95% |
| Approvals | UL, CE, RoHS |
| Dimensions | 17.2 x 8.3 x 1.7" (43.6 x 21.1 x 4.4 cm) |
| Weight | 98.8 oz (2800 g) |
| Packaging Info | |
|---|---|
| Package Weight | 8.4 lb |
| Box Dimensions (LxWxH) | 20.0 x 12.3 x 3.2" |
