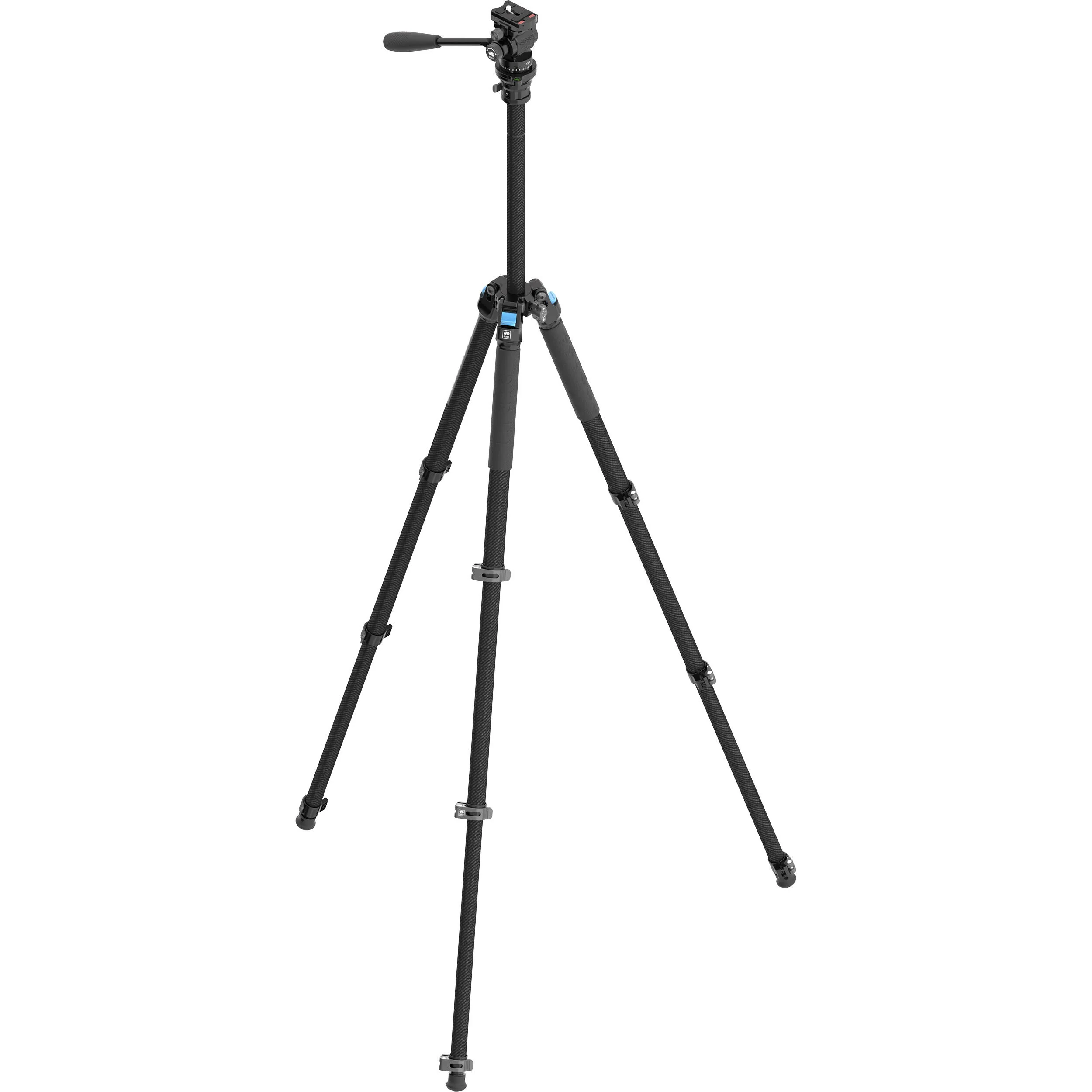

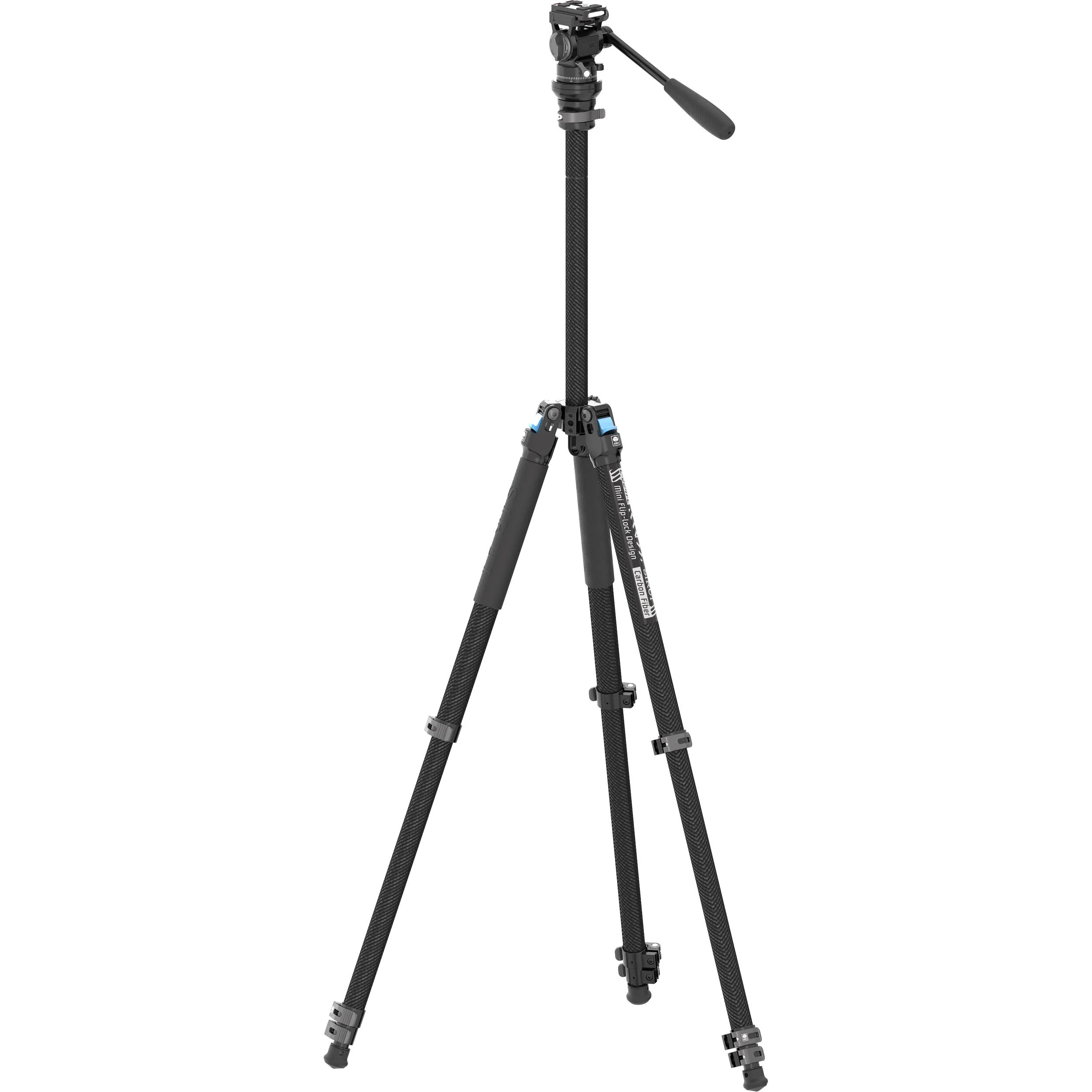

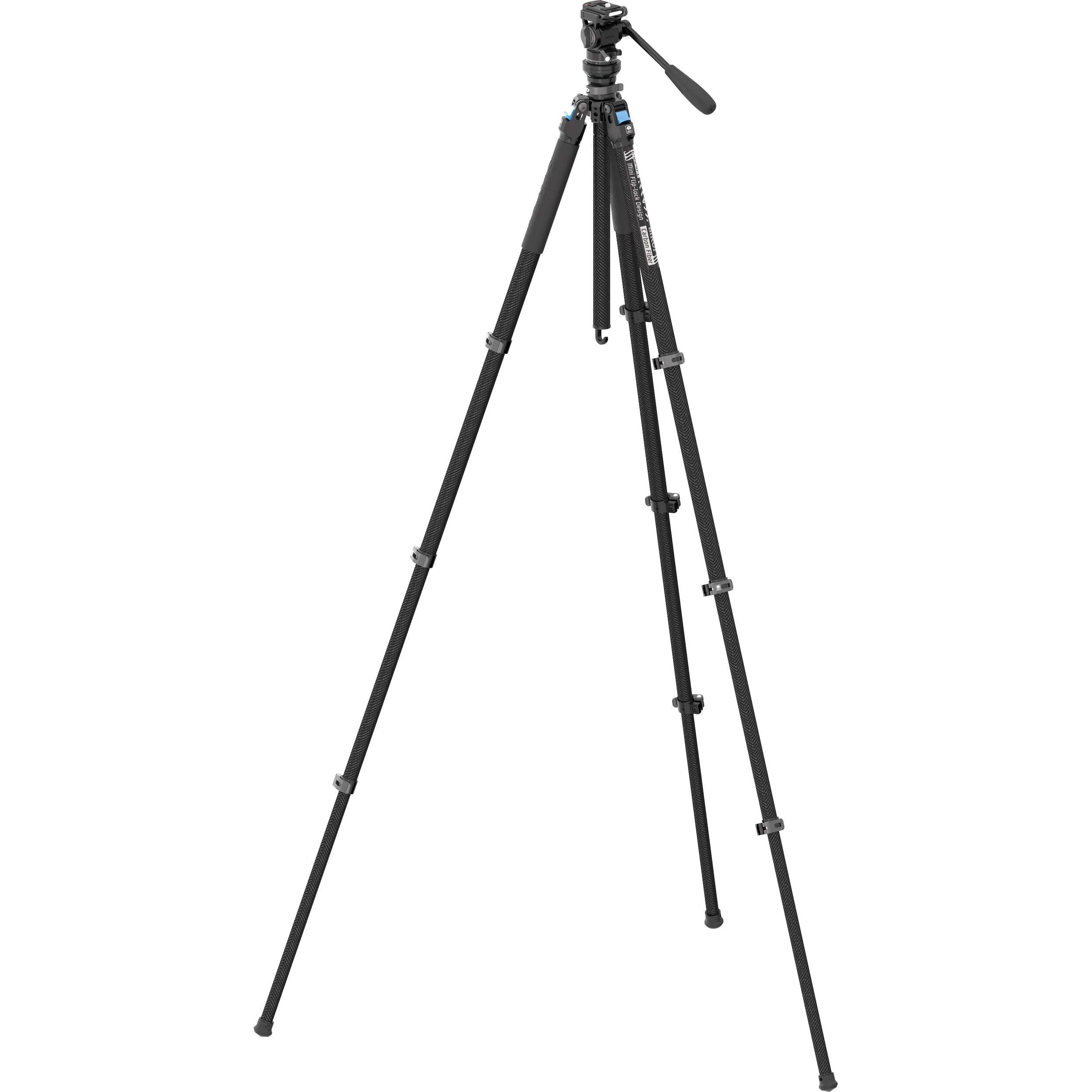

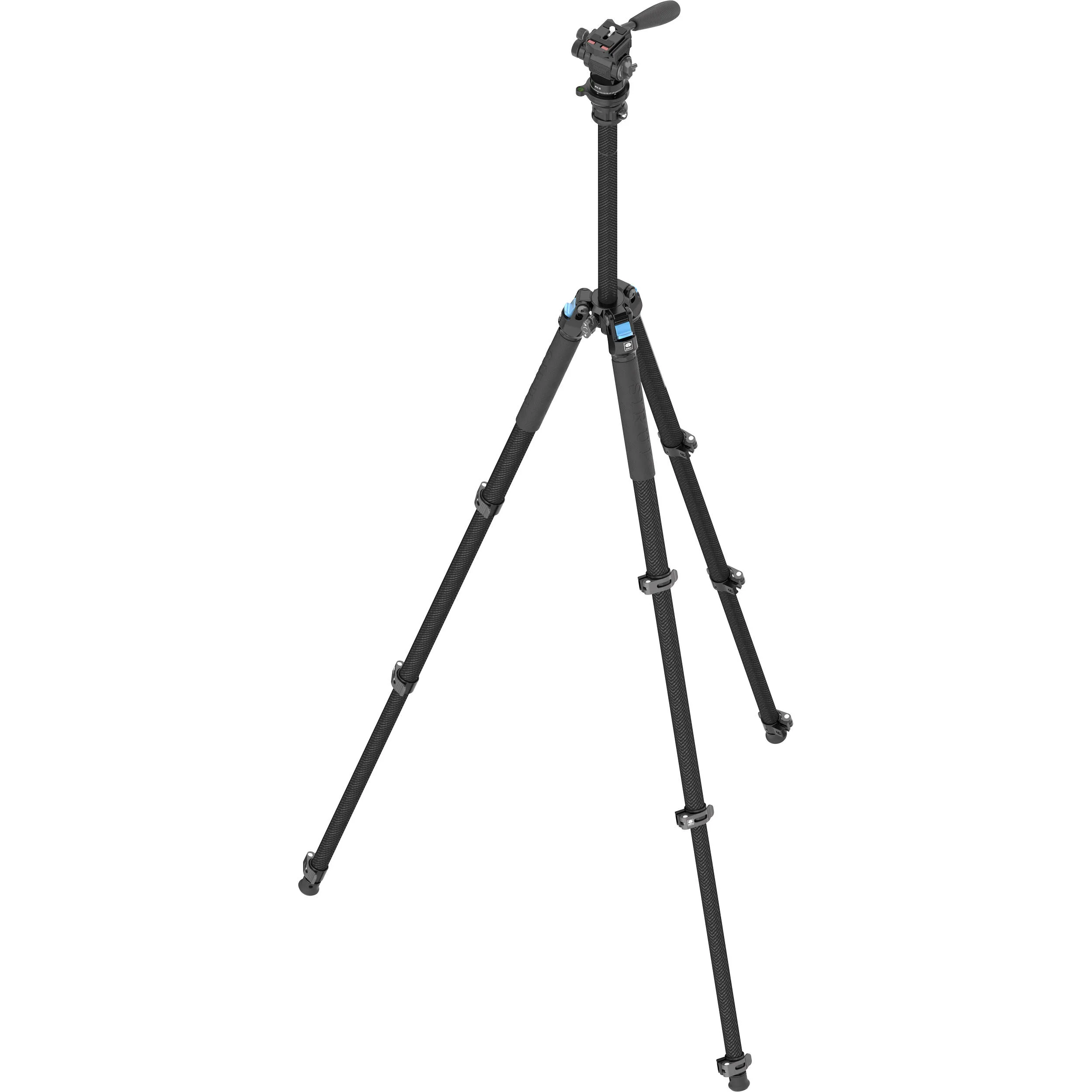

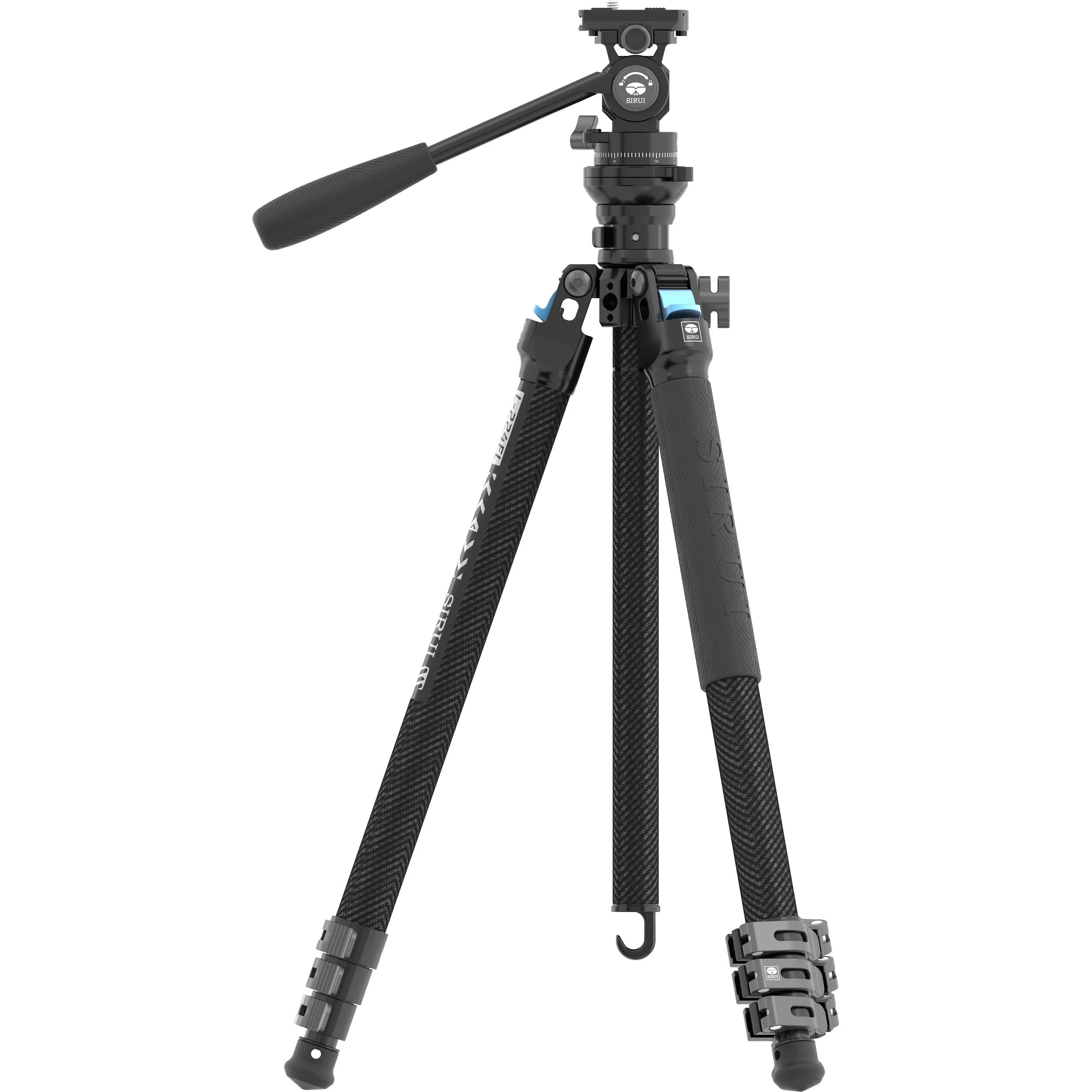

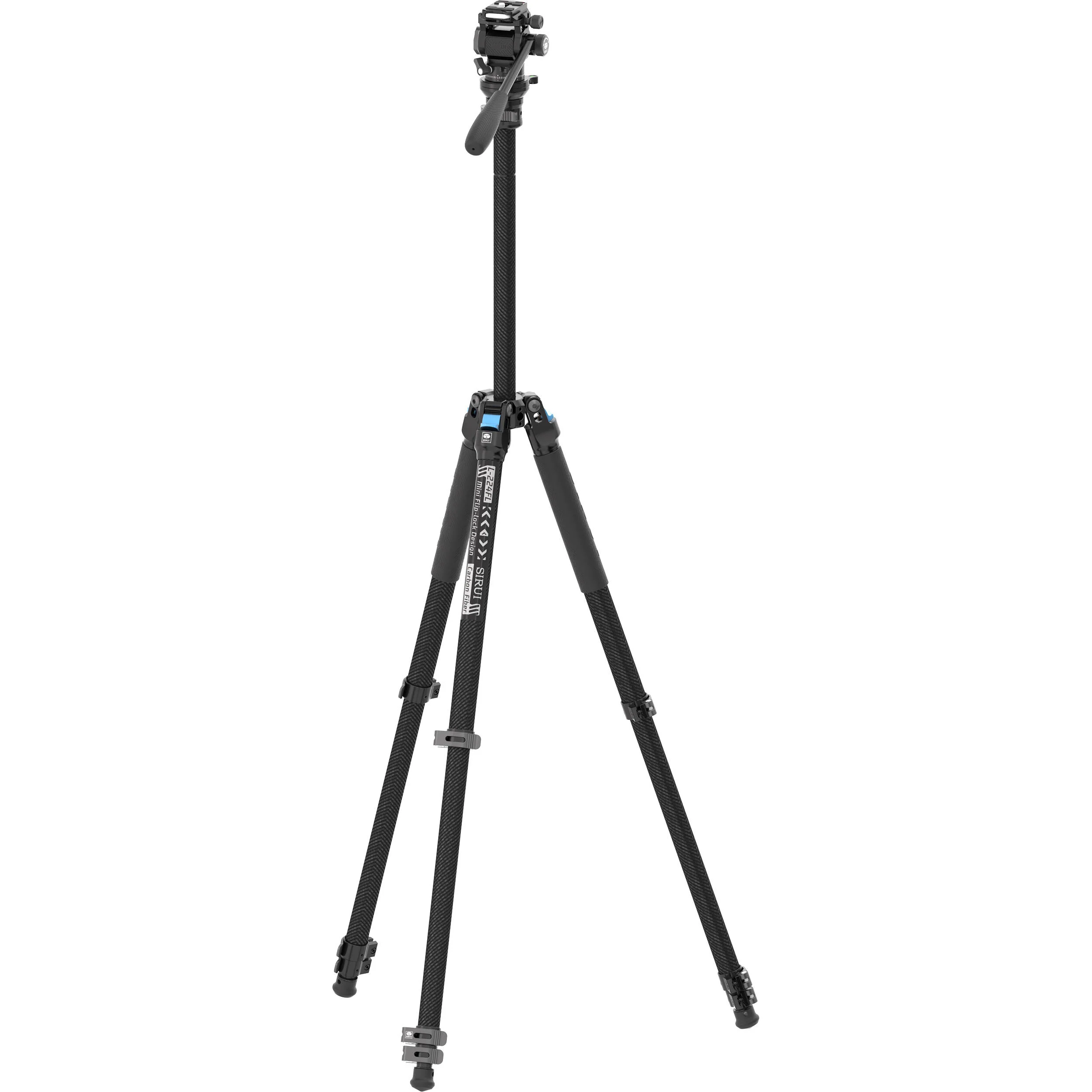

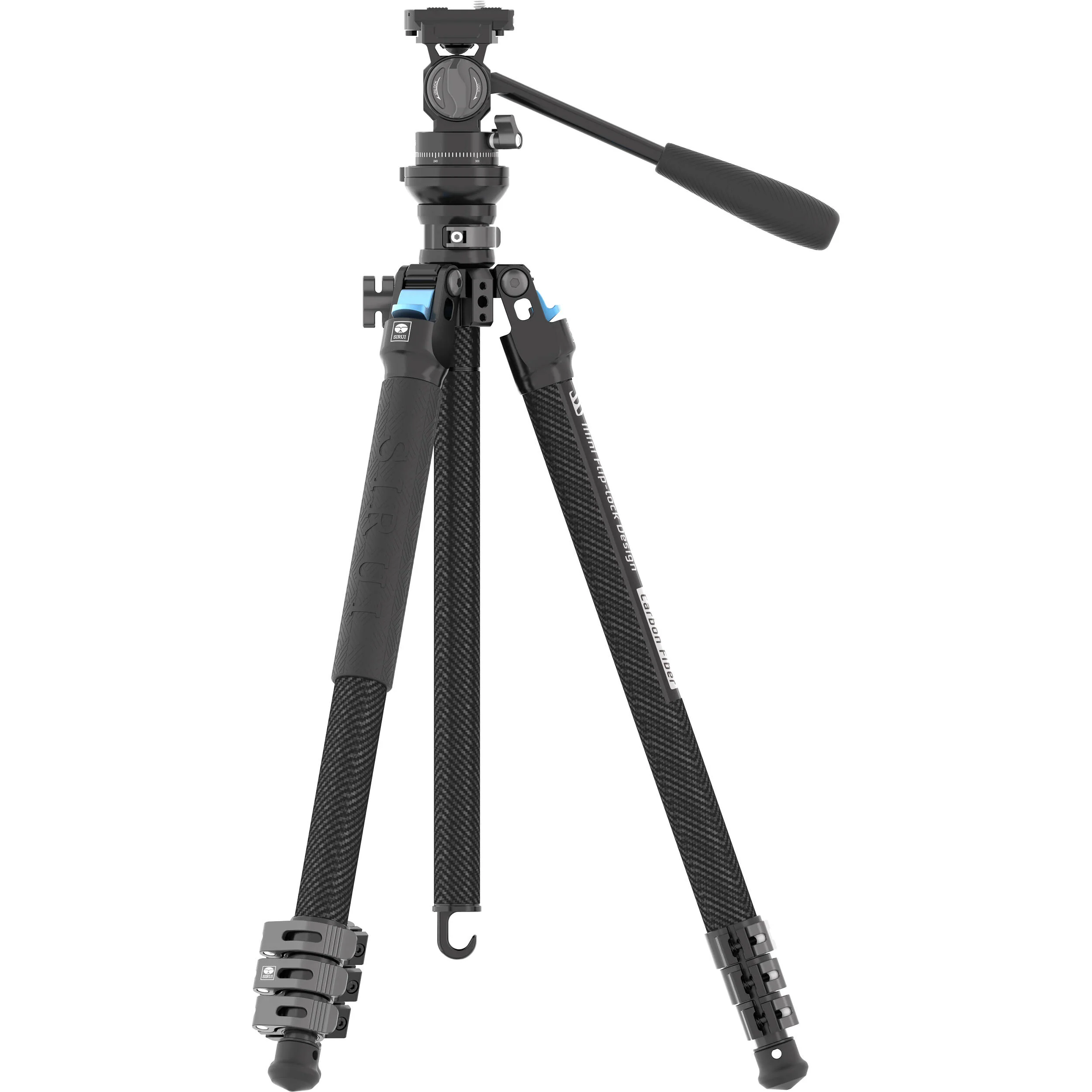

Sirui L-224F Carbon Fiber Video Tripod with KV-5 Pan/Tilt Head
Sirui L-224FL+KV-5 Overview
The Sirui L-224F Carbon Fiber Photo Tripod with KV-5 Pan/Tilt Head is a compact, lightweight tripod built for videographers who require camera stability and portability. The three carbon fiber legs have four sections each, extending quickly with the help of convenient flip locks. The center column increases the tripod extension to a maximum height of 60", and it can be removed for low-angle shots, allowing a minimum height of 10".
Equipped with Sirui's KV-5 pan/tilt video head, the tripod weighs in at a mere 3.2 lb, folds down to a length of 21.1", and has a maximum load capacity of 11 lb. With a -80 to +90° tilt range and 360° panning ability, the KV-5 video head comes equipped with a built-in panning handle, adjustable leveling bowl, two integrated bubble levels, and individual pan and tilt locking knobs.
- Supports camera systems and accessories up to 11 lb
- Flip locks for easy height adjustments from 10 to 60"
- KV-5 pan/tilt video head with a flip-lock adjustable leveling bowl
- The center column extends height and is removable for low-angle shots
- Carbon fiber build ensures durability while keeping weight low at 3.2 lb
Items Included
- Sirui L-224F Carbon Fiber Video Tripod with KV-5 Pan/Tilt Head
- Limited 6-Year Manufacturer Warranty
Additional Resources
No additional resources available
Sirui L-224FL+KV-5 Specs
| Camera Mounting |
1/4"-20 Screw (No Quick Release)
|
| Head Type |
Pan & Tilt Head
|
| Drag Control |
Yes
|
| Primary Material |
Carbon Fiber
|
| Load Capacity |
11 lb / 5 kg
|
| Maximum Working Height |
60" / 152.4 cm
|
| Minimum Working Height |
8.7" / 22 cm
|
| Closed Length |
10" / 25.4 cm
|
| Weight |
3.1 lb / 1.4 kg
|
| Camera Mounting |
1/4"-20 Screw (No Quick Release)
|
| Head Type |
Pan & Tilt Head
|
| Base Mount |
Flat Base with 3/8"-16 Female
|
| Counter Balance |
No
|
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Vertical Tilt |
+90° to -80°
|
| Lateral Tilt |
No
|
| Primary Material |
Carbon Fiber
|
| Leg Lock |
Flip Lock
|
| Leg Sections |
4
|
| Independent Leg Spread |
Yes
|
| Load Capacity |
11 lb / 5 kg
|
| Maximum Working Height |
60" / 152.4 cm
|
| Center Column |
Yes, Round: Ballast Hook, Removable
|
| Max Height without Center Column |
Not Specified by Manufacturer
|
| Minimum Working Height |
8.7" / 22 cm
|
| Closed Length |
10" / 25.4 cm
|
| Bubble Level |
Yes
|
| Detachable Monopod |
No
|
| Spreader Support |
No
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
4.54 lb
|
| Box Dimensions (LxWxH) |
23.7 x 5.4 x 4.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
