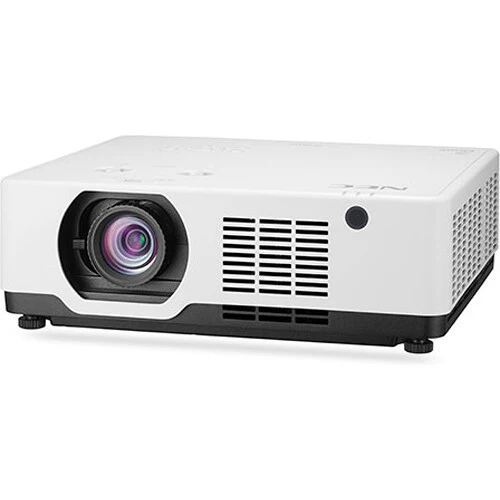

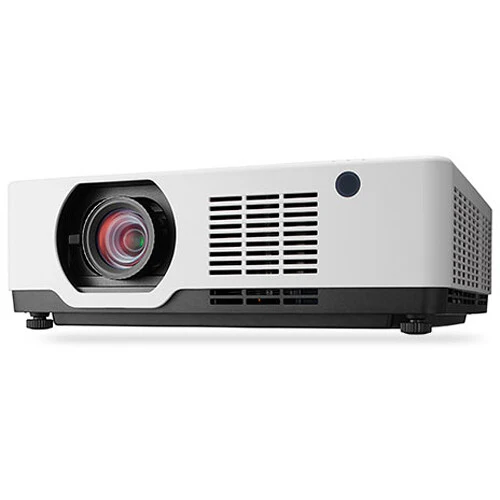

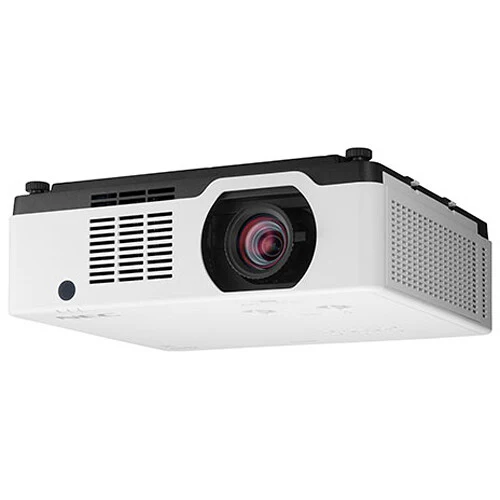

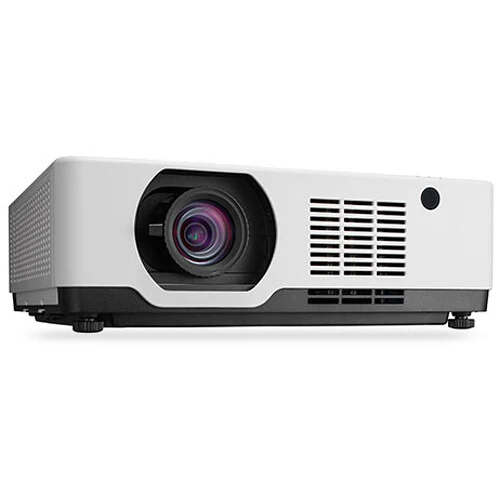

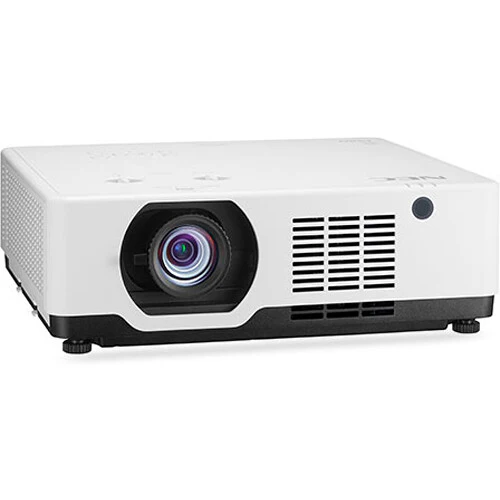

Sharp NP-PE506WL 5200-Lumen WXGA Laser Projector
Sharp PE506WL Overview
By Photo's
John Foldi
When using the NP-PE506WL 5200-Lumen WXGA Laser Projector from NEC, you get a projector that offers installation flexibility, an eco-friendly power-saving mode, and a bright HD image up to 300" in size. Ideal for most any classroom or conference room, the NP-PE506WL offers 360° rotation for a tilt-free installation, and a portrait mode that accommodates mounting on its side for vertical content. Once installed, the bright laser light delivers 5200 lumens, which can accommodate even fully lit locations. Getting content into the projector is both easy and convenient. Connect a media player or laptop to dual HDMI ports, access presentations over a local network, or plug in an optional flash drive to view JPG images.
Image Correction
A variety of image correction options are available for you to create a perfectly square projection onto a wall or screen. You get automatic vertical keystone, along with vertical and horizontal lens shift, plus a 1.6x zoom. There's also Cornerstone Correction, which offers vertical, horizontal, and diagonal image adjustment.
ECO Mode
For the environmental and budget-conscious, you can easily activate Eco Mode via the dedicated button on the remote control. In this mode, power and audible noise are reduced, while the laser light source lifespan is extended. There's even a Carbon Savings Meter that calculates the positive effects gained when in Eco Mode.
Internal and External Audio
For an all-in-one solution, you can utilize the 16W built-in speakers, or you can take advantage of the 3.5mm audio out port. This port lets you connect the projector to an optional speaker system, and you can conveniently control the volume using the included remote.
Direct Power Off
If power to the projector is suddenly cut, this feature keeps the fans running until the lamp is properly cooled.
Additional Features
- Accepts 4K/30 content using an integrated video processing/upscaling chip
- 1.2 to 2.1:1 throw ratio
- Auto power off
- NaviSet Administrator2 compatible
- Crestron, AMX, and PJLink support
UPC: 805736076745
Items Included
- Sharp NP-PE506WL 5200-Lumen WXGA Laser Projector
- Remote Control with Battery
- Power Cord
- RGB Signal Cable
- Limited 5-Year Manufacturer Warranty (5 Years or 20,000 Hours (Whichever Comes First))
Additional Resources
Sharp PE506WL Specs
Key Specs
| Display System |
0.64" LCD
|
| Native Resolution |
1280 x 800
|
| Maximum Brightness |
5200 Lumens
|
| Throw Ratio |
1.2 to 2.1:1
|
| Projection Size |
30 to 300" / 76.2 to 762.0 cm
|
| HDR Support |
Yes
|
| Inputs/Outputs |
2x HDMI 1.4b Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 (VGA) Video Output |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
0.64" LCD
|
| Native Resolution |
1280 x 800
|
| Supported Resolutions |
Minimum: 640 x 480
Maximum: 3840 x 2160 @ 30 Hz |
| Maximum Brightness |
5200 Lumens
|
| Aspect Ratio |
Native: 16:10
Supported: 10:16 |
| Dynamic Contrast Ratio |
3,000,000:1
|
| Scan |
Horizontal: 15 to 100kHz
Vertical: 24 to 85Hz |
Lens
| Includes Lens |
Yes
|
| Focus |
Manual
|
| Aperture |
f/1.7 to 2.21
|
| Focal Length |
17.42 to 28.99mm
|
| Optical Zoom |
1.66x
|
| Throw Distance |
2.6 to 44.3' / 0.8 to 13.5 m
|
| Throw Ratio |
1.2 to 2.1:1
|
| Projection Size |
30 to 300" / 76.2 to 762.0 cm
|
Features
| Keystone Correction |
Auto / Manual to Vertical: ± 30°
Manual to Horizontal: ± 30° |
| HDR Support |
Yes
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
16 W
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI 1.4b Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 (VGA) Video Output |
| HDCP Support |
Not Specified by Manufacturer
|
Hardware
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No, Optional Adapter Available
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 37 dB
Low Brightness: 27 dB |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.6 to 4.5 A
|
| Power Consumption |
Full Brightness: 330 W
Standby Mode (Lamp Off): 0.5 W |
| Certifications |
UL UL60950-1/UL62368-1, FCC Part 15 Class B
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 88% Humidity
|
| Storage Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
|
| Dimensions (W x H x D) |
15.9 x 5.4 x 14.1" / 405.0 x 137.0 x 358.0 mm
|
| Weight |
17.31 lb / 7.85 kg
|
Packaging Info
| Package Weight |
23.21 lb
|
| Box Dimensions (LxWxH) |
20.1 x 19.8 x 10.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
