Sequential PRO 3 SE Multi-Filter Mono/3-Voice Paraphonic Synthesizer (Special Edition)

Tilt-Up Control Panel

Premium-Grade Walnut Trim

3 x VCO: 2 Analog + Wavetable

Wavetable: 32 Tables of 16 Waves + Morph

Sequential Pro 3 Introduction

Building upon the success of the PRO 1 and PRO 2 synthesizers, the special edition Sequential PRO 3 SE Multi-Filter Mono/3-Voice Paraphonic Synthesizer features a handsome, multi-angle tilt-up panel, premium-grade walnut trim, and is designed for studio recording and live performance applications.

The 3-octave synthesizer with velocity and aftertouch semi-weighted keyboard is referred to as a hybrid because it combines two analog oscillators, a wavetable oscillator, three classic filters, and a monophonic, 3-voice paraphonic architecture. With over 60 knobs and 70 buttons, the instrument is a breeze to program without intensive menu diving.

Three vintage-style filters cover the gamut of sonic textures. Filter 1 is a low-pass based on the Prophet 6, while filter 2 sports a classic low-pass ladder filter design with resonance compensation. Filter 3 is a classic state-variable OB-6 multimode that can be continuously varied between notch, low-pass, and high-pass with an optional band-pass mode. An additional drive control provides punch when you need that bit of extra mojo.

Onboard modulation capabilities include four loopable ADSR envelope generators, three syncable LFOs with slew and phase offset, a full-featured arpeggiator, and a 32-slot modulation matrix with over 46 mod sources and over 171 mod destinations. If that weren't enough, the 16-track sequencer with real-time and step inputs is a most powerful performance tool. Each track offers 16-steps and four phrases and is capable of ratcheting, variable gate and sequence lengths, multiple playback modes, and a paraphonic operation. In addition to notes, sequence tracks can control any parameter in the 171-destination modulation matrix.

The dual engine multi-effects processor offers stereo delay, BBD delay, chorus, flanger, phaser, ring-mod, vintage rotary speaker, distortion, high-pass filter, and super plate reverb. Additionally, the PRO 3 is equipped with a programmable analog distortion and tuned feedback with Grunge for extra-aggressive tonal destruction.

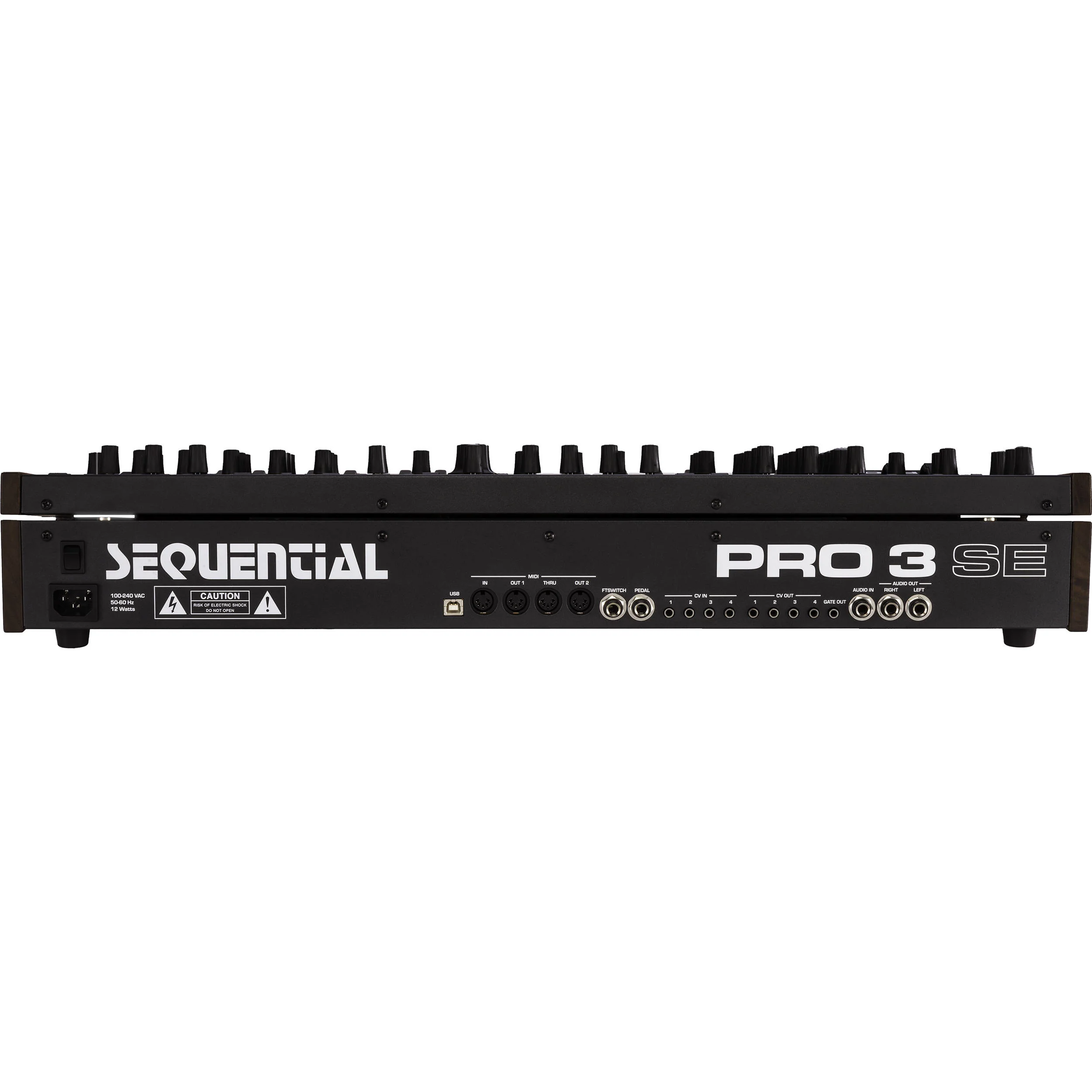

The rear panel offers four CV inputs, four CV outputs, and a gate output, which allows the PRO 3 to interface with modular synthesizers and other analog gear. Control voltages can be assigned and routed from within the modulation matrix and can be sequenced for inspirational performances. Control voltages can also run at audio rates for extreme modulation effects. Additional expression controls include a position-sensitive latchable touch slider and two backlit pitch and modulation wheels. The pitch wheel has independently adjustable upper and lower ranges for advanced programming and performances.

A Next-Generation Classic

• Two voltage-controlled oscillators provide warmth and presence
• One digital wavetable oscillator provides digital edge and grit. (32 tables of 16 waves each + wave morphing)
• Tuned feedback with grunge
• Analog distortion



Three Filters Based on Vintage Designs

• Filter 1: 4-pole low-pass design based on the Prophet 6 filter
• Filter 2: Classic transistor ladder filter with optional resonance compensation to preserve low-end punch
• Filter 3: Classic 2-pole, state-variable design based on the OB-6 filter that can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode
• Additional Drive control provides more punch

Expressive Sequencing

• 16 tracks, 16 steps, and 4 phrases
• Features both real-time and step input, ratcheting, variable gate, and sequence lengths
• Multiple playback modes and paraphonic operation
• Syncs to MIDI clock and external audio input, and inputs and outputs control voltages
• Sequence tracks can control any parameter in the 171-destination modulation matrix

Plays Well with Modulars

• Flexible architecture opens the door to processing external audio and interfacing with modular synths
• Four rear-panel control voltage inputs/outputs and a dedicated gate output
• Control voltages can be assigned and routed from within the modulation matrix
• Capable of running at audio rates for extreme modulation effects
• Many parameters can be sent to the CV outputs including oscillators, LFOs, envelopes, and sequencer tracks
• Allows Pro 3 to become the central hub of a modular or multi-synth setup

Effects, Envelopes, LFOs, an Arpeggiator, and Extreme Modulation

• Effects section provides delays, reverbs, time-domain effects such as chorus/phasing/flanging, and more
• Four loopable five-stage envelope generators
• Three syncable LFOs with slew and phase offset
• Full-featured arpeggiator
• 32-slot modulation matrix with 46+ mod sources and 171+ mod destinations

Monophonic and Paraphonic Operation

• Designed to be a super-powerful monosynth, but it is also a versatile 3-voice paraphonic synth
• 3-note chords are possible
• Creative use of effects and per-oscillator modulation yields highly expressive performance
• Three-octave, semi-weighted keyboard with velocity and channel aftertouch
• Backlit pitch, mod wheels, and a location-sensitive touch slider

UPC: 855346000647

Type	Monophonic and 3-Voice Paraphonic with Individually Gated Envelopes per Osc
Oscillators	3 x Oscillators 2 x Analog, Voltage-Controlled Oscillators 1 x DSP-Based Digital Oscillator Analog Oscillators Wave Shapes: Triangle, Saw, Pulse with Variable Shape Modulation / Pulse Width on Each Digital Oscillator: 32 Digital Wavetables of 16 Waves Each with Wave Morphing, Plus Classic Wave Shapes (Sine, Triangle, Saw, Variable-Width Pulse) and Super Saw Digital Oscillator 3 Can Function as an LFO for Complex Wavetable-Based Modulation White Noise Generator Hard Sync, Per-Oscillator Glide, Oscillator Slop
Filters	3 x Classic Filter Types Filter 1: 4-Pole, 24 dB/Octave, Prophet-6 Low-Pass Filter Filter 2: Classic 4-pole, 24 dB/Octave, Transistor Ladder Filter with Optional Resonance Compensation Filter 3: 2-Pole, 12 db/Octave, OB-6 State-Variable Filter. (Continuously Variable Between Low-Pass, Notch, and High-Pass Operation, with Optional Band-Pass Mode)
LFO	3 x Syncable LFOs with Phase Offset and Slew per LFO Five Waveshapes: Triangle, Saw, Reverse Saw, Square, and S&H
Envelopes	4 x ADSR Envelopes with Delay (Filter, VCA, and 2 Auxiliary Envelopes) Envelopes Freely Assignable to Multiple Modulation Destinations All Envelopes Can Repeat/Loop
Digital Effects	Dual Digital Effects Stereo Delay, BBD Delay, Chorus, Flanger, Phaser, Ring Mod, Vintage Rotating Speaker, Distortion, High-Pass Filter, Super Plate Reverb
Feedback	Tuned Feedback with Grunge for Extra-Aggressive Tonal Destruction
Distortion	Programmable Analog Distortion
Modulation	32-Slot Modulation Matrix Over 46 Mod Sources and Over 171 Mod Destinations Modulation Assignment Buttons Enable Quick and Easy Modulation Routing Mod Matrix Runs at Audio Rates
Control Voltage	4 x Control Voltage (CV) Inputs and Outputs for Interfacing with Modular Synths and Other CV-Compatible Devices Parameter Options to CV Outputs: Oscillators, LFOs, Envelopes, Sequencer Tracks, and any Other Source within the Modulation Matrix (Runs at Audio Rates) Gate Out for Triggering External CV-Compatible Devices (Any CV In Can be Used as a Gate Input)
Sequencer	16 Track Sequencer Three Modes: Normal, Gated, and Trigger 16 Tracks and 4 Linkable 16-Step Phrases Per-Step Ratcheting, Duration, and Velocity Multiple Playback Modes: Forward, Reverse, Forward/Reverse, Random Supports Real-Time/Step Input, Rests, and Variable-Length Sequences Syncs to MIDI Clock and External Audio and CV Input Sequences Freely Assignable to any Modulation Destination
Arpeggiator	Arpeggiator with Up, Down, Up+Down, Random, Assign Modes Syncs to MIDI Clock and External Audio and CV Inputs Relatching Arpeggiation Runs Concurrent with Sequencer for Arpeggiated Patterns with Parameter Automation
Controls	60+ Knobs 70 Buttons Enable Deep, Comprehensive Editing with Minimal Menu Diving Backlit Pitch and Mod Wheels Easily Visible in Low-Light Situations with a Smooth, Precise Response Independently Adjustable Upper and Lower Pitch Wheel Range Position-Sensitive Latchable Touch Slider for Enhanced Interactivity and Control Full-Sized, 3-Octave, Semi-Weighted Keyboard with Velocity and Aftertouch
Memory	512 User 512 Factory Programs Playlist Mode for Generating Easily Accessible Set Lists of Your Favorite Programs
I/O	4 x 5-Pin DIN MIDI (In, Out, Thru, and Out 2) USB: Type-B Port for Bidirectional MIDI Communication CV Inputs: 4 x 1/8" / 3.5 mm with ±10 V Range CV Outputs: 4 x 1/8" / 3.5 mm with ±10 V Range Gate Out: 1 x 1/8" / 3.5 mm Sustain/Footswitch: 1/4" / 6.35 mm Expression: 1/4"/ 6.35 mm External Audio Input: 1/4"/ 6.35 mm Main Stereo Output: 2 x 1/4" / 6.35 mm Headphone Out: 1/4" / 6.35 mm
Power	Universal IEC AC Power Inlet for Internal Power Supply 100 to 240 VAC, 50/60 Hz Maximum Power Consumption: 30 W
Dimensions (L x W x H)	26.5 x 13 x 3.5" / 67.3 x 33 x 8.9 cm
Weight	16 lb / 7.3 kg

Package Weight	32.415 lb
Box Dimensions (LxWxH)	32.2 x 19.5 x 10.2"
