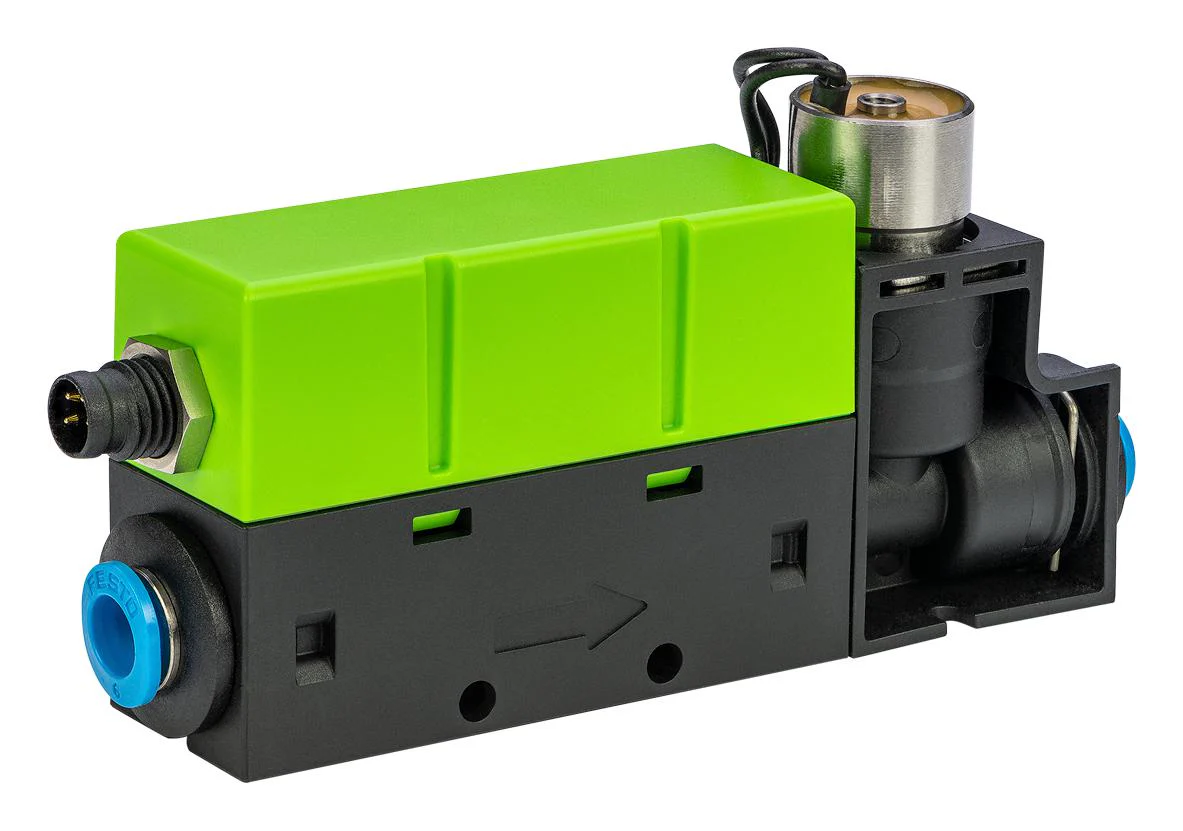

Sensirion SFC6000D-50SLM SFC6000D-50SLM Mass Air Flow Sensor Controller 50 l/min 10 bar 22.8 V 25.2 Push-In Tube New
Sensirion SFC6000D-50SLM SFC6000D-50SLM Mass Air Flow Sensor Controller 50 l/min 10 bar 22.8 V 25.2 Push-In Tube New
SFC6000D-50SLM is a digital mass flow controller. This measures gas mass flow by the calorimetric principle based on heat transfer. A heater element on a thermally insulated membrane and two thermopiles up-stream and downstream are integrated on a single silicon chip. In the presence of gas flow, the temperature distribution up and downstream is disturbed. This asymmetry is then measured. The measurement area as well as the A/D converter and further signal processing are based on a single chip using CMOS standard processes. Moreover, the same chip also takes over the function of a microprocessor in a standard mass flow controller, directly regulating the valve.
- 50 - 0.1slm flow range
- Disruptive concept combining plastic body and highly integrated electronics
- Small form factor and low weight
- High accuracy/repeatability (2% / 0.2% of set point)
- Wide control range (500:1), ultra-fast settling time (100ms)
- RS485 and I²C digital interface
- Exchangeable 6mm push-in and down mount connectors
- NIST traceable calibration
- No drift and no re-calibration required in the field
- NIST traceable calibration
Other details
| Brand | SENSIRION |
| Part Number | SFC6000D-50SLM |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Selection Guide EN | |
| Quick Start Guide EN | |
| Application Note EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$189.72
Original: $632.39
-70%Sensirion SFC6000D-50SLM SFC6000D-50SLM Mass Air Flow Sensor Controller 50 l/min 10 bar 22.8 V 25.2 Push-In Tube New—
$632.39
$189.72More Images
