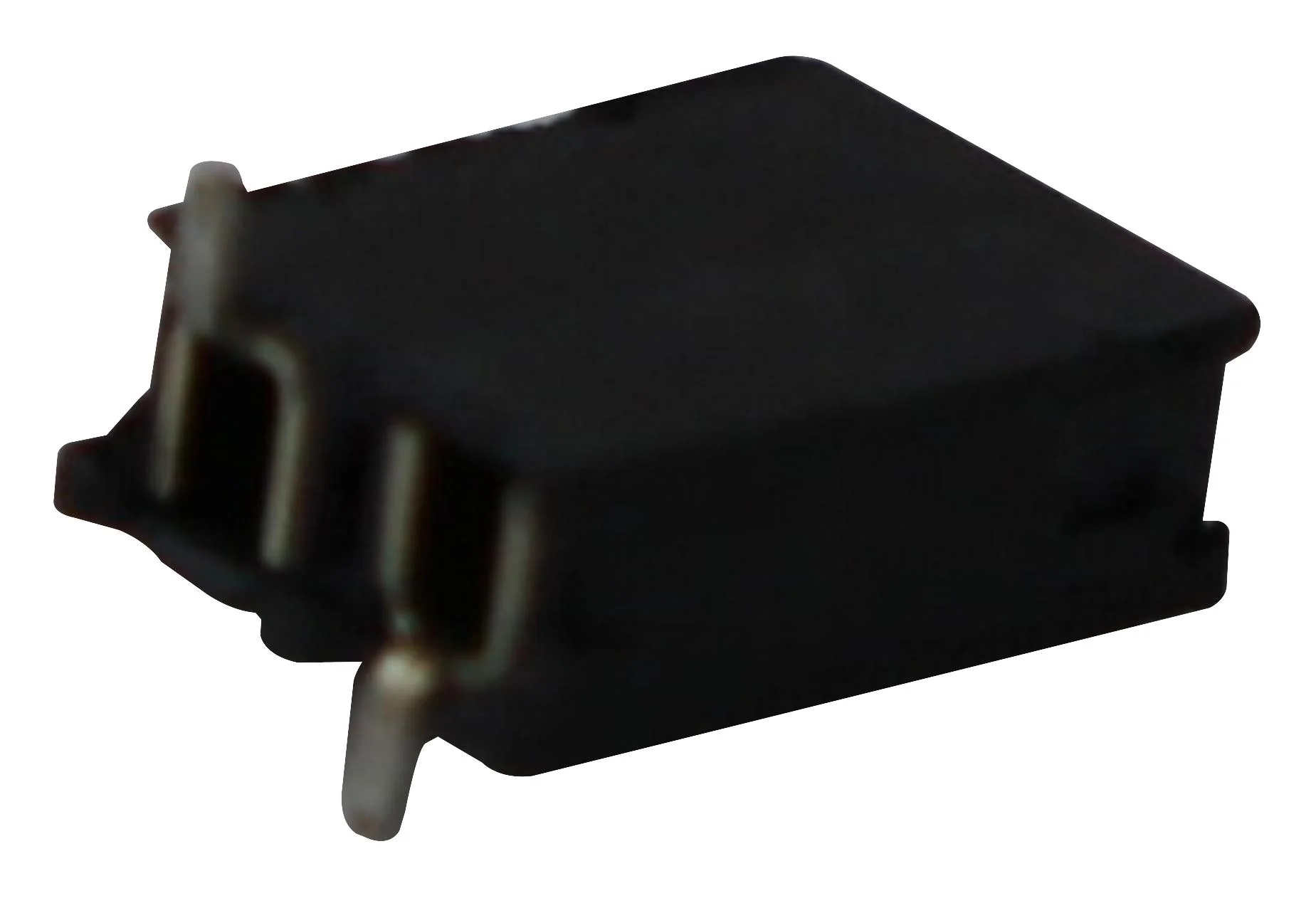

Samtec SSM-110-L-SV PCB Receptacle Board-to-Board 2.54 mm 1 Rows 10 Contacts Surface Mount Tiger Claw SSM

The SSM-110-L-SV is a 10-pole 1-row 2.54mm Tiger Claw� Surface Mount Socket Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The SSM series vertical pin socket strip is compatible with DW, EW, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, MTLW, MTSW, TSM, TSS, TSSH, TSW, ZSS and ZW series connectors.

• 5.2A Current rating
• 10mR Contact resistance
• Lead-free solderable
• 405VAC/572VDC Voltage rating
• Black colour

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	SSM-110-L-SV
Quantity	Each
Technical Data Sheet EN
Drawing EN
