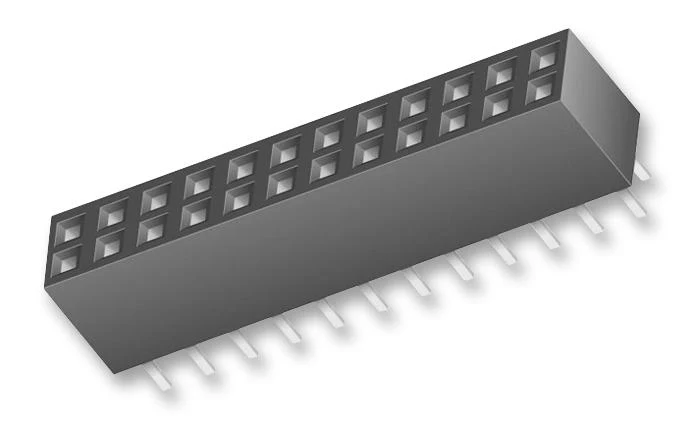

Samtec BCS-110-L-D-TE BCS-110-L-D-TE PCB Receptacle Board-to-Board 2.54 mm 2 Rows 20 Contacts Through Hole Mount Tiger Claw BCS

The BCS-110-L-D-TE is a 20-pole 2-row 2.54mm Tiger Claw� Pass-through Socket Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts and matte tin plated tail. Liquid crystal polymer insulator and top entry body orientation. The BCS series pass-through socket strip is compatible with DW, EW, HMTSW, HTSW, HW-SM, HW-TH, LCW, MTLW, MTSW, PHT, TSM, TSS, TSW, ZSS and ZW series connectors.

• Orderable with single and dual row (-S/-D) options
• Pitch spacing is 2.54mm (1 to 50 contacts per row)
• Featured with top entry (-TE) option
• Black liquid crystal polymer insulator material
• Contact material is phosphor bronze
• 10?" gold plated contacts
• Tiger Claw contact system
• Contact resistance is 10mohm
• Complies with UL E111594 and CSA 090871
• 0

• 000 standards
• High operating temperature range of -55?C to 125?C

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	BCS-110-L-D-TE
Quantity	Each
Technical Data Sheet EN
