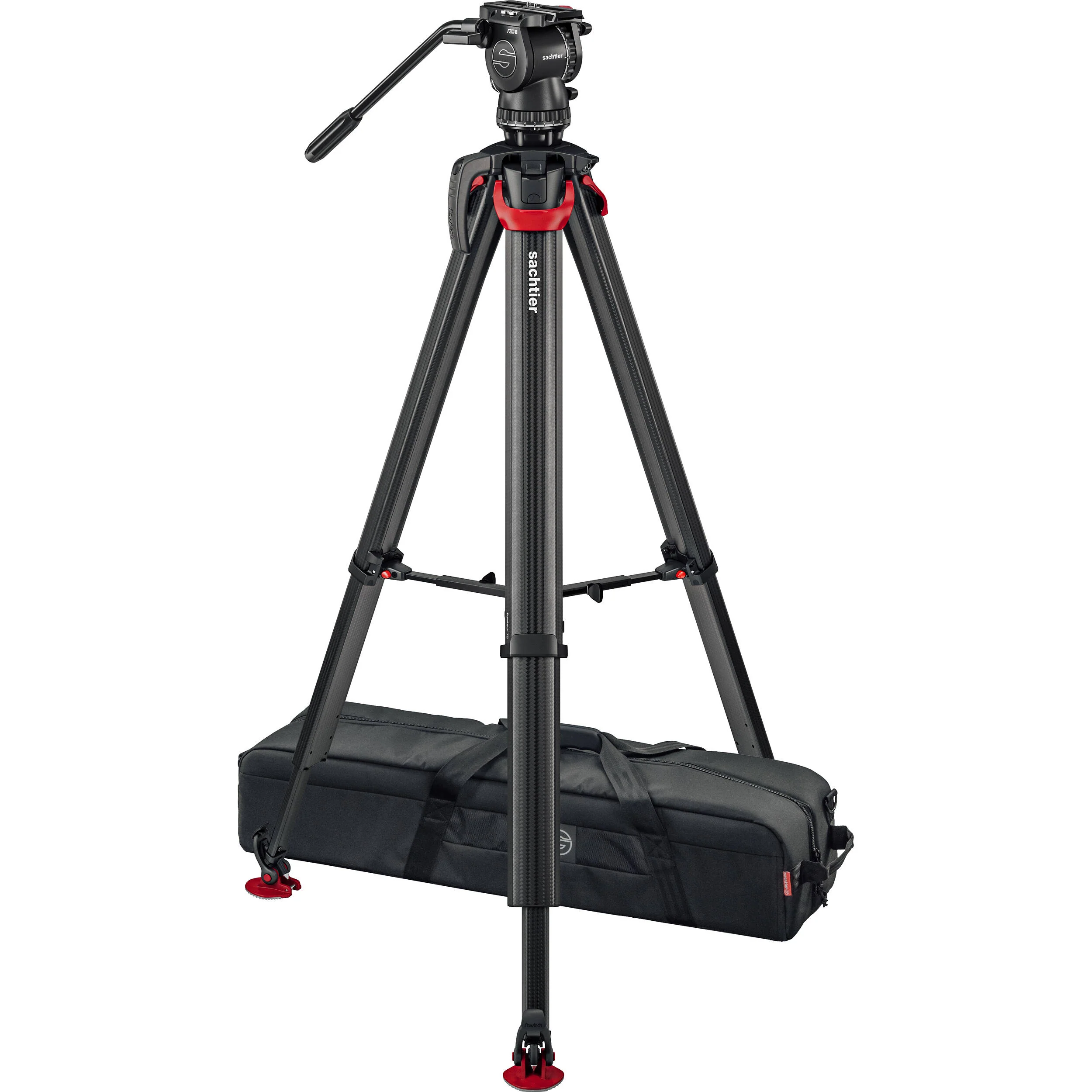

Sachtler FSB-8 Fluid Head & flowtech 75mm Tripod System MS Mk II
Sachtler FSB 8 MKII Tripod System Overview

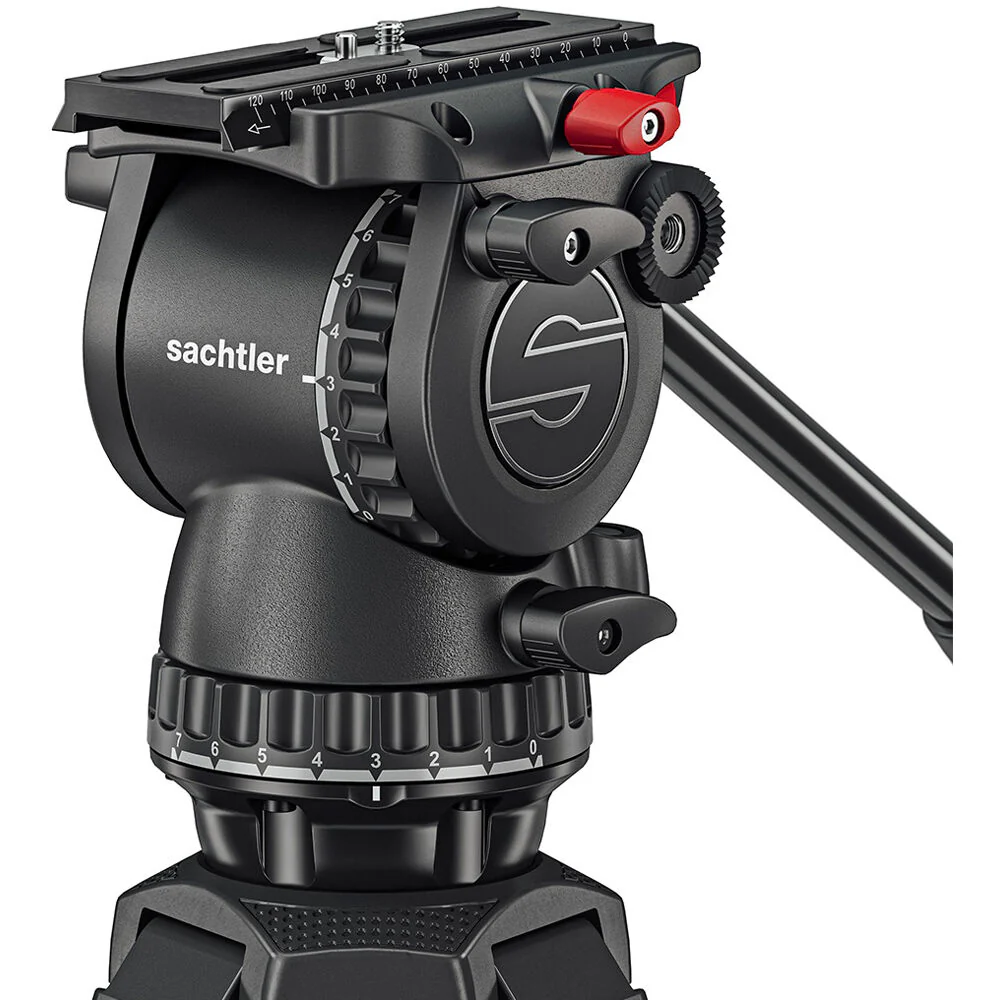

The FSB-8 Fluid Head & flowtech 75mm Tripod System MS Mk II from Sachtler is a comprehensive tripod system built for endurance and speed and packaged with carrying accessories and a padded carry bag for convenient transport and storage. Boasting new Speedbalance technology for accurately balancing any camera weighing up to 26.5 lb, the FSB-8 MK II fluid head features a snap-and-go, side-loading mechanism with a sliding range of 4.7" to facilitate the mounting and positioning of your accessorized camera.
The innovative illuminated PrismBubble allows you to quickly level your shot and is visible day or night and from any height. Subtle and smooth movement is easily achieved with the fluid head's counterbalance features and the seven horizontal and vertical drag settings that allow you to tailor the amount of drag needed to better support your payload.

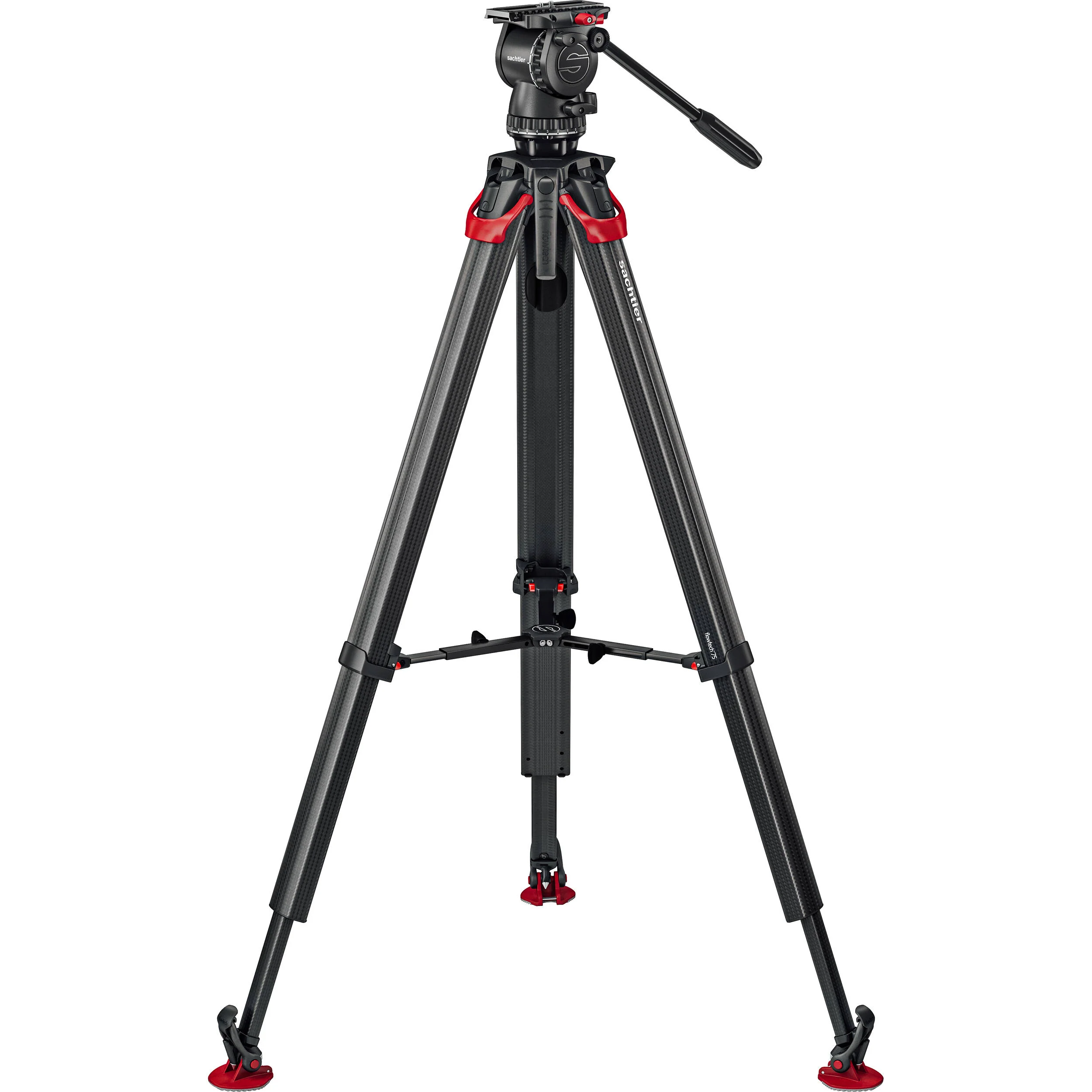

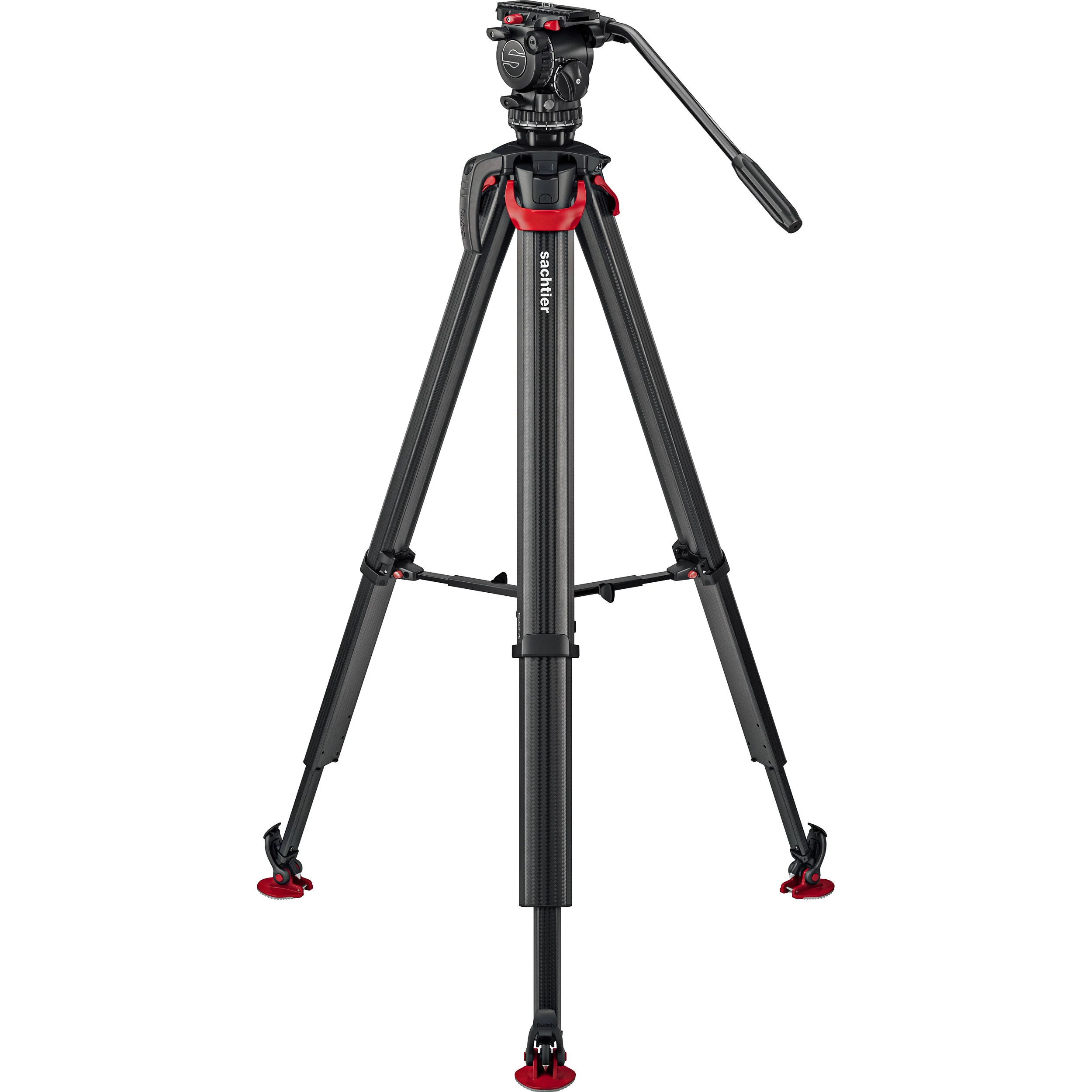

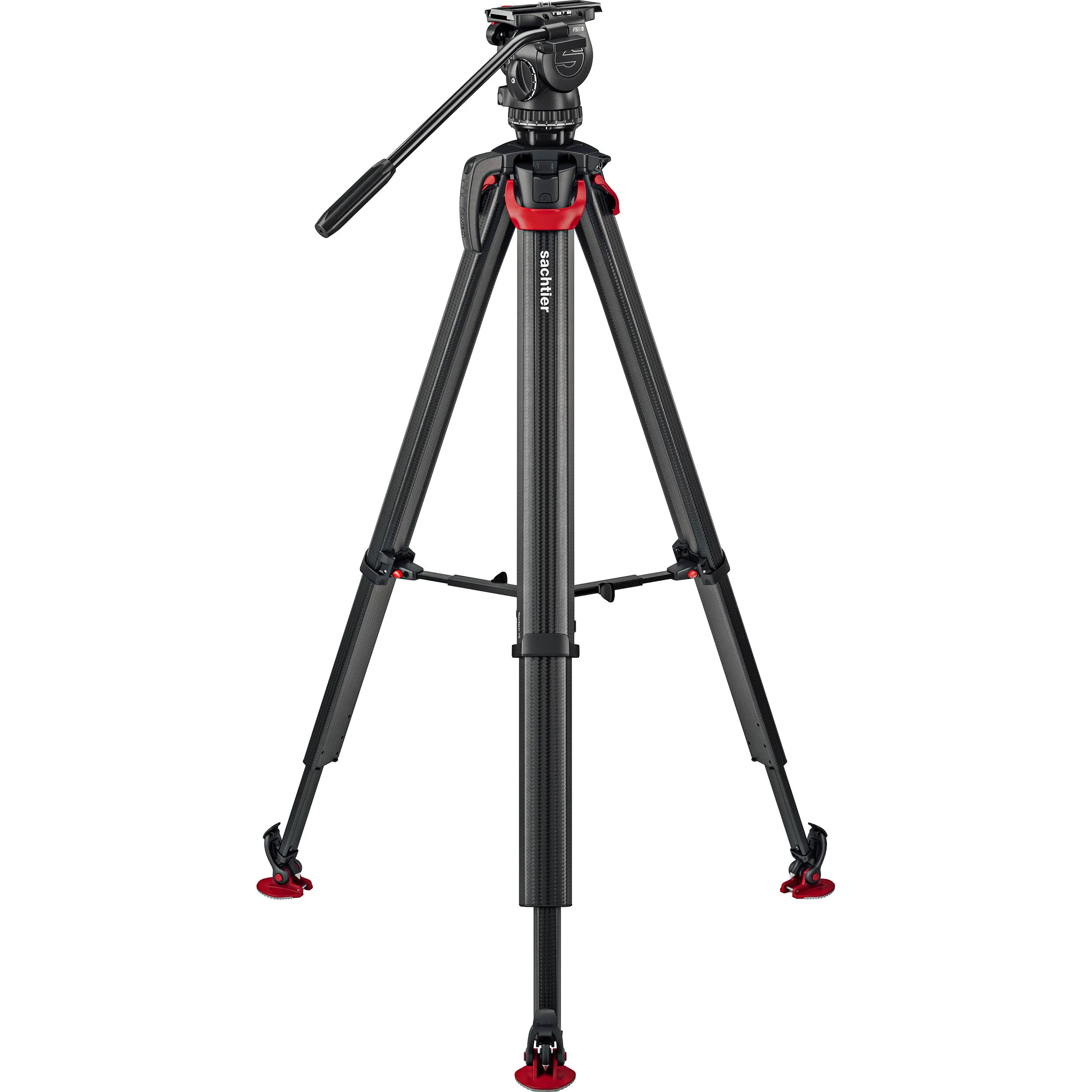

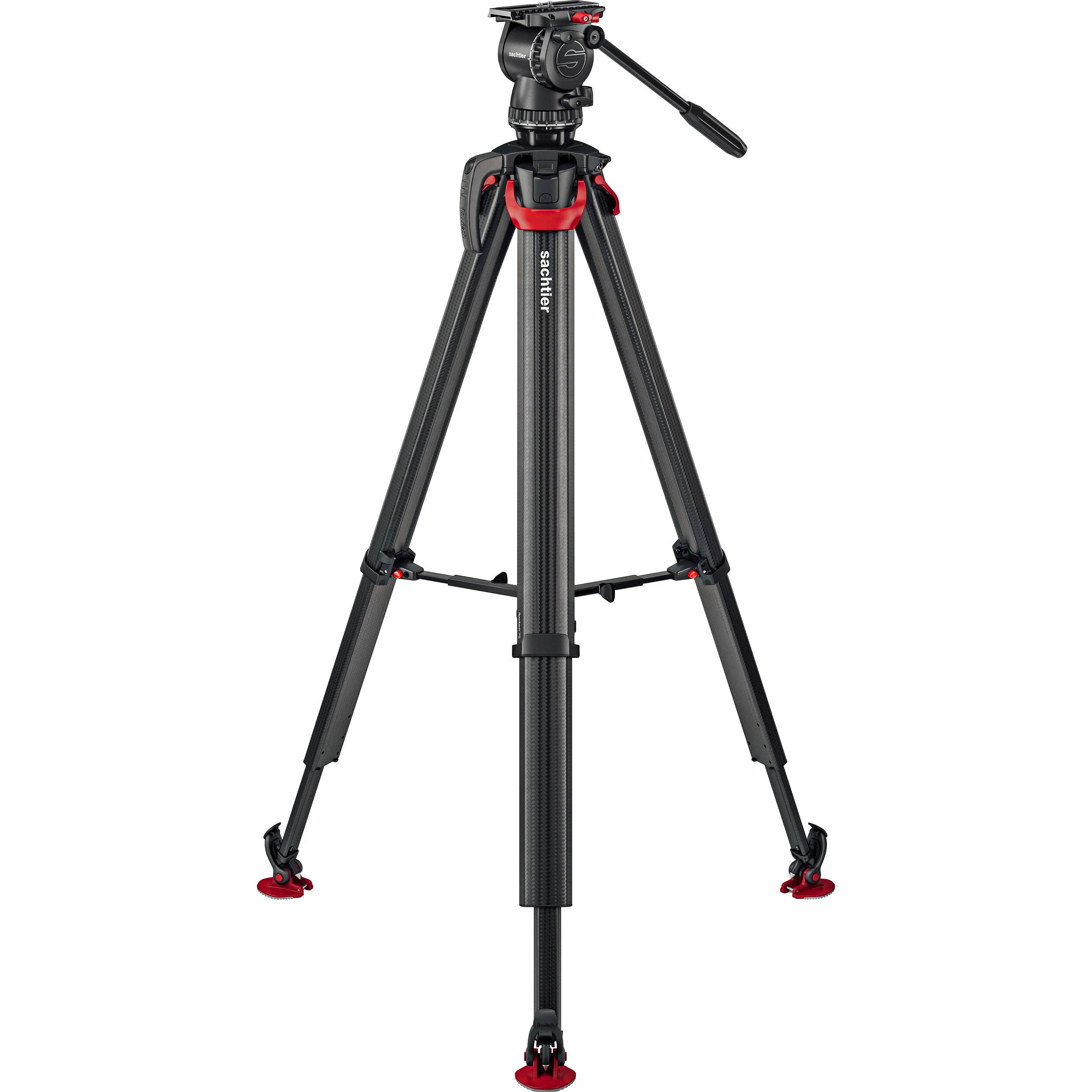

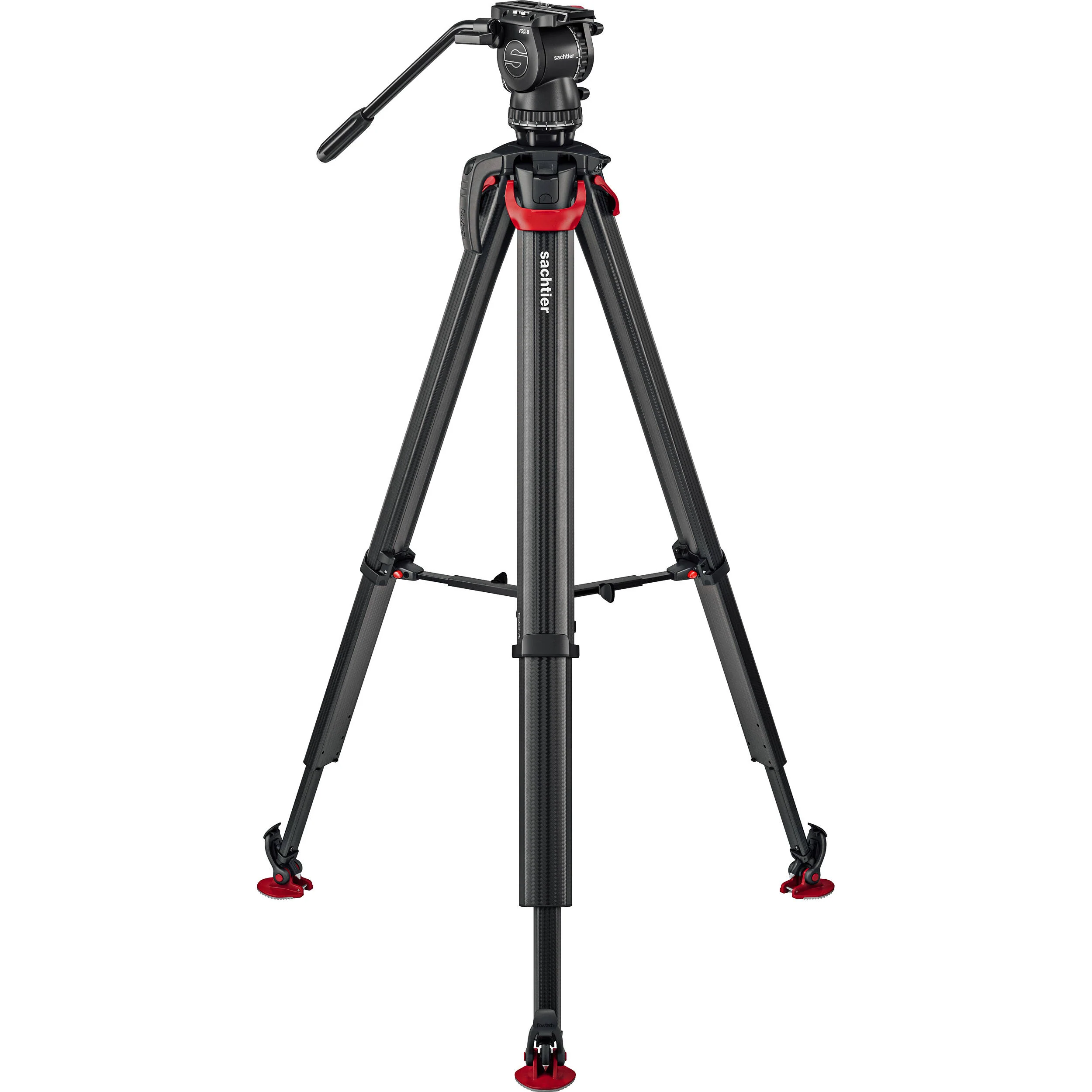

The flowtech 75 tripod offers a 2-stage carbon fiber design with unique, integrated quick release brakes and a hinge lock system that makes it possible to quickly deploy without the mid-level spreader for ultra-low or very high shots. The tripod legs support payloads up to 44 lb, and their ergonomic design is conducive to carrying over the shoulder or with the included carry handle. The legs are foldable and feature a magnetic lock for securing them in place as needed.
Items Included
- Sachtler FSB-8 Fluid Head & flowtech 75mm Tripod System MS Mk II
- Fluid Head
- Quick Release Plate
- Pan Handle
- Tripod Legs
- Mid-Level Spreader
- Carry Handle
- Padded Carry Bag
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
No additional resources available
Sachtler FSB 8 MKII Tripod System Specs
| Camera Mounting |
1/4"-20 or 3/8"-16 Screw (Quick Release Plate)
|
| Head Type |
Fluid Head
|
| Drag Control |
Yes
|
| Primary Material |
Carbon Fiber
|
| Load Capacity |
26.5 lb / 12 kg
|
| Maximum Working Height |
68.5" / 1.7 m
|
| Minimum Working Height |
68.5" / 174 cm
|
| Closed Length |
33.5" / 85.1 cm
|
| Weight |
13.9 lb / 6.3 kg
|
| Camera Mounting |
1/4"-20 or 3/8"-16 Screw (Quick Release Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
75 mm Half Ball with Threaded Flat Base
|
| Counter Balance |
Incremental 15-Step Plus 0
|
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Vertical Tilt |
+90° to -70°
|
| Lateral Tilt |
No
|
| Primary Material |
Carbon Fiber
|
| Leg Lock |
Flip Lock
|
| Leg Sections |
2
|
| Independent Leg Spread |
Yes
|
| Load Capacity |
26.5 lb / 12 kg
|
| Maximum Working Height |
68.5" / 1.7 m
|
| Center Column |
No
|
| Minimum Working Height |
68.5" / 174 cm
|
| Closed Length |
33.5" / 85.1 cm
|
| Bubble Level |
Yes (Illuminated)
|
| Detachable Monopod |
No
|
| Spreader Support |
Mid-Level
|
| Weight |
13.9 lb / 6.3 kg
|
| Package Weight |
20.9 lb
|
| Box Dimensions (LxWxH) |
42.5 x 10 x 9.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
