Rolls MX153 MixMate Mic/Line Mixer
HomeStore

Rolls MX153 MixMate Mic/Line Mixer

Rolls MX153 MixMate Mic/Line Mixer

  • 1/2 Rack Space Mic/Line Mixer
  • 2 Microphone & 3 Stereo Sources
  • Phantom Power
  • Signal Muting
  • Ideal for Commercial Installs

The Rolls MX153 MixMate is a compact two microphone and three stereo source mixer designed mainly for installation purposes. It's ideal for small restaurants, clubs, churches, schools, or any application where two paging or announcing microphones need to be mixed with stereo sources such as AM/FM tuners, CD players, jukeboxes, and video players. Priority talk over is provided on Mic Channel 1 for paging, and on Source Channel 3 for a jukebox, telephone, etc.

Two Microphone inputs with phantom power
Tone controls for each Mic input
Three stereo Source inputs
Bass and Treble controls on Sources 1 and 2
Priority ducking on Mic 1 and Source 3
Switchable Mono/Stereo unbalanced output
UPC: 675889015300
Input Impedance Mic: 600 Ohms, XLR balanced
Source: 22 kOhms RCA, 1/8" (3.5 mm) mini
Max Input Mic: -14 dBV, mic level max
Source: 24 dBV
Input Connectors 2 x XLR, Mic 1, 2
3 x Stereo RCA, Source 1, 2, 3
1 x Stereo 1/8" (3.5 mm), Linked to Source 3
Output Connectors 1 x Stereo RCA
Phantom Power +12 VDC
Maximum Gain Mic: 60 dB
Source: 26 dB
Tone Controls +/-12 dB 100 Hz bass
+/-12 dB 11 kHz treble
Noise Floor -80 dB
S/N Ratio 96 dB
Attenuation 60 dB
Power 12 VDC (Rolls PS27)
Dimensions 6.5 x 1.5 x 5.0" (165.1 x 38.1 x 127.0 mm)
Weight 2.00 lb (0.91 kg)
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 14.0 x 8.8 x 4.0"
In the Box
Rolls MX153 MixMate Mic/Line Mixer
  • PS27 12 VDC Power Supply
  • Limited 1-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$109.41

Original: $364.71

-70%
Rolls MX153 MixMate Mic/Line Mixer—

$364.71

$109.41

More Images

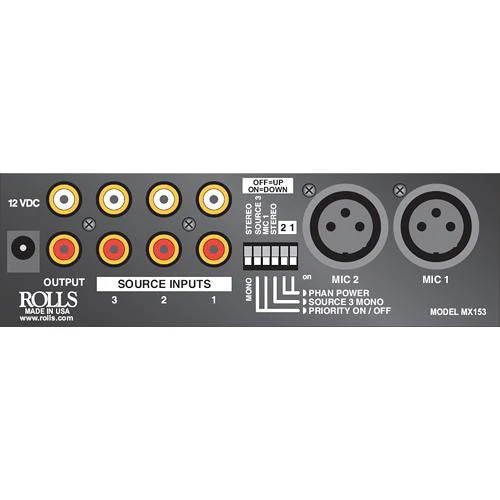

Rolls MX153 MixMate Mic/Line Mixer - Image 2

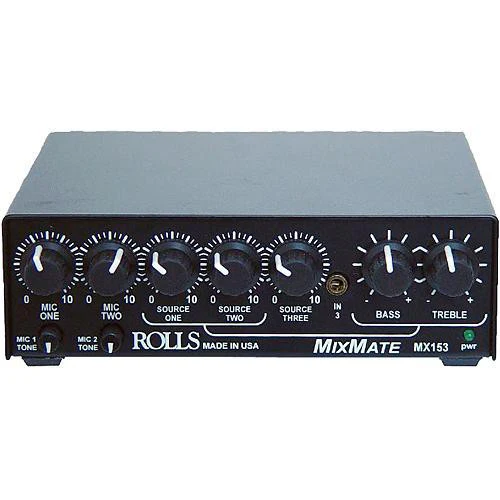

Rolls MX153 MixMate Mic/Line Mixer - Image 3
