RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)
HomeStore

RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)

RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)

RED DIGITAL CINEMA 720-0064 Overview

  • 1Description
  • 2
  • 3Compatibility
  • 4Expanded Interface
  • 5Status Screen
This RED PRO I/O Module from RED DIGITAL CINEMA provides a V-mount battery plate and additional power and communication interfaces for your KOMODO-X 6K digital cinema camera. The V-mount module mounts directly to the KOMODO-X camera's Micro-V mount plate and 9-pin EXT port.
Compatibility
  • RED KOMODO-X cinema camera
Expanded Interface
  • Pro video connectors include timecode in, genlock, and 4-pin control interfaces.
  • The module also provides one DC power input, one regulated 24V R/S port, and two unregulated 12V AUX ports.
Status Screen
  • The operator-side screen displays key voltage and battery percentage information.
  • A switch enables you to cut power to the module when you want to leave a battery on for an extended length of time.

In the Box

  • RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)
  • Limited 1-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Compatibility
    • Expanded Interface
    • Status Screen

    RED DIGITAL CINEMA 720-0064 Specs

    General
    Compatibility
    RED DIGITAL CINEMA KOMODO X
    Inputs / Outputs
    Other Ports
    EXT: 1 x 9-Pin
    Control: 1 x 4-Pin
    Timecode: 1 x 5-Pin
    Wireless
    Mobile App Compatible
    No
    Battery
    Battery Chemistry
    Lithium-Ion
    Power
    Power Output
    1 x 3-Pin Fischer R/S, 24 V, 3 A Max., Regulated
    2 x 2-Pin Fischer R/S, 12 V, 3 A Combined Max., Unregulated
    Environmental
    Operating Temperature
    32 to 104°F / 0 to 40°C
    Storage Temperature
    -4 to 122°F / -20 to 50°C
    Physical
    Mounting
    1 x Micro V-Mount
    1 x V-Mount
    Color
    Black
    Material of Construction
    Aluminum Alloy
    Dimensions
    3.9 x 3.4 x 2.8" / 98 x 85.8 x 71 mm
    Weight
    14.5 oz / 410 g
    Packaging Info
    Package Weight
    1.575 lb
    Box Dimensions (LxWxH)
    6.9 x 4.9 x 3.7"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $1,905.51
    RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)—
    $1,905.51

    More Images

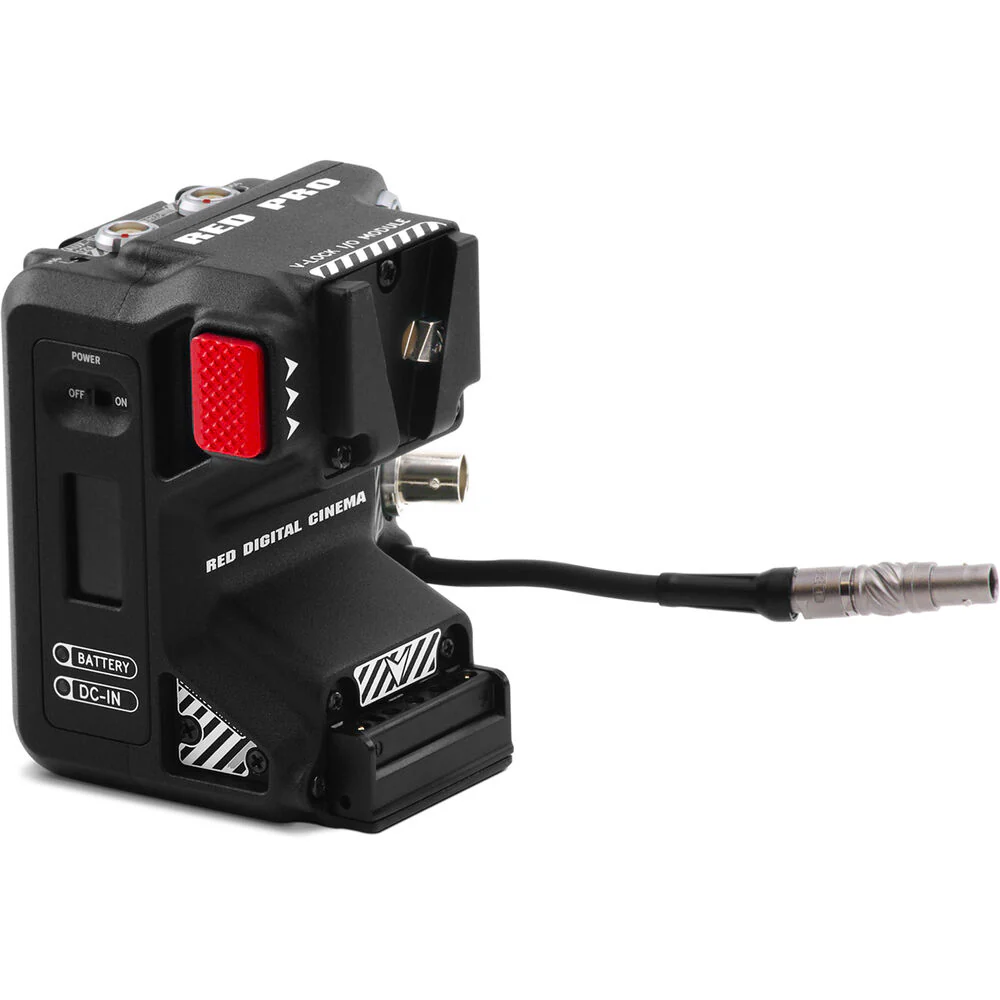

    RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount) - Image 2

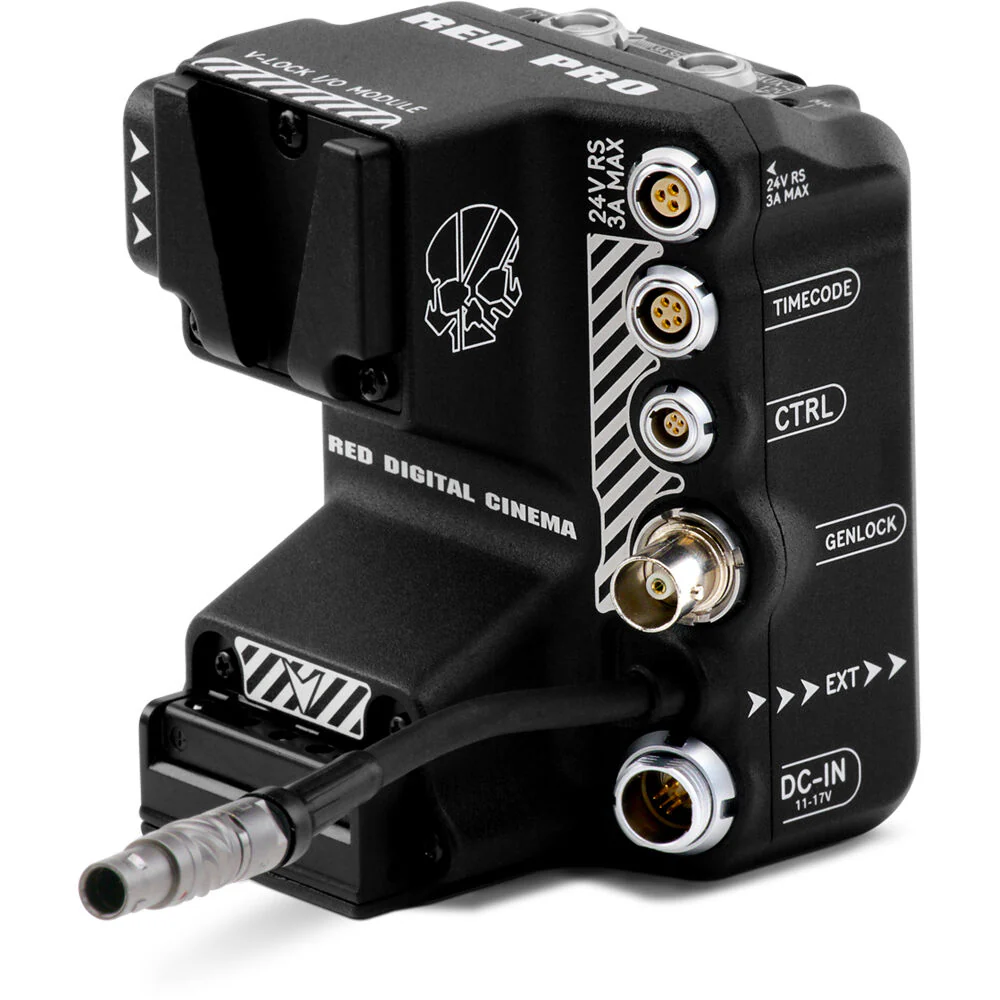

    RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount) - Image 3

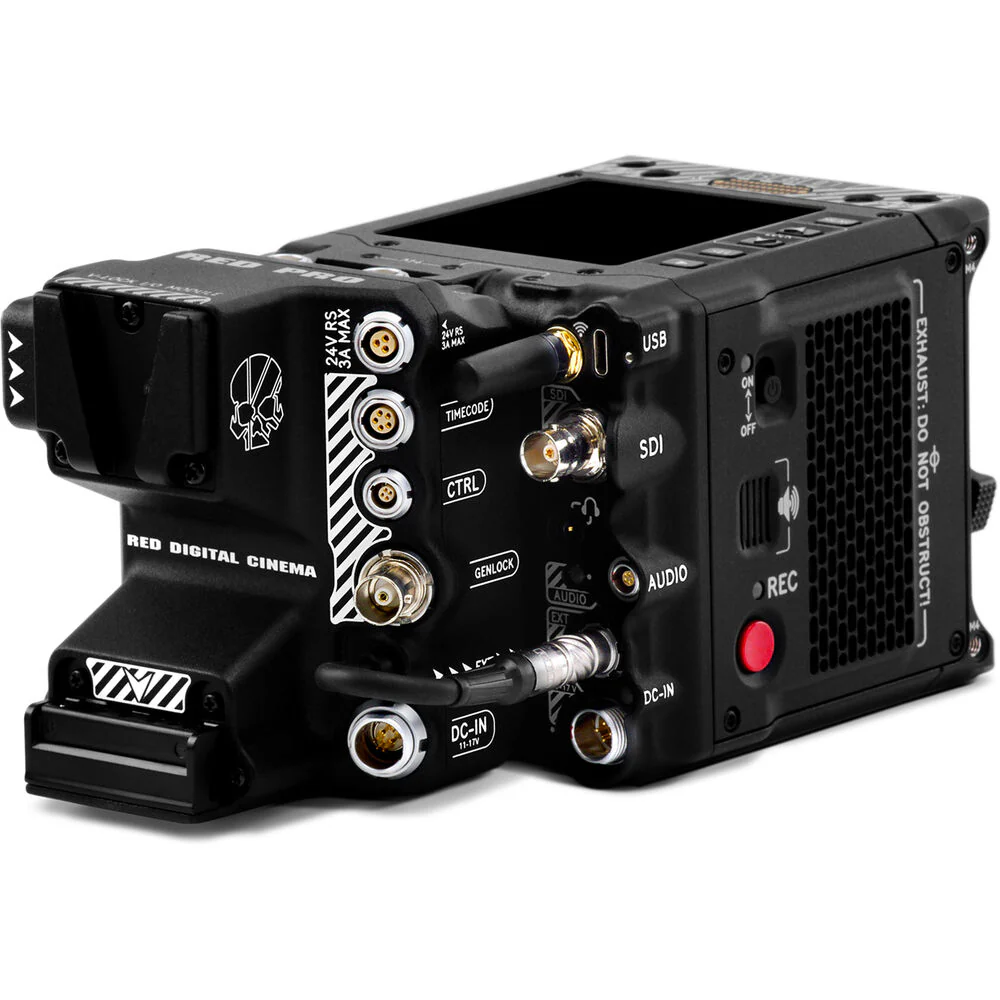

    RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount) - Image 4

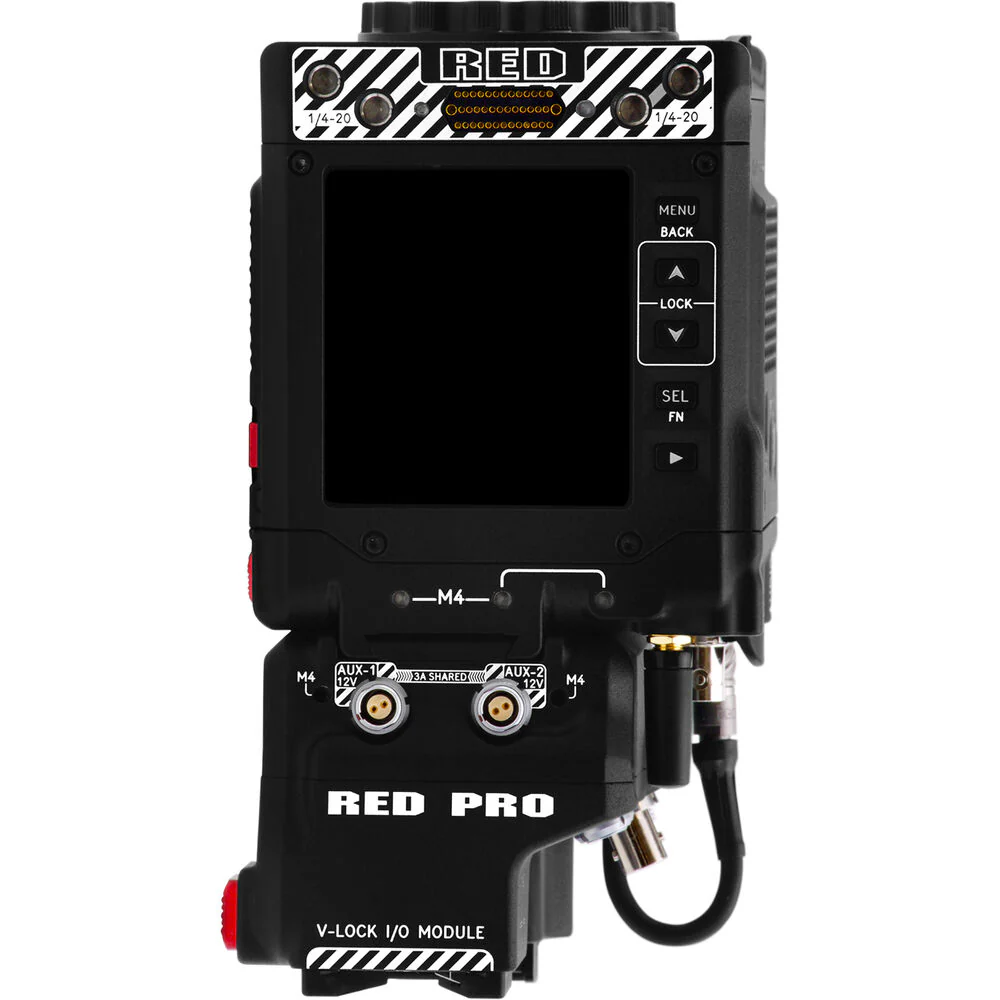

    RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount) - Image 5
