RADIALL R125055000 RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG402, Brass
RADIALL R125055000 RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG402, Brass

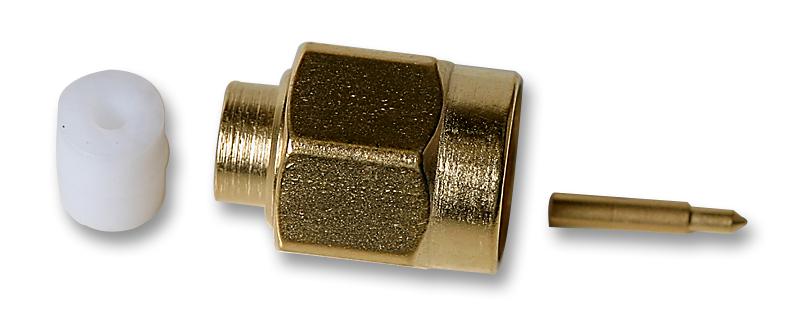

The R125055000 is a straight SMA Plug with gold over nickel plated brass center contact, gold over nickel plated stainless steel body, for 0.141 cable. This SMA series plug has PTFE insulation, cable mounting and solder termination. The stainless steel SMA connector has been designed for applications where reliability, durability, robustness and high frequency are very important. Radiall offers an extended frequency SMA range allowing coaxial system operation up to 27GHz. This series mates with the standard SMA series and maintains the same mechanical characteristics (part numbers ending with 700, 701 or 702).
- Subminiature coaxial connector
- Screw-on coupling
- High RF performance
- Wide hermetically sealed range
- Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
- -65 to 105°C Temperature rating
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Connector Type: SMA Coaxial |
| Connector Body Style: Straight Plug |
| Coaxial Termination: Solder |
| Impedance: 50ohm |
| Coaxial Cable Types: RG402 |
| Contact Material: Brass |
| Contact Plating: Gold Plated Contacts |
| Frequency Max: 18GHz |
| Connector Mounting: Cable Mount |
| Product Range: - |
Other details
| Brand | RADIALL |
| Part Number | R125055000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
