Premier Mounts PBC-UMW Universal Projector Mount (White)
HomeStore

Premier Mounts PBC-UMW Universal Projector Mount (White)

Premier Mounts PBC-UMW Universal Projector Mount (White)

Premier Mounts PBC-UM Overview

  • 1Description
  • 2Easy Alignment
  • 3Uses Standard National Tapered Pipe
  • 4Mount on Nearly Any Ceiling or Wall
  • 5Cable Management

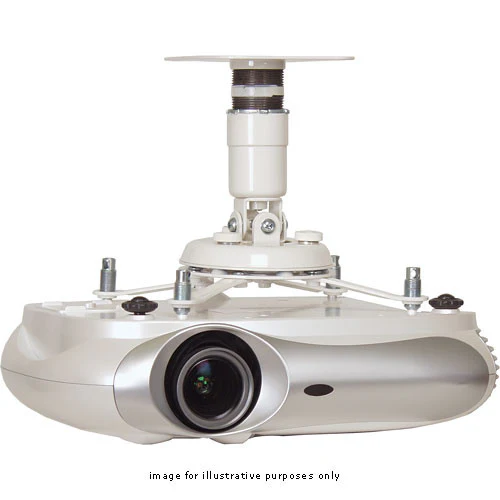

Premiere Mounts' PBC-UMW Universal Projector Mount with 1.5" Coupler (White) fits most projectors weighing less than 60 lb and installs easily on flat, angled, or cathedral ceilings. Unique leveling barrels adapt to any mounting surface for a perfectly level installation despite pitched ceilings.

Four double-jointed support arms on the adapter flexibly span most screw hole patterns, including irregularly-spaced ones. The hinged arms can also be angled away from lamp and filter access panels, simplifying projector maintenance.

An adjustable height channel uses standard 1.5" threaded pipe that can accept an extension column for height adjustment of your projector. The PBC-UMW offers 360° rotation and more than ±20° roll and pitch adjustment, making it easy to align your projector.

Easy Alignment
You can rotate your projector a full 360° while separately adjusting pitch and roll more than 20° in either direction.
Uses Standard National Tapered Pipe
The PBC-UMW connects with industry-standard 1.5" threaded pipe for custom-height installations and professional compatibility. If 12.5" of vertical extension isn't enough, you can buy separate orders of NTP-1.5 X Custom length pipe to suit your needs.
Mount on Nearly Any Ceiling or Wall
Premier Mounts offers a wide range of accessories (sold separately) to handle special situations including suspended and concrete ceilings and even wall mounting. Right out of the package the Universal Mount can install on traditional, vaulted, or cathedral ceilings using the included vertical extender and leveling barrel technology.
Cable Management
Wires can be passed through the center channel to conceal them and keep them out of harm's way.
UPC: 829973203054

In the Box

  • Premier Mounts PBC-UMW Universal Projector Mount (White)
  • Upper Assembly
  • Universal Mounting Bracket
  • 3 x #14 Wood Screws
  • 4 x M3 x 16mm Phillips Head Screws
  • 4 x M3 Flat Washers
  • 4 x M5 Hex Head Screws
  • 4 x M4 Hex Head Screws
  • 4 x Plastic Barrel Caps
  • 4 x M6 Hex Head Screws
  • M3 Allen Wrench
  • M5 Allen Wrench
  • Green Level
  • Limited Lifetime Manufacturer Warranty
    Table of Contents
    • Description
    • Easy Alignment
    • Uses Standard National Tapered Pipe
    • Mount on Nearly Any Ceiling or Wall
    • Cable Management

    Premier Mounts PBC-UM Specs

    Load Capacity 60 lb / 27 kg
    Height 7" / 18 cm
    Pitch +20.00° / -20.00°
    Roll +20.00° / -20.00°
    Yaw +360.00° / -360.00°
    Diameter 19" / 488 cm
    Depth From Mounting Source 2.5" / 6.35 cm
    Construction Steel
    Dimensions Arms: Up to 15.5" / 39.37 cm Diameter, Fully Extended
    Ceiling Plate and Adapter: 6.72 x 7.125 x 6.0 / 17.07 x 18.1 x 16.24 cm
    Weight 7.4 lb / 3.4 kg
    Packaging Info
    Package Weight 7.45 lb
    Box Dimensions (LxWxH) 14.5 x 10.1 x 7.7"
