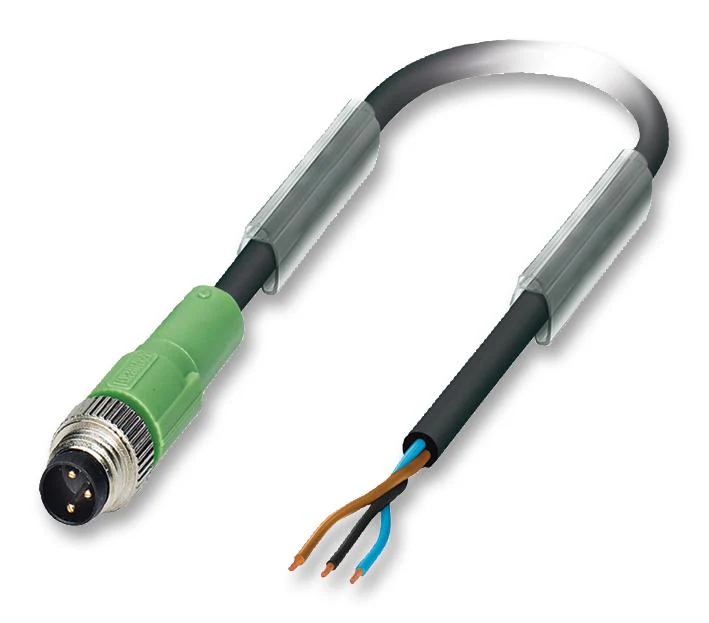

PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR Sensor Cable, PUR, M8 Plug, Free End, 3 Positions, 1.5 m, 4.9 ft 1681664, GTIN UPC EAN: 4017918158323
PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR Sensor Cable, PUR, M8 Plug, Free End, 3 Positions, 1.5 m, 4.9 ft 1681664, GTIN UPC EAN: 4017918158323
The SAC-3P-M 8MS/1,5-PUR is a 1.5m A-coded halogen-free PUR Sensor/Actuator Cable with 3-position M8 straight plug to free end connection. This sensor cable comes with CuSn contacts, glass-filled TPU contact carrier, hardly inflammable self-extinguishing TPU grip body and nickel-plated zinc die-cast knurls.
- Easy and safe - 100% Electrically tested plug-in components
- Resistant to oil, flame, salt water, hydrolysis and microbe
- Black-grey RAL 7021 external sheath
- PUR outer sheath and PP conductor insulation
- 4A Rated current at 40°C
- 60V Rated voltage
- >=100MR Insulation resistance
Applications
Sensing & Instrumentation
Product details
| Connector Type A: M8 Plug |
| Connector Type B: Free End |
| No. of Positions: 3 Positions |
| Cable Length - Metric: 1.5m |
| Cable Length - Imperial: 4.9ft |
| Product Range: - |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SAC-3P-M 8MS/1,5-PUR |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$5.94
Original: $19.81
-70%PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR Sensor Cable, PUR, M8 Plug, Free End, 3 Positions, 1.5 m, 4.9 ft 1681664, GTIN UPC EAN: 4017918158323—
$19.81
$5.94PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR Sensor Cable, PUR, M8 Plug, Free End, 3 Positions, 1.5 m, 4.9 ft 1681664, GTIN UPC EAN: 4017918158323
The SAC-3P-M 8MS/1,5-PUR is a 1.5m A-coded halogen-free PUR Sensor/Actuator Cable with 3-position M8 straight plug to free end connection. This sensor cable comes with CuSn contacts, glass-filled TPU contact carrier, hardly inflammable self-extinguishing TPU grip body and nickel-plated zinc die-cast knurls.
- Easy and safe - 100% Electrically tested plug-in components
- Resistant to oil, flame, salt water, hydrolysis and microbe
- Black-grey RAL 7021 external sheath
- PUR outer sheath and PP conductor insulation
- 4A Rated current at 40°C
- 60V Rated voltage
- >=100MR Insulation resistance
Applications
Sensing & Instrumentation
Product details
| Connector Type A: M8 Plug |
| Connector Type B: Free End |
| No. of Positions: 3 Positions |
| Cable Length - Metric: 1.5m |
| Cable Length - Imperial: 4.9ft |
| Product Range: - |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SAC-3P-M 8MS/1,5-PUR |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
