PHOENIX CONTACT 1717729 Wire-To-Board Terminal Block, 7.62 mm, 2 Ways, 26 AWG, 16 AWG, 1.5 mm², Screw GTIN UPC EAN: 4017918024659 GMKDS 1,5/ 2-7,62
PHOENIX CONTACT 1717729 Wire-To-Board Terminal Block, 7.62 mm, 2 Ways, 26 AWG, 16 AWG, 1.5 mm², Screw GTIN UPC EAN: 4017918024659 GMKDS 1,5/ 2-7,62

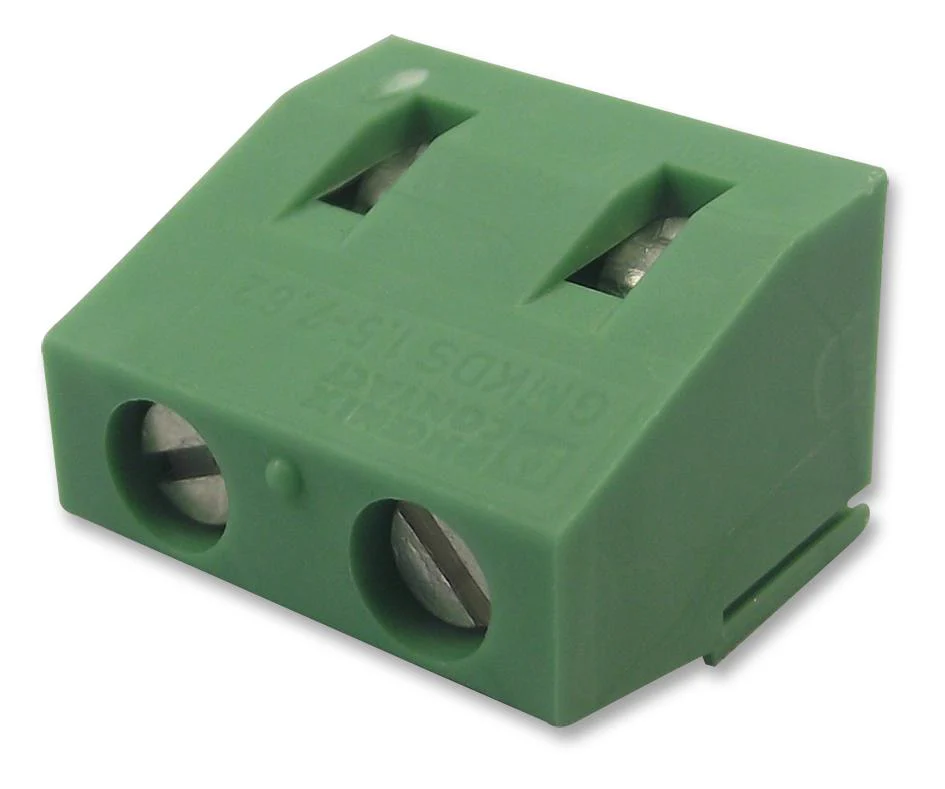

The 1717729 is a 2-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This GMKDS 1,5/ 2-7,62 terminal block has fully developed contact geometries and surfaces. It can be consistently connected in series with the corresponding standard models of the MKDS 1,5 range. It accepts 26 to 16AWG wire range.
- Space-saving and safe
- 6.5mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 7.62mm |
| No. of Positions: 2Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 17.5A |
| Rated Voltage: 630V |
| Block Orientation: Through Hole Right Angle |
| Product Range: GMKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1717729 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$3.42
