PHOENIX CONTACT 1522503 Sensor Cable, M12 Plug, Free End, 8 Positions, 3 m, 9.8 ft 1522503, SAC-8P-M12MS/ 3,0-PUR
PHOENIX CONTACT 1522503 Sensor Cable, M12 Plug, Free End, 8 Positions, 3 m, 9.8 ft 1522503, SAC-8P-M12MS/ 3,0-PUR
Product Overview

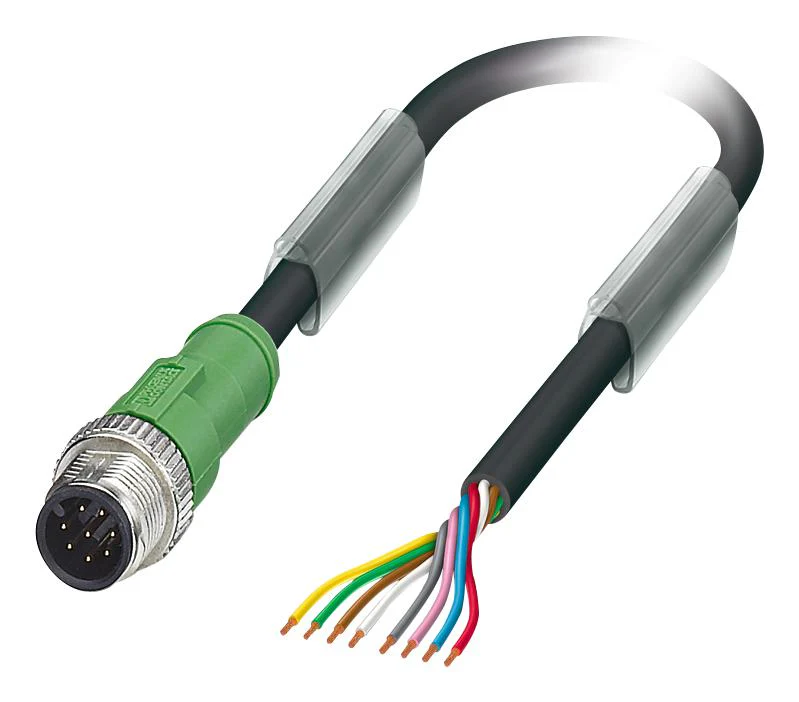

The 1522503 is a 3m A-coded halogen-free PUR Sensor/Actuator Cable with 8-position M12 straight plug to free/stripped end connection. This sensor cable comes with CuSn contacts, glass-filled TPU contact carrier, hardly inflammable self-extinguishing TPU grip body and nickel-plated zinc die-cast knurls.
- Easy and safe - 100% Electrically tested plug-in components
- Resistant to oil, flame, hydrolysis and microbe
- Black-grey RAL 7021 external sheath
- PUR outer sheath, PE filler and PP conductor insulation
- 2A Rated current at 40°C
- 30V Rated voltage
- ?100M? Insulation resistance
Applications
Sensing & Instrumentation
Product details
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1522503 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
