OMEGA TXDIN1600S Strain Bridge, Load Cell Conditioner, Smart Powered, DC Supply, -38 to 38mV, mA, V O/P, Bridge
OMEGA TXDIN1600S Strain Bridge, Load Cell Conditioner, Smart Powered, DC Supply, -38 to 38mV, mA, V O/P, Bridge
Product Overview

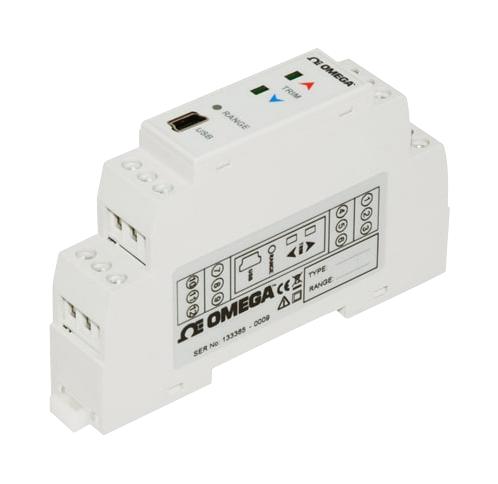

TXDIN1600S is a smart powered DIN-rail mount load-cell transmitter for use with strain gauges or load cell signals. The product has a built-in capability to scale the input signal to a process value while the output stage offers either voltage, bipolar voltage or active/passive current re-transmission signals. The device is provided with two front panel push buttons that can be configured to perform one of two functions or be disabled.
- Universal current, bipolar voltage outputs, USB programmable
- Input range from 0.2 to 7.5MV/V, 5V excitation
- Remote tare, front panel push button configuration
- Bridge input is -7.6 to 7.6mV/V (-38 to 38)mV at 5V excitation
- 5Volts DC ± 0.1V at 59mA voltage
- <lt/>1W full power
- Operating ambient temperature is -30 to 70°C
- 19200 baud rate, USB 2.0 user interface
- DIN 43880, colour grey, material Polyimide 6.6
Product details
Other details
| Brand | OMEGA |
| Part Number | TXDIN1600S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
