OEG - TE CONNECTIVITY OJE-SS-124DM,000 General Purpose Relay, OJE Series, Power, Non Latching, SPST-NO, 24 VDC, 5 A
OEG - TE CONNECTIVITY OJE-SS-124DM,000 General Purpose Relay, OJE Series, Power, Non Latching, SPST-NO, 24 VDC, 5 A
- Small size
- Standard class E insulation
- 450mW Coil power
- -30 to 85�C Ambient temperature range
Applications
Consumer Electronics, HVAC, Industrial
Product details
| Contact Material | Silver |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Coil Resistance | 1.28kohm |
| Product Range | OJE Series |
| Relay Terminals | Solder |
| Contact Current | 5A |
| Approvals & Standards | VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | SPST-NO |
| Contact Voltage VDC | 30VDC |
Other details
| Brand | OEG - TE CONNECTIVITY |
| Part Number | OJE-SS-124DM,000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |

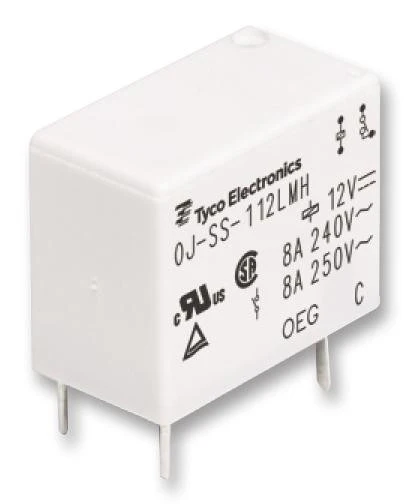

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
