Neewer DS007 Overhead Camera Stand Desk Mount Rig
Neewer Desktop Live Overhead Broadcast Camera... Overview

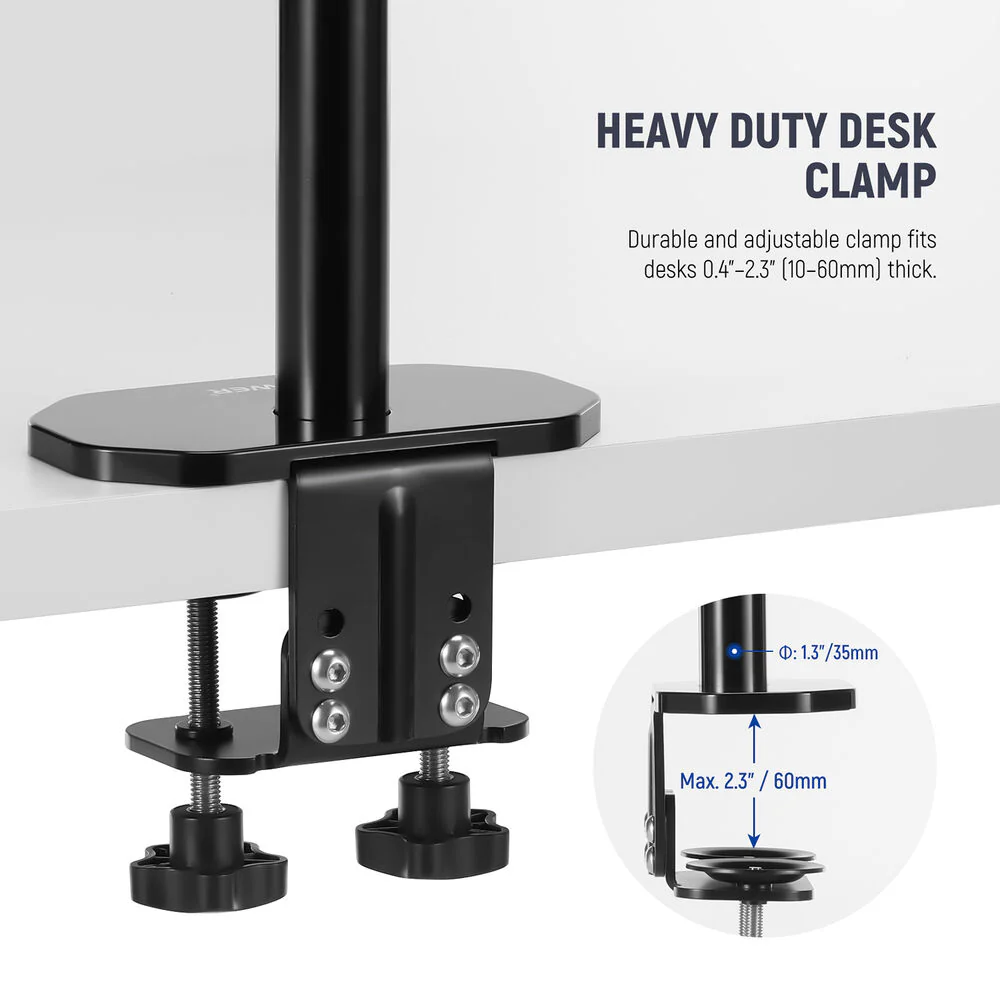

Set up a customized streaming or podcasting configuration with this DS007 Overhead Camera Stand Desk Mount Rig from Neewer. The rig includes a 1.8' center column with a 0.4 to 2.4" clamping range. Four boom arms can be slid onto the center column and feature different mounts?a 1/4"-20 screw, ball head, V-mount, and microphone holder. A 5/8" stud to 1/4"-20 screw expands compatibility even further.

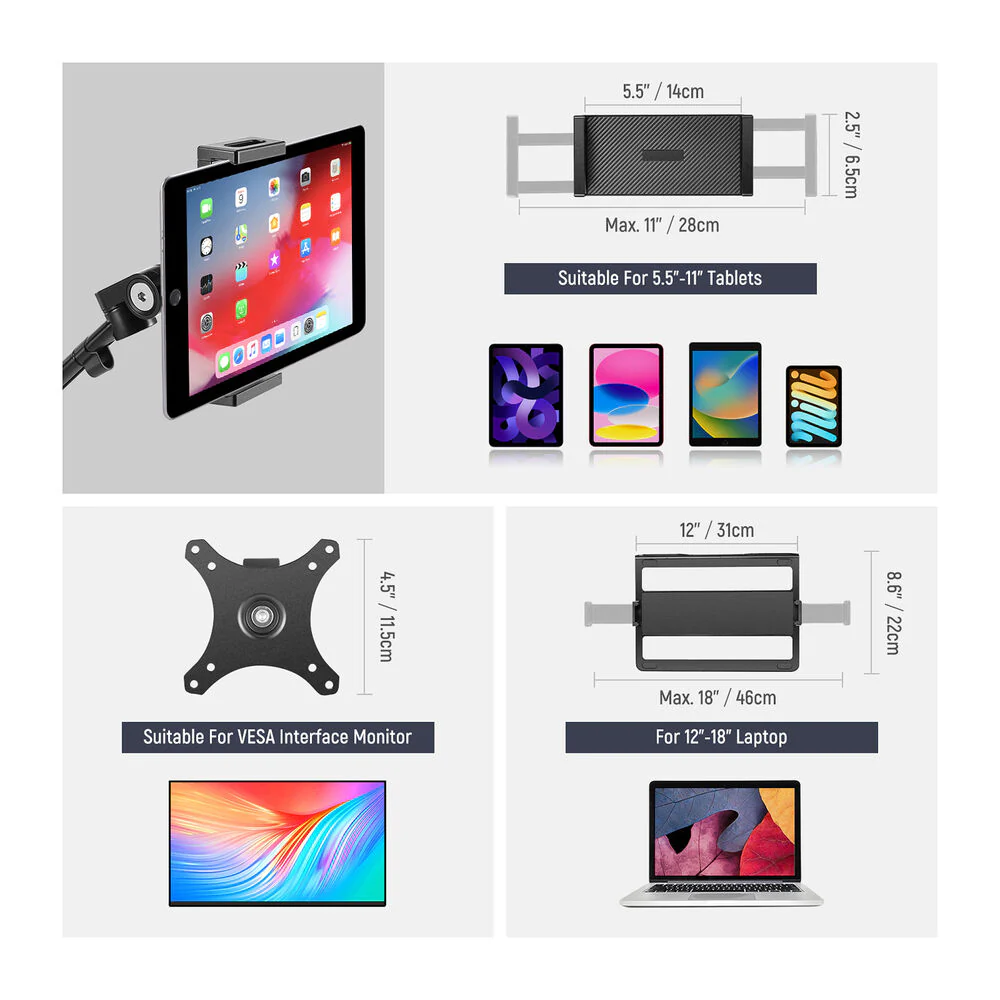

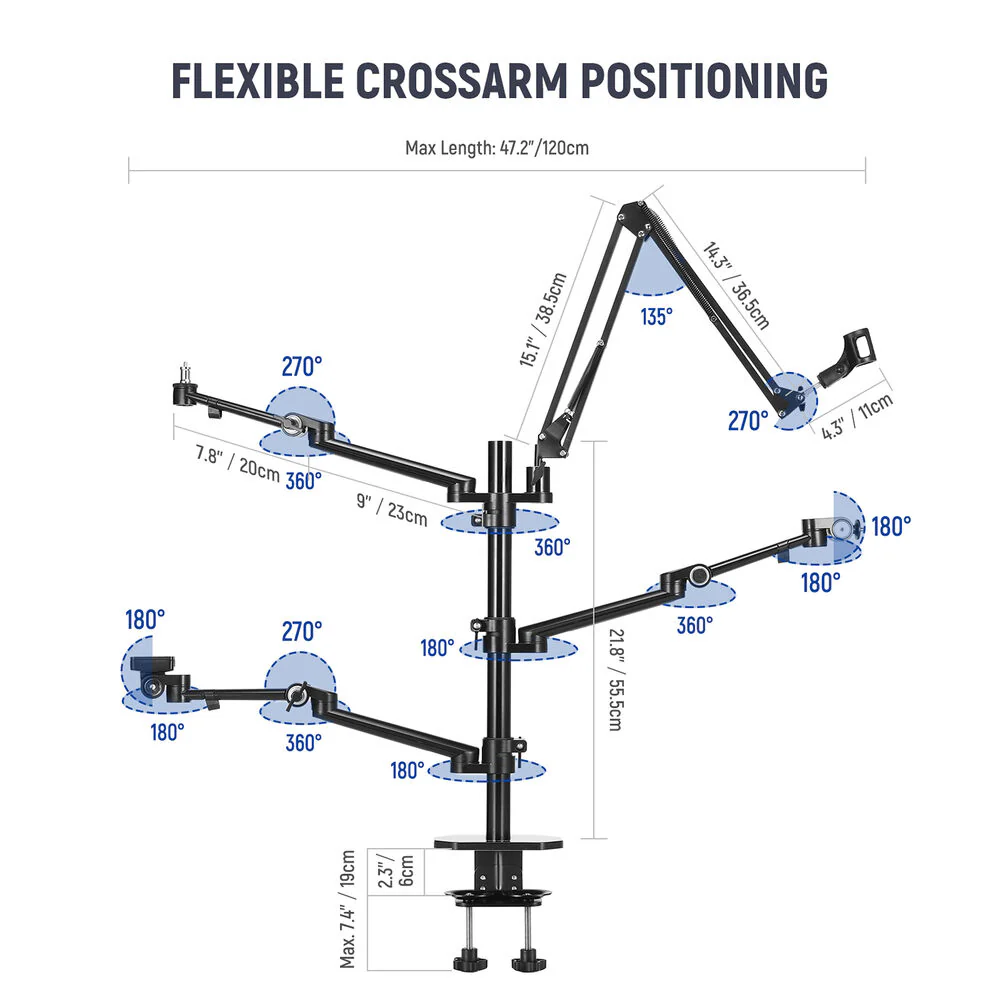

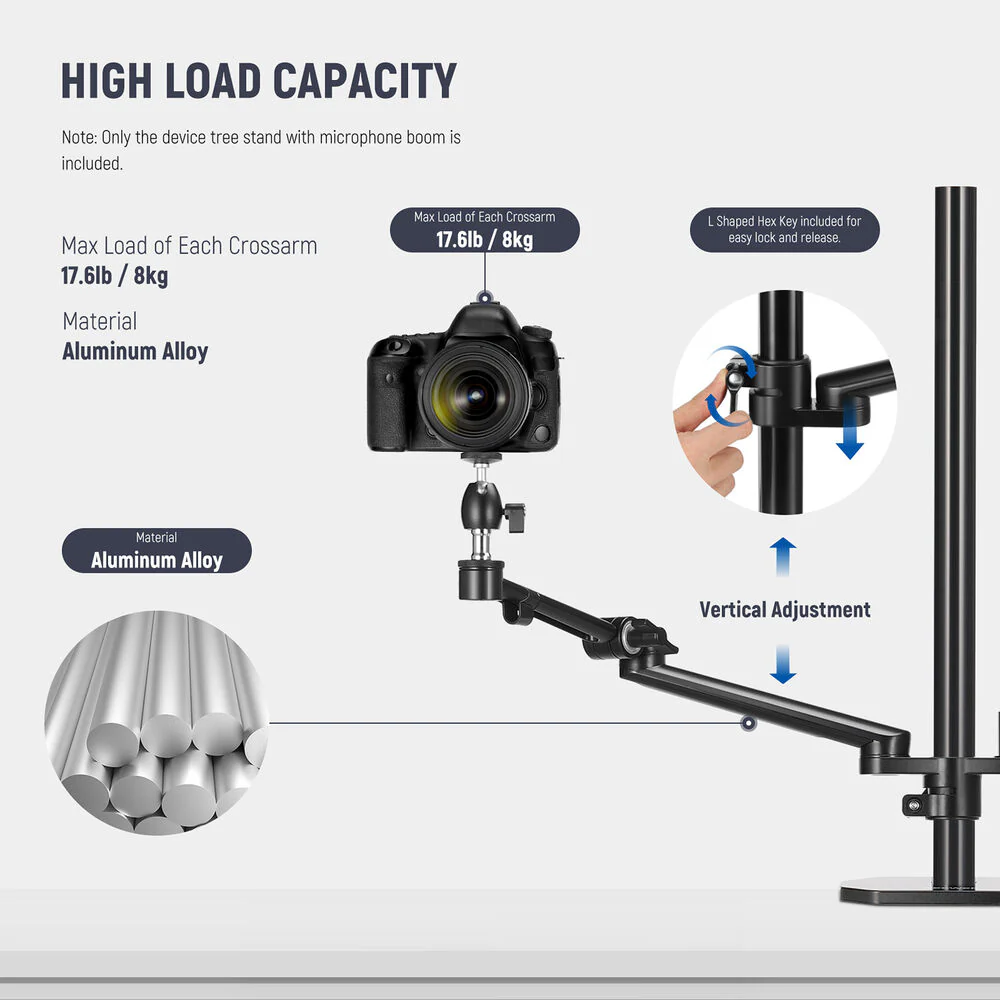

Once your accessories of choice are attached, the boom arms can be rotated 360? and tilted 270? for optimal positioning. The entire rig has a 17.6 lb load capacity when fully assembled. Use the included laptop holder with the V-mount slot to have your personal computer mounted at eye level. A VESA mount adapter can attach your monitor display to the rig. A tablet clamp secures to the ball head as a secondary screen or teleprompter.
Items Included
- Neewer DS007 Overhead Camera Stand Desk Mount Rig
- Center Column
- Microphone Boom Arm
- Boom Arm with Ball Head
- Boom Arm with 1/4"-20 Screw
- Boom Arm with V-Mount
- VESA Mount Adapter
- Laptop Holder
- Tablet Clamp
- Ball Head
- 5 x M4 Screw
- 5 x M5 Screw
- Allen Key (5mm)
- Allen Key (6mm)
- Allen Key Buckle
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Neewer Desktop Live Overhead Broadcast Camera... Specs
| Mounting |
Stand/Surface Mount: Ball Head
|
| Included Adapter |
1x 5/8" Stud with 1/4"-20 Male Screw
|
| Clamping Range |
0.4 2.4" / 10 to 60 mm
|
| Compatible Pipe |
1.4" / 35 mm Diameter Pipe
|
| Color |
Black
|
| Pan |
180 to 360?
|
| Tilt |
180 to 270?
|
| Mounting |
Stand/Surface Mount: Ball Head
|
| Included Adapter |
1x 5/8" Stud with 1/4"-20 Male Screw
|
| Clamping Range |
0.4 2.4" / 10 to 60 mm
|
| Compatible Pipe |
1.4" / 35 mm Diameter Pipe
|
| VESA Mounting Pattern |
Yes
|
| Materials |
Aluminum Alloy, Rubber
|
| Dimensions |
Height: 1.8' / 55 cm (Center Column)
Length: 1.7' / 52 cm (Boom Arms) |
| Weight |
13.9 lb / 6.3 kg
|
| Package Weight |
18 lb
|
| Box Dimensions (LxWxH) |
30 x 14.75 x 7.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
