MuxLab HDMI 2.0 4K Extender Kit (164')
MuxLab HDMI 2.0 Extender Overview

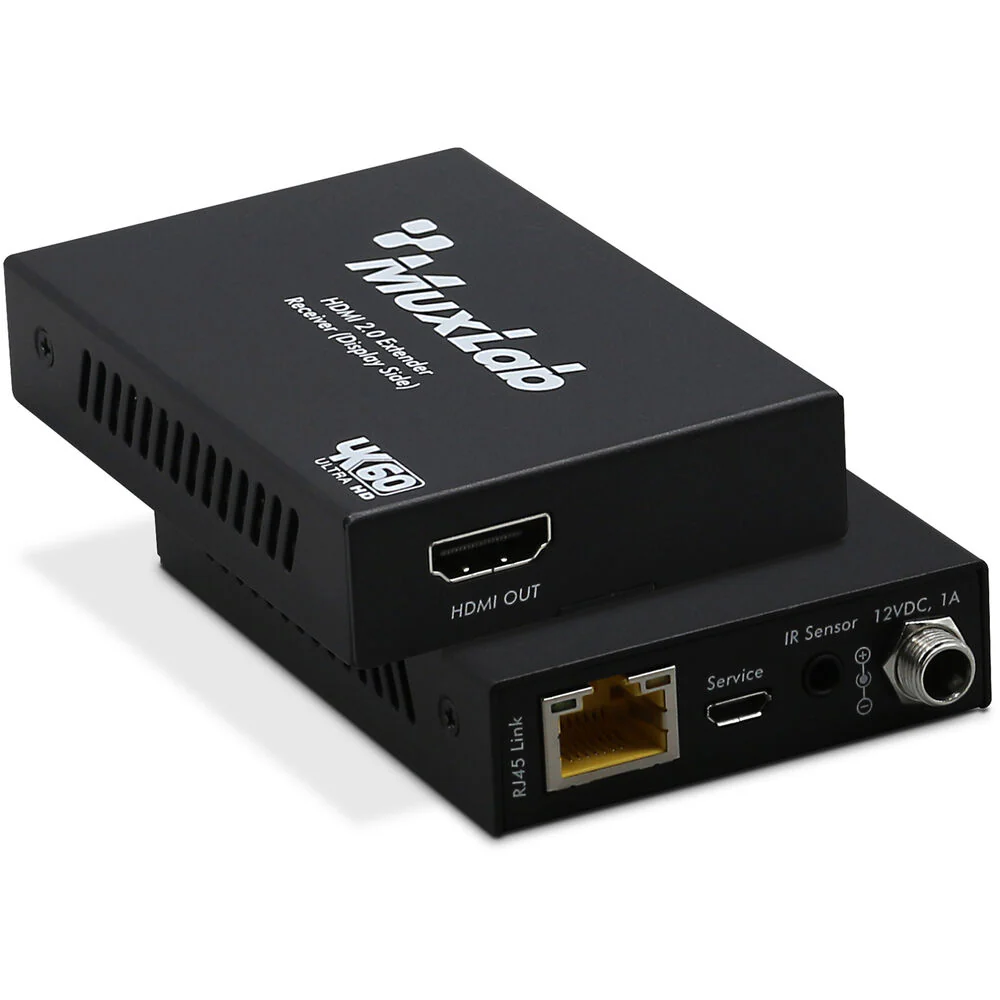

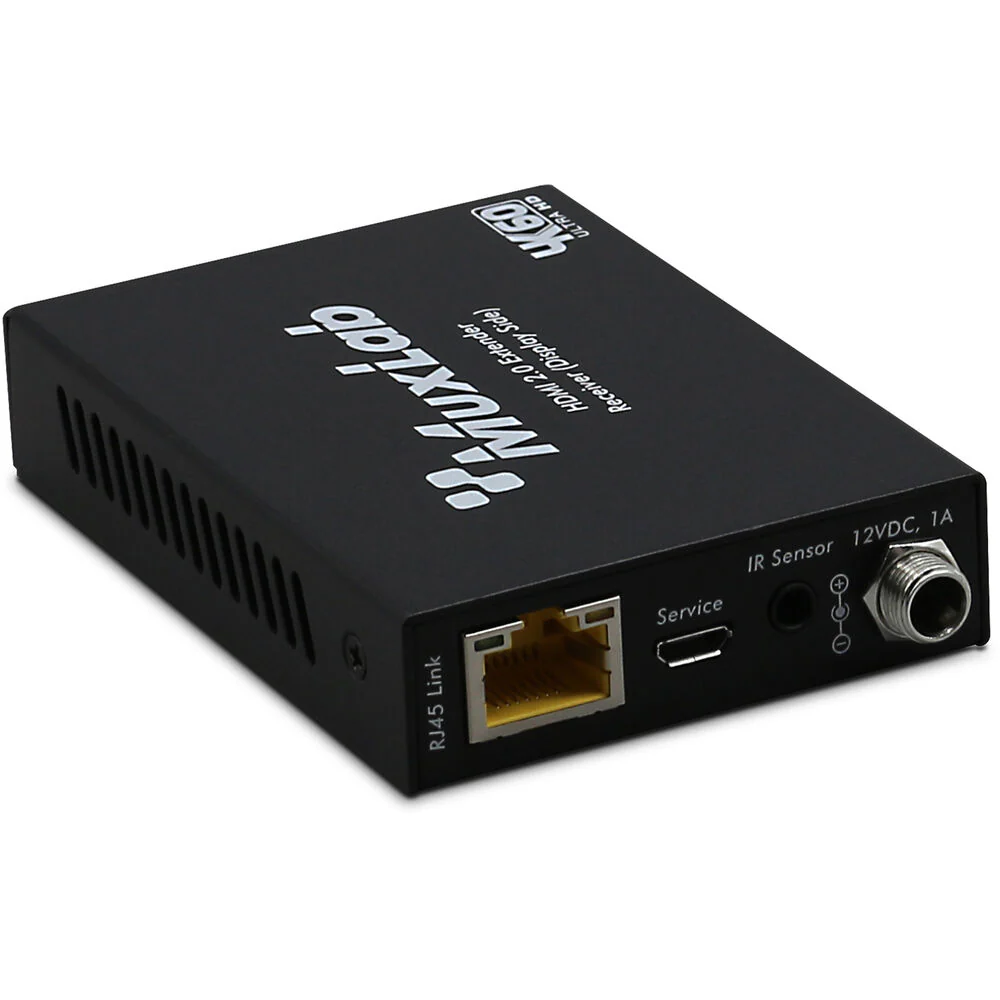

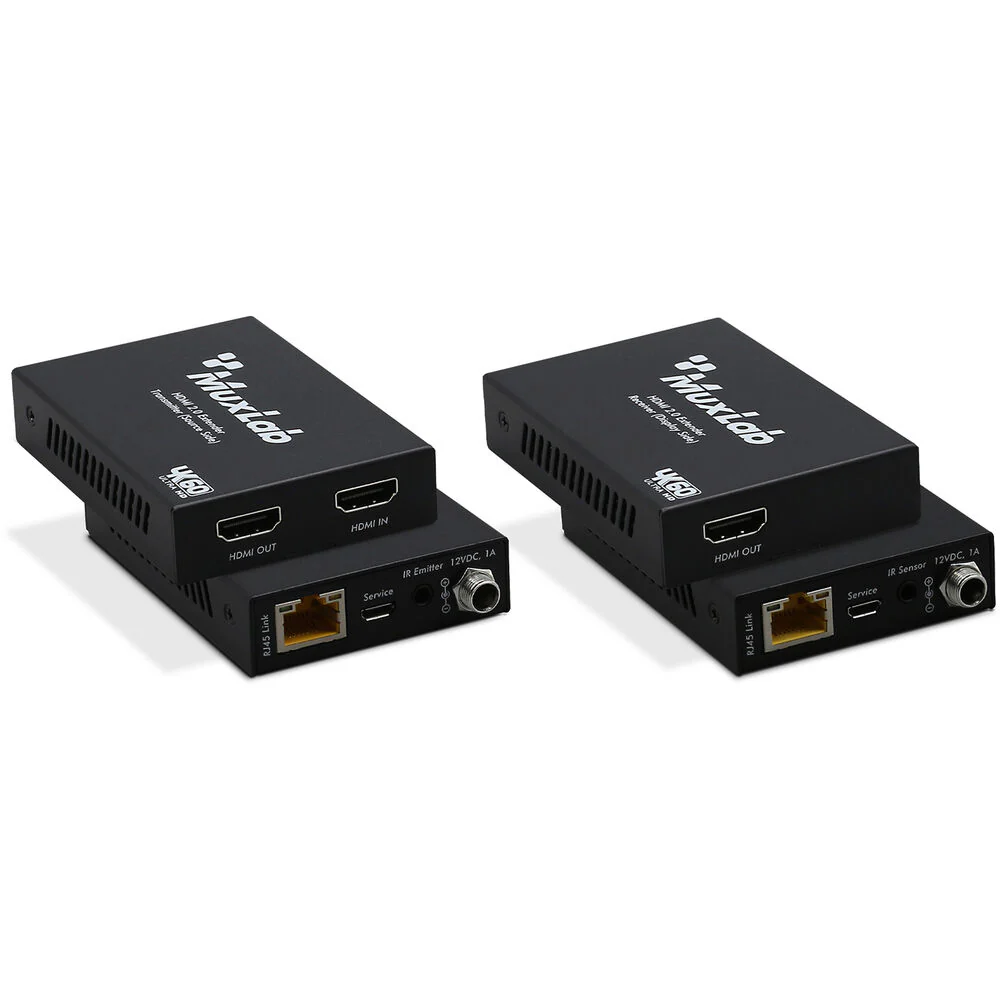

Transmit and receive up to 4K HDMI video and audio signals over an extended 164' using an RJ45 connection with this HDMI 2.0 4K Extender Kit from MuxLab. This transmitter and receiver kit enables you to transmit up to DCI 4K60 4:4:4 HDR video from an HDMI source such as a Blu-ray device, game console, cable box, or laptop to a remotely located display over Cat 5e or 6 cable. Only one power adapter is required, as this set supports PoC (power-over-cable) to provide power via the RJ45 connection from one unit to the other.

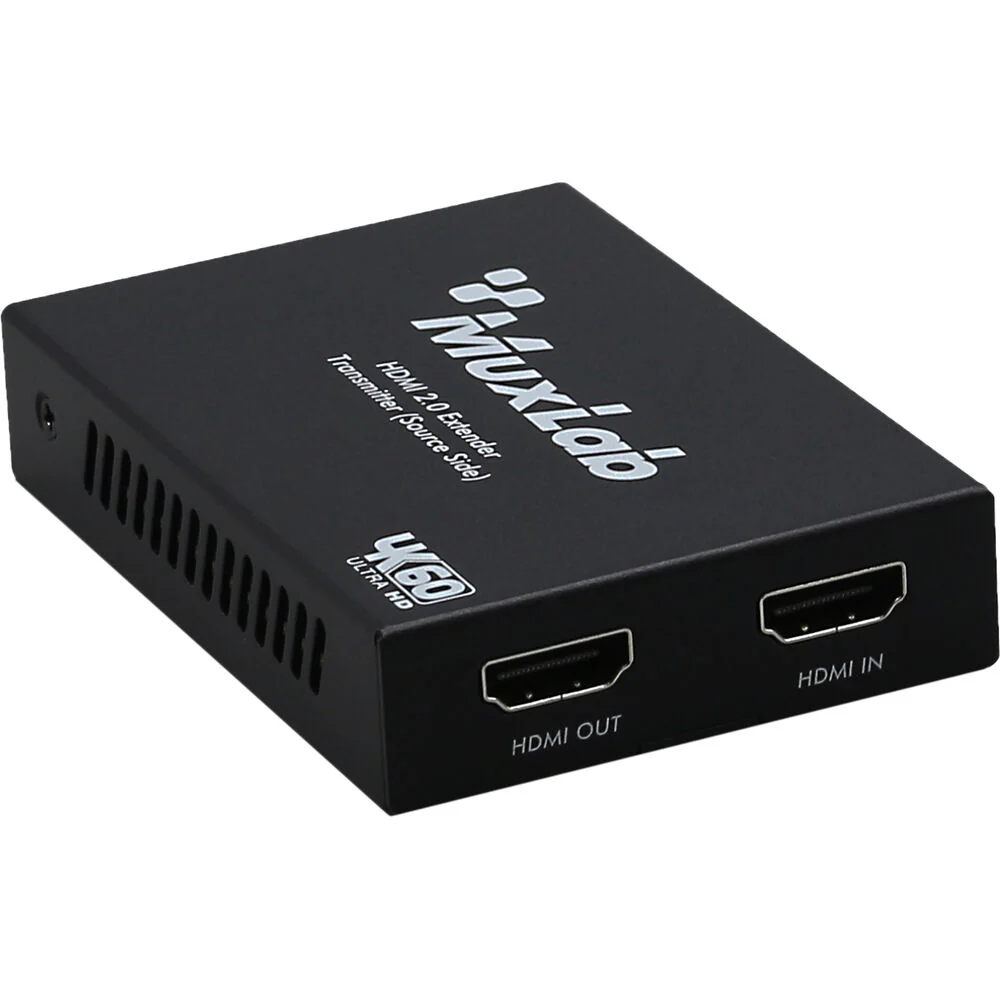

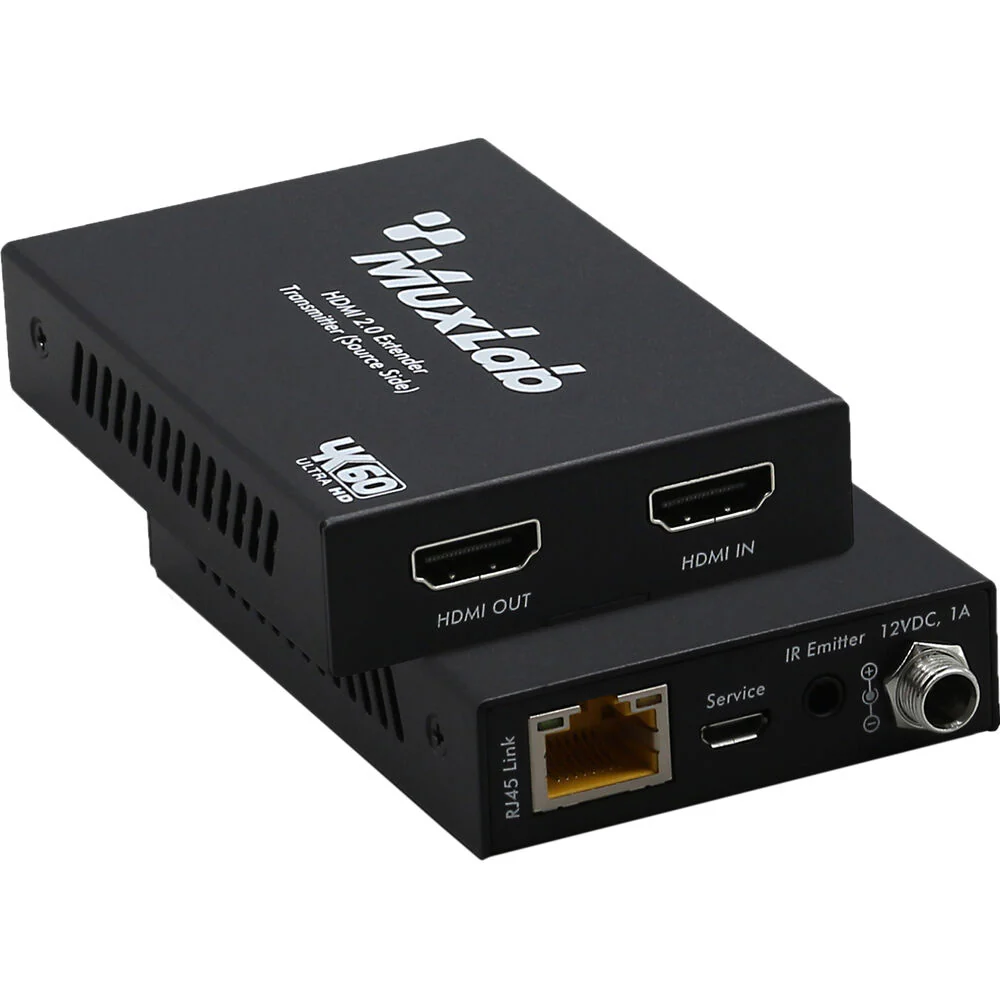

The included IR emitter and sensor cables help to maintain one-way wireless IR remote control over your devices from a distance. The transmitter features an HDMI 2.0 input and an HDMI 2.0 loop output so you can monitor the signal near the source, and it features an RJ45 extension port that connects to the receiver. The receiver features a single HDMI output that supports embedded audio.
The kit is HDCP 2.2/1.4 compliant and supports EDID management. It also supports a variety of audio formats such as Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio pass-through. Both transmitter and receiver are compact in form and are made from durable metal material.
- HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
- Supports 18 Gb/s bandwidth
- Supports input and output video resolution up to 4K60 4:4:4, extends distance up to 164'
- Supports one HDMI loop output
- Supports one-way IR pass-through
- Supports HDR function
- Supports PoC (Power over Cable) function so either transmitter or receiver is powered supply by 12 VDC/1A power adapter, the other doesn�t need power supply
- Supports automatic copy EDID function
- Compact design for easy and flexible installation
- Commercial AV systems
- Residential AV systems
- Collaborative PC systems
- Digital signage
- Educational institutions
- Boardroom systems
Items Included
- MuxLab HDMI 2.0 4K Extender Kit (164')
- Transmitter
- Receiver
- Power Adapter
- IR Blaster Cable (4.9')
- IR Receiver Cable (4.9')
- 4 x Mounting Ear
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab HDMI 2.0 Extender Specs
| Inputs |
1x HDMI (HDMI 2.0) Female
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45 (HDMI 2.0) Female
1x HDMI (HDMI 2.0) Female |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Input
|
| Inputs |
1x RJ45 Female
|
| Outputs |
1x HDMI (HDMI 2.0) Female
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Output
|
| HDR Support |
Yes
|
| HDCP Support |
Yes
|
| EDID Support |
Auto-Detect
|
| Max Transmission Distance |
1080p:
164' / 50 m |
| Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
DCI 4K: 30/60 fps UHD 4K: 30/60 fps 1080p: 50/60 fps |
| DTS Compatibility |
DTS-ES, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 5e/6
|
| Transmitter Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| PoE Support |
PoE Proprietary
|
| Transmitter Power Consumption |
Power Supply: 12 VDC at 1 A (3.84 W)
|
| Receiver Power Consumption |
Power Supply: 12 VDC at 1 A (3.84 W)
|
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
32 to 72°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
|
| Transmitter Dimensions |
3.5 x 2.4 x 0.7" / 88 x 61 x 18 mm
|
| Receiver Dimensions |
3.5 x 2.4 x 0.7" / 88 x 61 x 18 mm
|
| Transmitter Weight |
5.6 oz / 160 g
|
| Receiver Weight |
5.5 oz / 155 g
|
| Package Weight |
1.37 lb
|
| Box Dimensions (LxWxH) |
7.9 x 4.5 x 3.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
