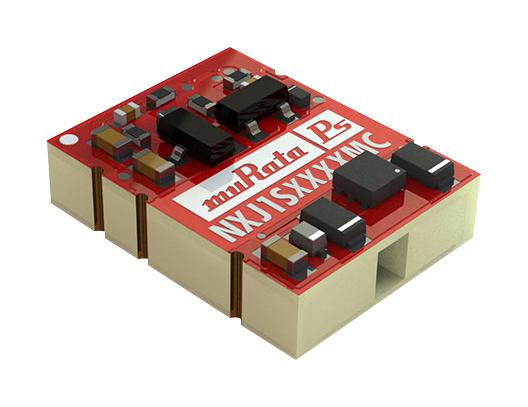

MURATA POWER SOLUTIONS NXJ1S1215MC-R7 Isolated Surface Mount DC/DC Converter, Low Profile, Medical, 1:1, 1 W, 1 Output, 15 V, 67 mA
MURATA POWER SOLUTIONS NXJ1S1215MC-R7 Isolated Surface Mount DC/DC Converter, Low Profile, Medical, 1:1, 1 W, 1 Output, 15 V, 67 mA
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: Medical |
| Input Ratio: 1:1 |
| Output Power Max: 1W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 67mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Unregulated |
| Isolation Voltage: 4.2kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 12V |
| DC / DC Converter Output Type: Fixed |

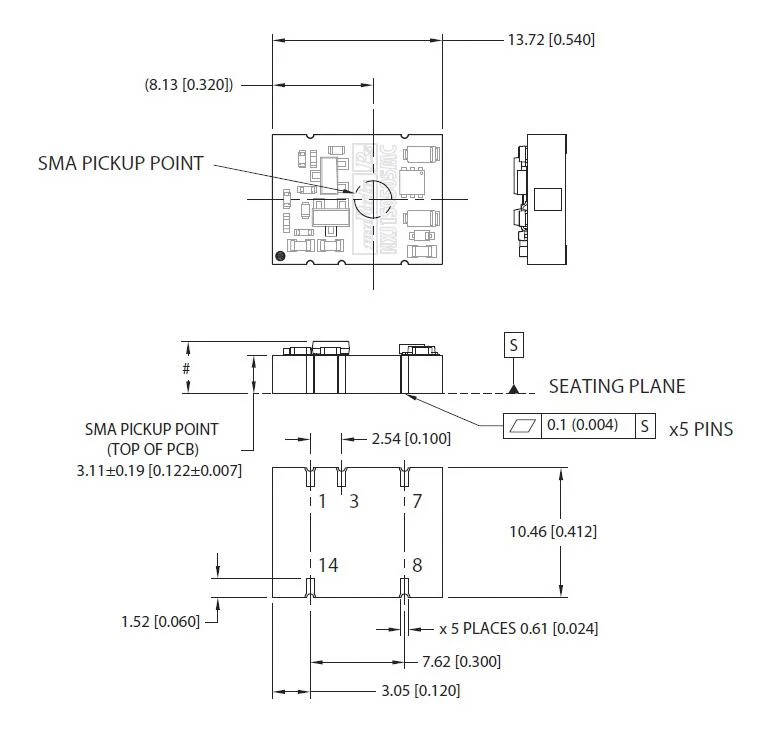

| Width: 10.46mm |
| Height: 4.16mm |
| Depth: 13.72mm |
| Input Voltage DC Min: 10.8V |
| Input Voltage DC Max: 13.2V |
| Product Range: NXJ Series |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NXJ1S1215MC-R7 |
| Quantity | Each (Supplied on Full Reel) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
