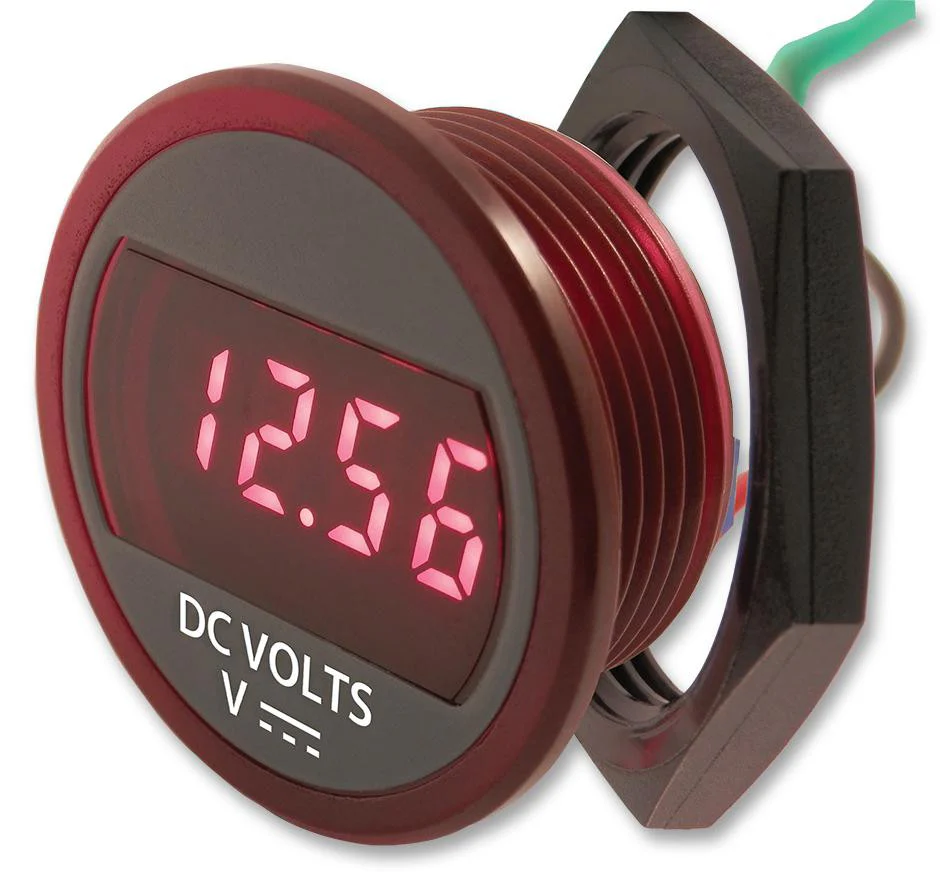

MURATA POWER SOLUTIONS DMR20-10-DCM-R-C Digital Panel Meter, Self Powered, 4 Digits, DC Voltage, 6V to 75V
MURATA POWER SOLUTIONS DMR20-10-DCM-R-C Digital Panel Meter, Self Powered, 4 Digits, DC Voltage, 6V to 75V
The DMR20-10-DCM-R-C is a 4-digit auto-ranging DC Voltmeter, designed to measure and displays the outputs the most popular DC power systems. Simply connect any 6 to 75VDC power source and these meters are fully operational, no additional components or power sources are required. Their large, 0.30"/7.6mm, bright LED displays can be easily read from 10ft away (3m). These auto-ranging meters accurately display DC voltages with 0.01V in the LO-range (below 51V) or 0.1V resolution in the HI-range (above 51V). A built-in resettable fuse assures long term reliability. All DMR20-10-DCM's employ a 13-bit A/D converter and precision metal-film resistors to achieve outstanding performance over an operating temperature range of -25 to +60�C. The DMR20-10-DCM is housed in a rugged, round polycarbonate case that provides excellent protection against moisture, dust, shock and vibration.
- Self-powered, Requires only Two Connections
- Auto-ranging 6 to 75VDC Input Range
- Installs in Round Oiltight 30.5mm Cutouts
- Reverse Polarity Protected to -100VDC
- Four-digit LED Display with Overvoltage Indication
- Digital Replacement for Analogue Panel Meters
- Screw-style Terminal Block Simplifies Installation
- Self-resetting Internal Fuse for Long-term Reliability
- Provides Moisture Resistance to IP67/NEMA-6
- Supplied with EPDM Rubber Gasket and Plastic Hex Nut
- Panel Knockout Punches and Tooling Available
Applications
Metering
Product details
| Operating Temperature Min | -25�C |
| Operating Temperature Max | 60�C |
| No. of Digits / Alpha | 4 |
| Digit Height | 7.6mm |
| Panel Cutout Height | - |
| Product Range | - |
| Meter Range | 6V to 75V |
| Supply Voltage Min | 6VDC |
| Meter Function | DC Voltage |
| Supply Voltage Max | 75VDC |
| Panel Cutout Width | - |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | DMR20-10-DCM-R-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
