MURATA POWER SOLUTIONS ACM20-5-AC1-R-C Digital Panel Meter, LED, 4 Digits, Four Function, Current, Voltage, Active Power, Power Factor
MURATA POWER SOLUTIONS ACM20-5-AC1-R-C Digital Panel Meter, LED, 4 Digits, Four Function, Current, Voltage, Active Power, Power Factor
Product Overview

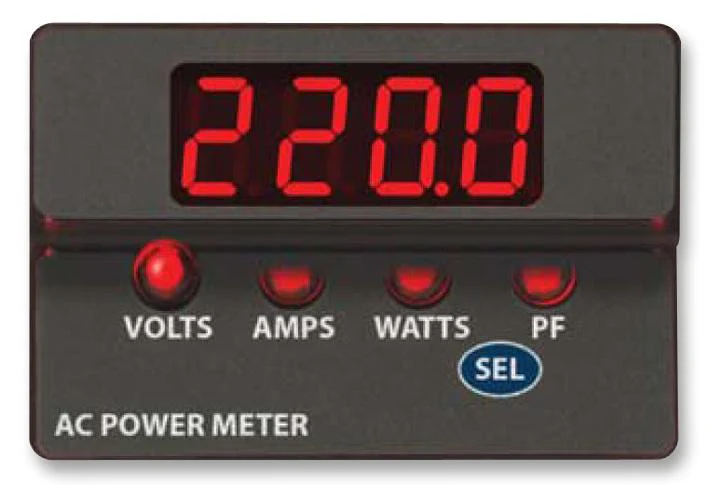

The ACM20-5-AC1-R-C is a 4-digit multi-function AC Power Meter with power factor reading and 30A, 85 to 264VAC supply. The AC power meter display the most critical measurements in mains-powered equipment such as voltage, amperage, active power (watts) and power factor. A front panel selector-switch provides two modes of operation such as a fixed reading of any of the four parameters or a continuous cycling through all four measurements. An optional model displays line frequency with 0.1Hz resolution. This multi-function power meter includes built-in current transformers, no other user-supplied components are required.
- Built-in current transformers simplify installation
- Ideal for power distribution units (PDUs) and power strips
- True RMS readings of complex voltage and current waveforms
- Low-power consumption, less than 1/4W from 120VAC
- Surface-mount design occupies minimal panel space
- Bright red LED-display with four annunciators
- Optional frequency reading models
- One-piece polycarbonate housing fits '0U' & '1U' racks
Applications
Industrial, Metering
Product details
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | ACM20-5-AC1-R-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
