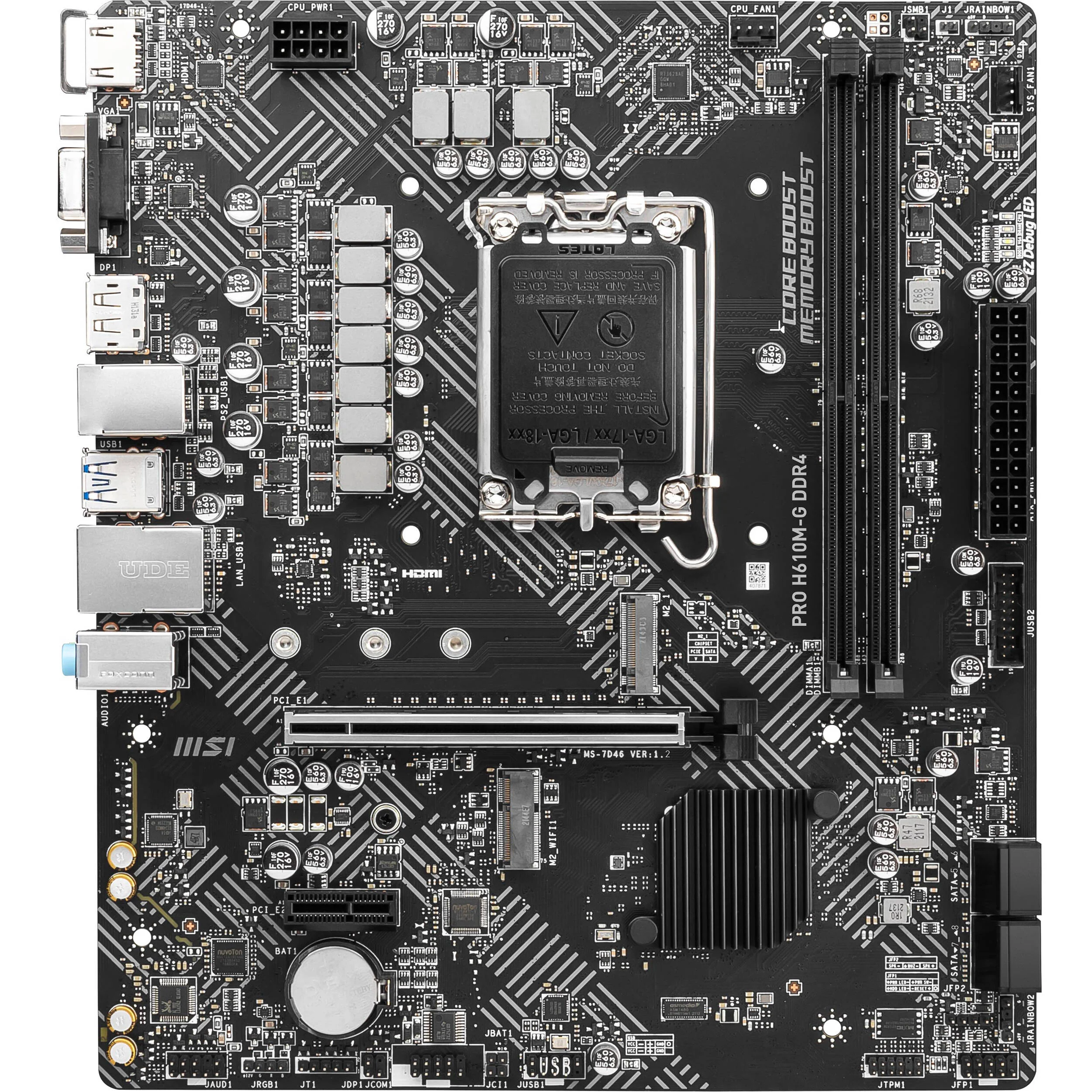

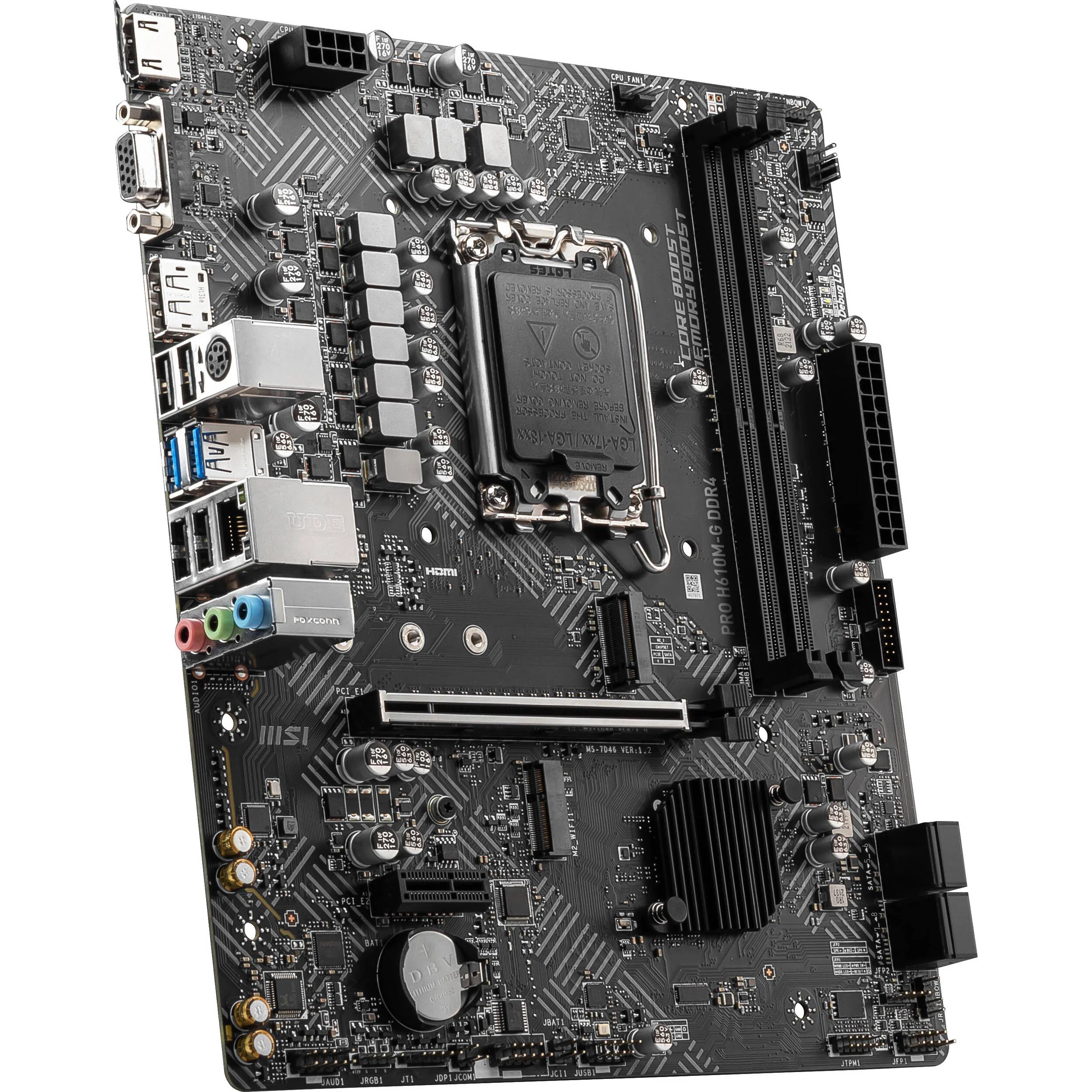

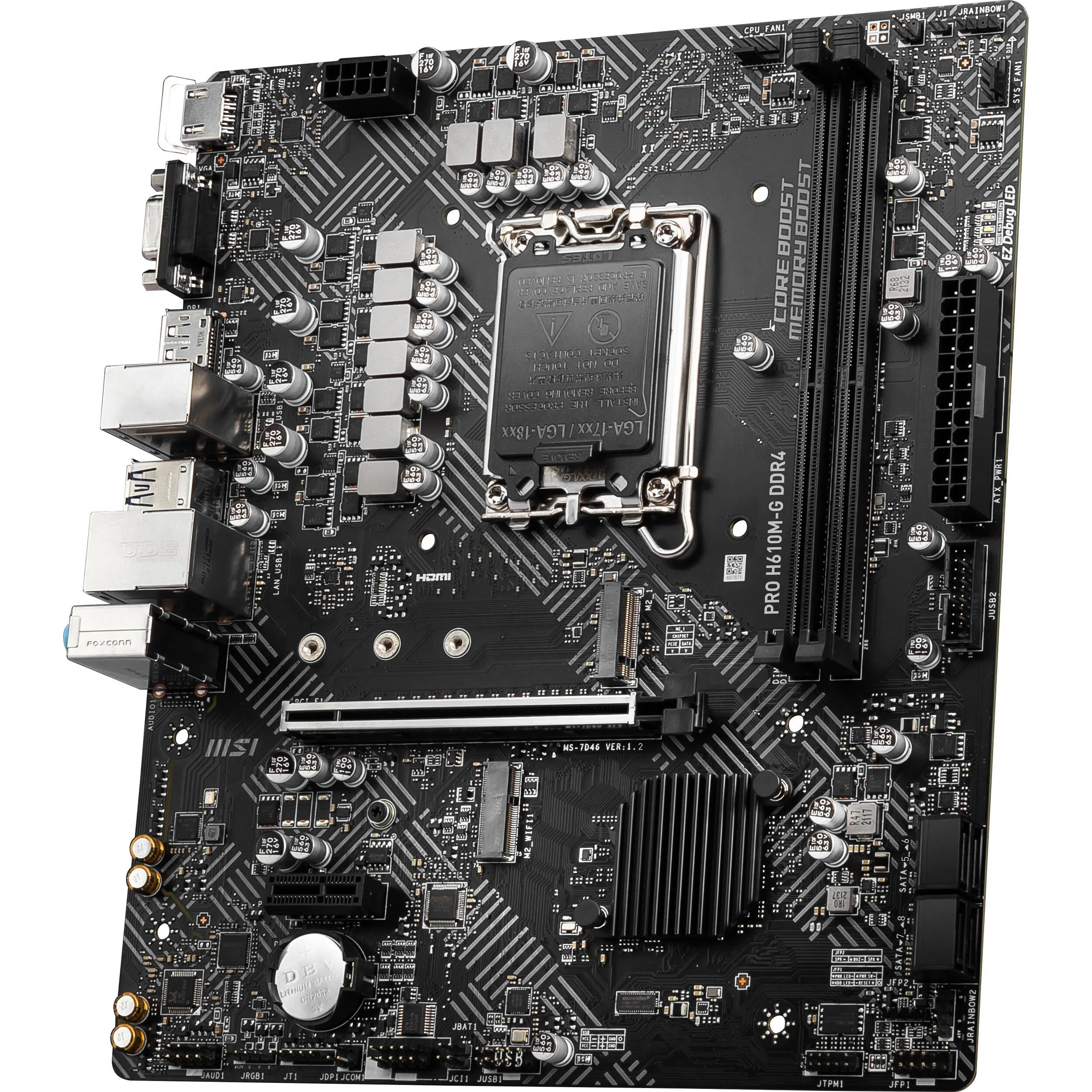

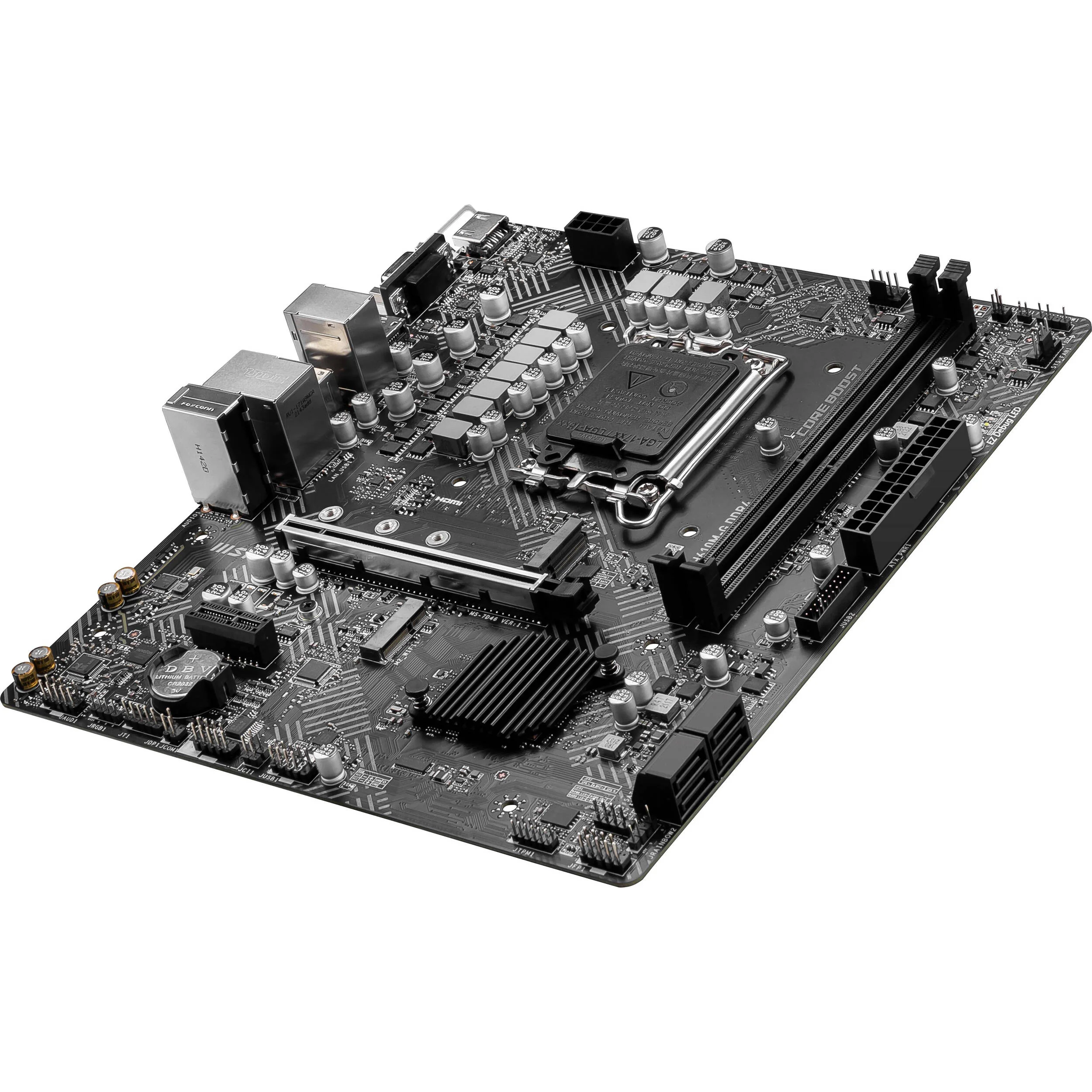

MSI PRO H610M-G DDR4 Micro-ATX LGA 1700 Motherboard
MSI PRO H610M-G DDR4 Overview
- 1Description
- 2User Friendly Design
- 3Connectivity
- 4Performance
- 5BIOS & Software
Whether you are an enthusiast or business-focused user, the PRO H610M-G DDR4 Micro-ATX LGA 1700 Motherboard from ASUS provides you with the flexibility and performance required for a variety of demanding tasks. Utilizing the power of 12th Gen Intel processors, you can experience enhanced speeds with PCIe 4.0 technology, providing boosts to M.2 SSD and graphics card performance.
Built on the Intel H610 chipset, this motherboard features an LGA 1700 socket, providing compatibility with a wide range of 11th and 12th gen Intel processors. Two DDR4 DIMM slots allow you to install up to 64GB of DDR4 RAM for efficient multitasking. Expand the storage capability of your system thanks to the four SATA III connections and one M.2 slot. Install a dedicated graphics card into the PCIe 4.0 x16 slot and utilize the PCIe 3.0 x1 slot for additional compatible expansion cards. Multiple USB ports allow you to connect various peripherals such as external drives and keyboards or mice with ease. Connect to a wired network with Intel I219V Gigabit Ethernet connection. Connect this motherboard to a display using the HDMI, DisplayPort, and VGA outputs.
User Friendly Design
Cooling
MSI Motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system and characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI Cooling detects CPU and GPU temperatures and automatically adjusts the system fans to a pre-set value that can be set through the MSI AI Engine.
EZ Debug LED
Onboard LEDs for key components will indicate the source of any problems so you know exactly where to look to get your system up and running again.
Reliable Components
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards.
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
Connectivity
Intel LAN & MSI LAN Manager
Stay connected with Intel LAN, optimized for stable internet throughput ideal for high-level online connections. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive data.
Storage
This motherboard supports a 32 Gb/s M.2 connector and four 6 Gb/s SATA III connectors.
USB 3.2 Gen 1
Transfer lots of data, music, and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear I/O, providing a wide variety of options to connect your USB 3.2 Gen 1 devices.
Performance
Lightning Gen 4 PCIe
MSI lightning Gen 4 PCIe is a data-transfer solution with up to 64 Gb/s of transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer versions. Optimized by the MSI steel armor design, this motherboard can support the weight of heavy graphics cards.
Memory Boost
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. MSI's memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations.
Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only does this support multi-core CPUs, it also creates the ideal conditions for CPU overclocking.
Audio
Enjoy the purest sound quality in both stereo and surround sound thanks to a dedicated high-definition audio processor. High-quality audio capacitors provide a high-fidelity sound experience with exceptional acoustics and realism for studio-level headphones, while the rear I/O features HD Audio Connectors which allow you to keep sound in the ideal ranges thanks to a pure digital signal.
Isolated Audio Signal
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. Additionally, using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
BIOS & Software
Click BIOS 5
Fine-tune the motherboard for gaming performance, efficiency, or overclocking records thanks to Click BIOS 5. Click BIOS 5 features several tabs to help you take advantage of the motherboard's features.
- Quickly overclock your CPU with a single button for more performance with the Creator Genie.
- Choose from a preset XMP profile and automatically overclock compatible DDR memory.
- M-Flash allows you to flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
- Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
- Get extreme speed out of your system memory and get more performance with Memory Try It.
- A permanent search and favorites tab is in the top right corner and helps you move through the BIOS menus quickly.
Resizable BAR
Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve system performance.
System Safety
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
UPC: 824142278789

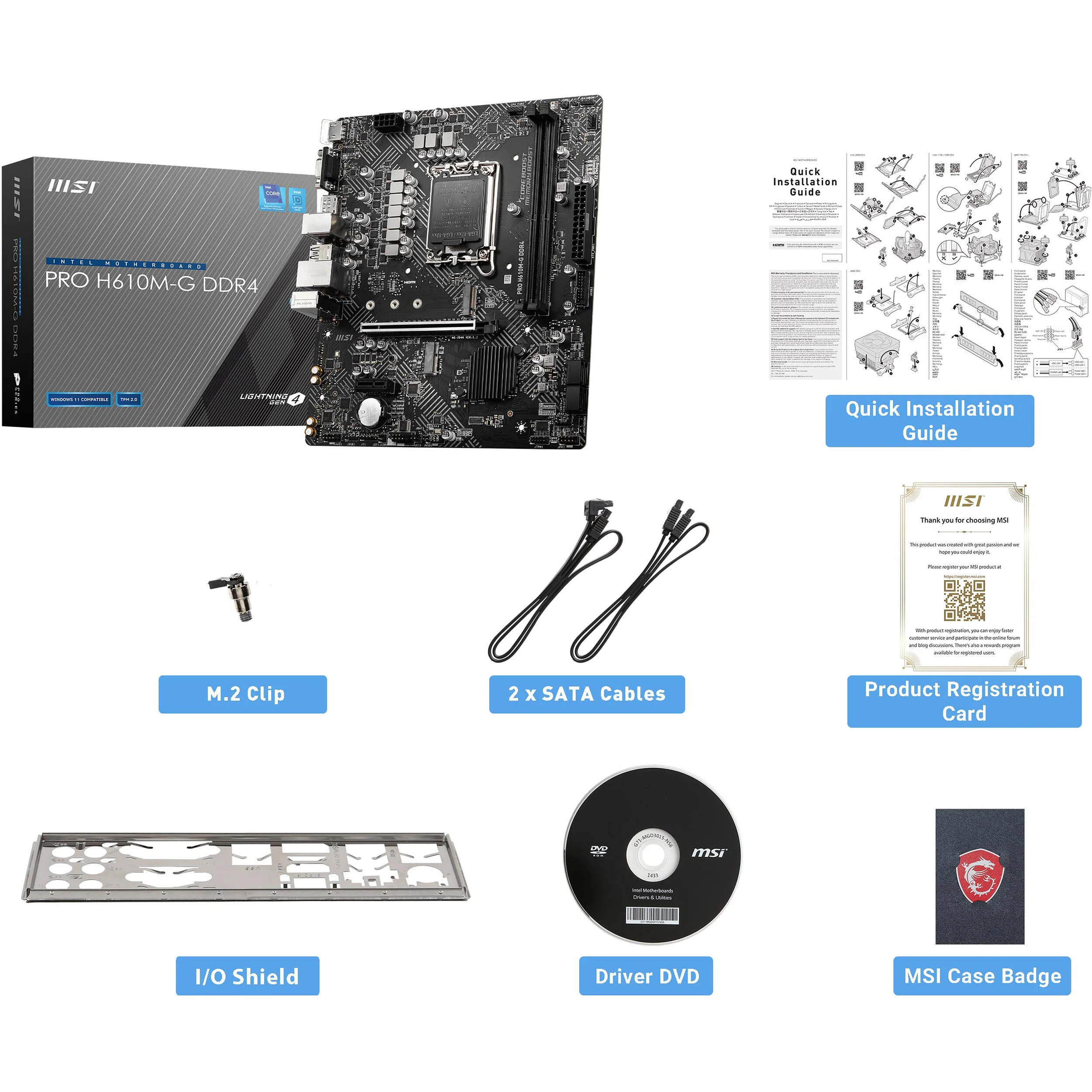

In the Box
- MSI PRO H610M-G DDR4 Micro-ATX LGA 1700 Motherboard
- 2 x SATA III Cables
- M.2 Clip
- I/O Shield
- MSI Case Badge
- Limited 3-Year Warranty
Table of Contents
- Description
- User Friendly Design
- Connectivity
- Performance
- BIOS & Software
MSI PRO H610M-G DDR4 Specs
CPU
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |

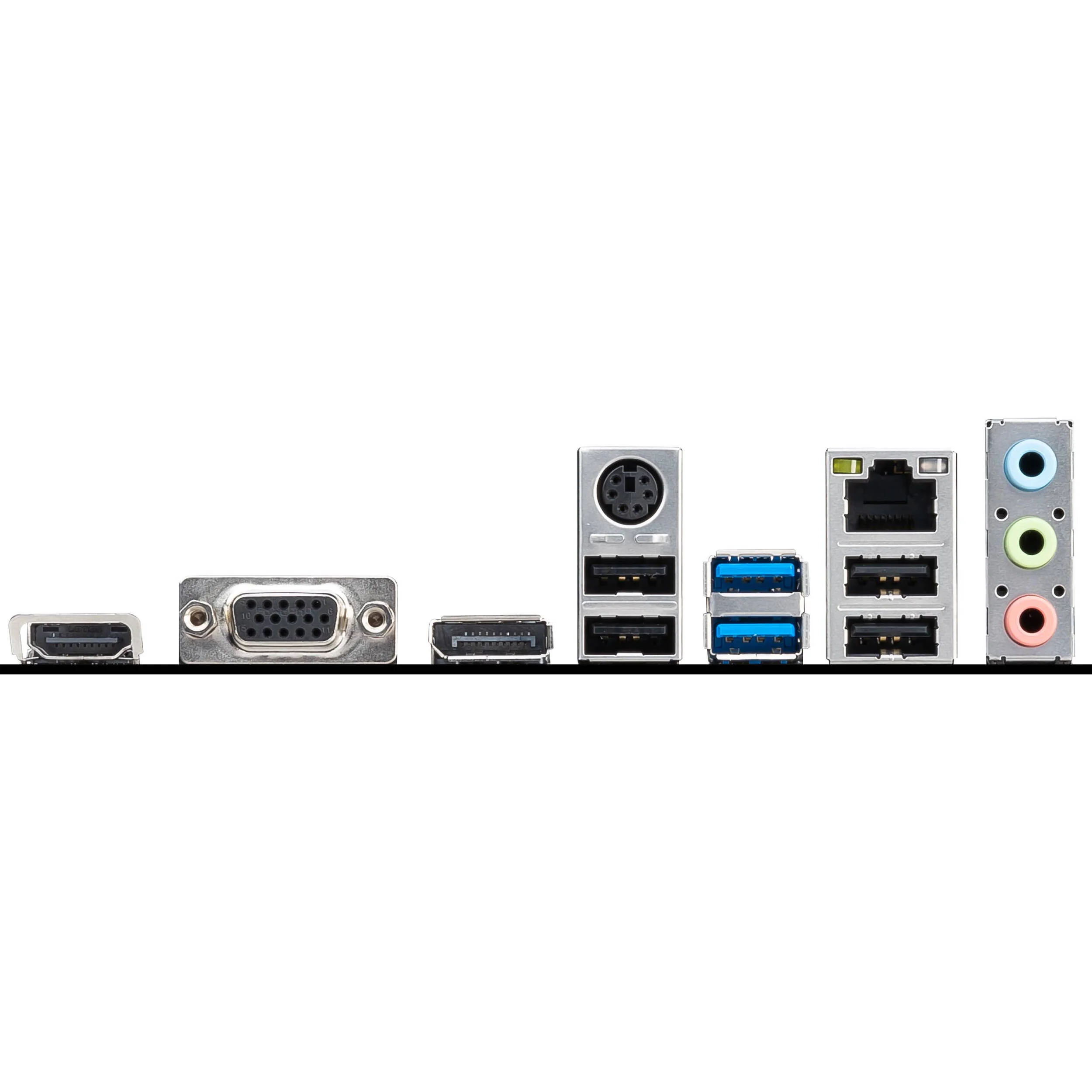

Back Panel I/O
| USB | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.1 1 x DisplayPort 1.4 1 x VGA |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Intel I219V Gigabit |
| PS/2 | 1 x PS/2 |
Memory
| Memory Slots | 2 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| Optane Memory Support | No |
| RAID Support | None |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 |
| USB | 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1 x 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin System |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 3 x RGB |
| Audio | None |
| Diagnostics | Clear CMOS |
| Add-On | 1 x Thunderbolt Header |
Front Panel I/O
| Front Panel I/O | AAFP |
Audio
| Audio Codec | Realtek ALC892/ ALC897 (7.1-Channel) |
Wireless
| Bluetooth | None |
| Module Support | 1 E Key M.2 |
Software
| OS Compatibility | Windows 11 *As of February, 2022: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | Micro-ATX |
| Dimensions | 9.3 x 8.0" / 23.6 x 20.2 cm |
Packaging Info
| Package Weight | 1.695 lb |
| Box Dimensions (LxWxH) | 10.6 x 10.2 x 2.2" |
