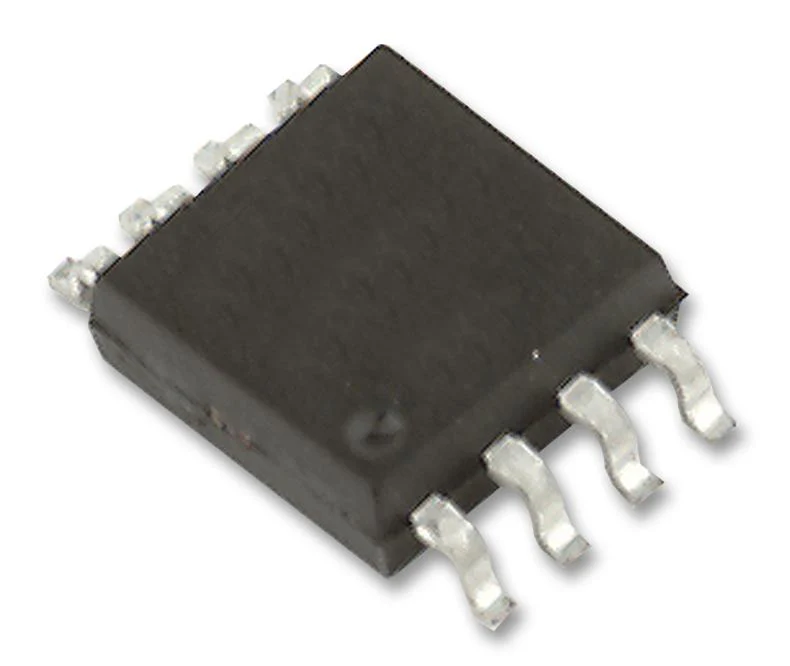

MICROCHIP MCP6032-E/MS Operational Amplifier, Dual, 10 kHz, 0.004 V/µs, 1.8V to 5.5V, MSOP, 8 Pins
MICROCHIP MCP6032-E/MS Operational Amplifier, Dual, 10 kHz, 0.004 V/µs, 1.8V to 5.5V, MSOP, 8 Pins
The MCP6032-E/MS is an Operational Amplifier operates with a single supply voltage as low as 1.8V, while drawing ultra low quiescent current per amplifier (0.9μA, typical). This family also has low input offset voltage (±150μV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6032 family is unity gain stable and has a gain bandwidth product of 10kHz (typical). These specs make these op amps appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. The MCP6032 family is offered in dual (MCP6032) configurations. The MCP6032 family is designed with Microchipâ��s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8 to 5.5V.
- No phase reversal
Applications
Sensing & Instrumentation, Power Management
Footnotes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | MICROCHIP |
| Part Number | MCP6032-E/MS |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$0.59
Original: $1.96
-70%MICROCHIP MCP6032-E/MS Operational Amplifier, Dual, 10 kHz, 0.004 V/µs, 1.8V to 5.5V, MSOP, 8 Pins—
$1.96
$0.59MICROCHIP MCP6032-E/MS Operational Amplifier, Dual, 10 kHz, 0.004 V/µs, 1.8V to 5.5V, MSOP, 8 Pins
The MCP6032-E/MS is an Operational Amplifier operates with a single supply voltage as low as 1.8V, while drawing ultra low quiescent current per amplifier (0.9μA, typical). This family also has low input offset voltage (±150μV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6032 family is unity gain stable and has a gain bandwidth product of 10kHz (typical). These specs make these op amps appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. The MCP6032 family is offered in dual (MCP6032) configurations. The MCP6032 family is designed with Microchipâ��s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8 to 5.5V.
- No phase reversal
Applications
Sensing & Instrumentation, Power Management
