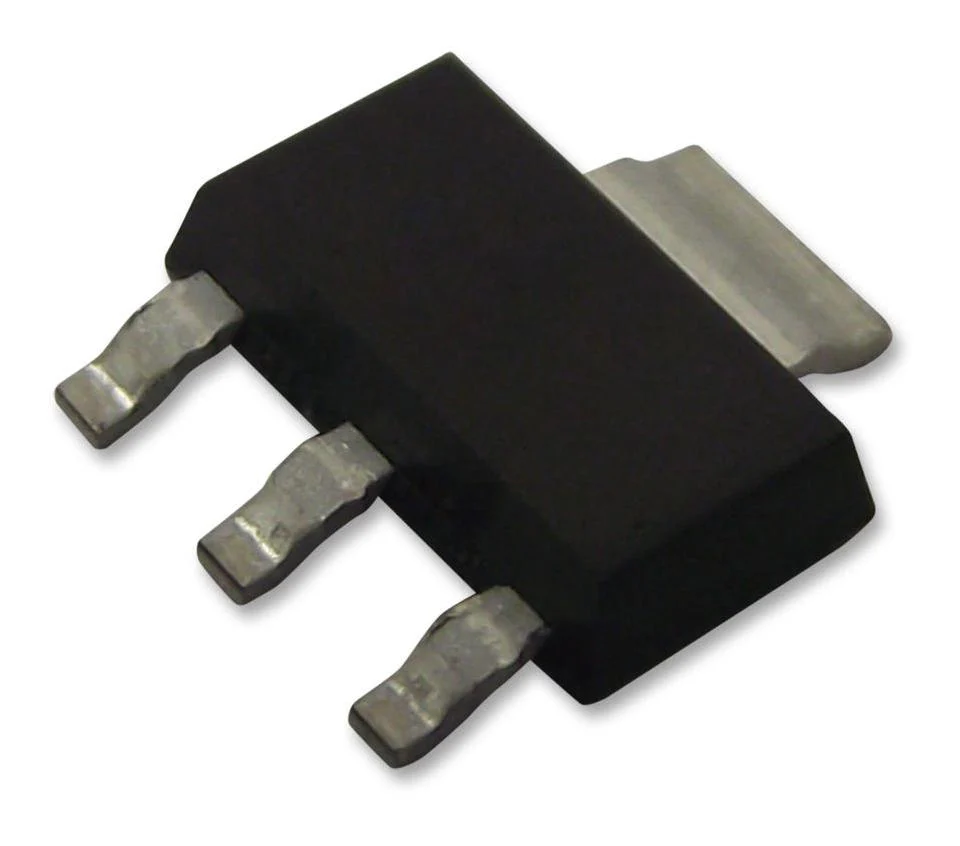

Microchip MCP1755S-3302E/DB Fixed LDO Voltage Regulator 3.6V to 16V 300mV Dropout 3.3Vout 300mAout SOT-223-3

The MCP1755S-3302E/DB is a 3.3V fixed output CMOS low-dropout (LDO) Linear Regulator can deliver up to 300mA of current while consuming only 68µA of quiescent current (typical). The input operating range is specified from 3.6 to 16V, making it an ideal choice for four to six primary cell battery-powered applications, 12V mobile applications and one to three cell Li-Ion powered applications. The device is capable of delivering 300mA with only 300mV (typical) of input-to-output voltage differential. The output voltage tolerance of the device is typically +0.85% at +25°C and ±2.0% maximum over the operating junction temperature range of -40°C to +125°C. Line regulation is ±0.01% typical at +25°C. The LDO output is stable when using only 1µF of output capacitance. Ceramic, tantalum or aluminium electrolytic capacitors may all be used for input and output.

• Power Good output
• Shutdown Input
• True current foldback protection
• Short-circuit protection
• Overtemperature protection

Applications

Automotive, Safety, Consumer Electronics, Industrial, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP1755S-3302E/DB
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
