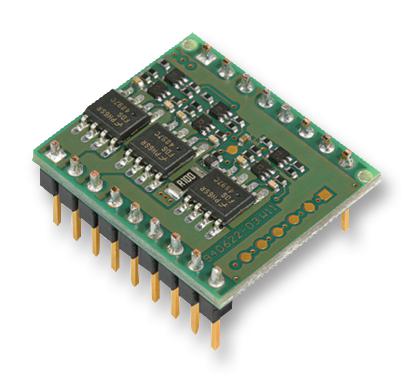

Maxon Motor 367661 367661 DC Ctrl Brushless 24V

The 367661 is a 1-quadrant Amplifier for controlling EC motors with Hall sensors with a maximum output of 48 watts. The basic function of EC motors electronics is the electronic commutation of the motor winding. Simple speed controls are possible with hall sensors. A further distinction is made between open or closed loop speed controls. The 1-Q amplifier functions in motor operation and direction reverse via digital signal. The motor shaft can be enabled or disabled. It has adjustable maximum current limitation. Set value speed input through external analogue voltage and status indicator with "Ready"-Output.

• Digital Speed Control or Open Loop Speed Control Operation can be Preset by a Digital Signal
• Excellent Price-performance Ratio
• Miniaturized Open Electronics Board
• Direction of Rotation Preset by a Digital Signal
• Power Amplifier is Protected Against Thermal Overload and the Control Inputs Against Overvoltage

Applications

Automation & Process Control, Signal Processing

Other details

Brand	MAXON MOTOR
Part Number	367661
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
