MA Lighting grandMA3 onPC 2Port Node 2k PoE

MA Lighting grandMA3 onPC 2Port Node 2k PoE

MA Lighting grandMA3 Overview

Designed as an all-inclusive lighting solution for MA Lighting nodes, the grandMA3 onPC 2Port Node 2k PoE from MA Lighting is an entry-level node that directly connects to a PC to control lighting fixtures. Ideal for theater, TV production, and live events, this fixture controls moving lights and LEDs with a PC or two DMX universes. Encased in a 9.5" 1RU housing, the compact fixture is designed to simultaneously output to two DMX universes in any grandMA3 system. To ensure a optical performance, the fixture is integrated with a high-performance processor and a 1 GB/s Ethernet connection for reliable power. This device can also be powered with PoE for reduced and consolidated cabling. This fixture enables 4 096 HTP and LTP parameters to complete a compact control system. For greater compatibility, the fixture handles MA-Net 2, MA-Net 3, sACN, and Art-Net data for remote configurations, as well as RDM-compatibility. The grandMA3 on PC software offers the same features as larger MA Lighting consoles to offer greater compatibility and a seamless workflow. Easily configure the fixture with its 3.9" color display to get a quick status overview and adjust settings.

DMX Controls
The grandMA3 onPC has several integrated types of DMX modes. The DMX ports on stations can generate DMX as a standalone device and Ethernet DMX. The device's DMX standard supports a wide range of refresh rates that can be sent to some of the DMX channels. The grandMA3 system implements several DMX rules, including sending an entire DMX universe at one time. The minimum DMX rate is 1 Hz, and the maximum DMX rate is 30 Hz. To configure DMX inputs and outputs, users can change the settings in the device's Output Configuration menu.
Ample Control Options
For maximum configuration options, all grandMA3 nodes can be remotely accessed and programmed from any grandMA3 console or onPC station within the network session. Download the grandMA3 onPC software to initiate a compact system that connects the node and controls light fixtures. For greater compatibility, the grandMA3 onPC software offers the same features as larger MA Lighting consoles for seamless integrations and workflows.
Additional Details
  • Recipe Workflow: The grandMA3 features a recipe workflow for better and faster workflows for users creating and editing recipes.
  • Tags: This feature allows for organizing, linking, and cross-referencing objects throughout the software.
  • Timing Masters: This can set playback timings instead of a numeric value.
  • Supported File Formats: Expanded file format options are supported in videos and 3D meshes within the software.
  • Fixture Sheet: Includes subtopics that describe the fixture sheet settings and fixture sheet modes.
Connectors

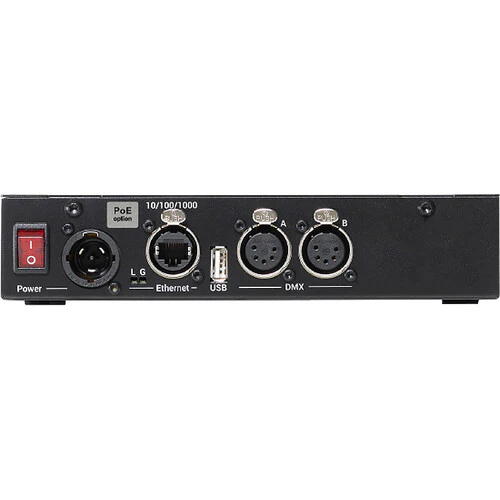

The grandMA3 onPC features several connectors, including a powerCON TRUE1, an etherCON/RJ45, a USB-A 2.0, and two DMX512-A outputs.
UPC: 799384361325

Items Included

  • MA Lighting grandMA3 onPC 2Port Node 2k PoE
  • Limited 2-Year Manufacturer Warranty

Additional Resources

    MA Lighting grandMA3 Specs

    Key Specs
    Inputs/Outputs
    2x XLR 5-Pin (DMX) Female Output
    1x RJ14 (Gigabit Ethernet) Input/Output
    1x USB-A
    Channels
    4096 (DMX)
    Power Source
    AC Power
    Protocol
    DMX512
    General
    Inputs/Outputs
    2x XLR 5-Pin (DMX) Female Output
    1x RJ14 (Gigabit Ethernet) Input/Output
    1x USB-A
    Channels
    4096 (DMX)
    Dimming
    Optional
    Cooling System
    No
    Power
    Power Source
    AC Power
    Power Consumption
    12 W
    Input Power
    48 VDC
    100 to 240 VAC, 50 / 60 Hz
    PoE Port Power
    48 V12 W
    Compatibility
    Protocol
    DMX512
    Physical
    Operating Conditions
    32 to 104?F / 0 to 40?C
    Environmental Resistance
    No
    Dimensions
    9.0 x 8.0 x 2.0" / 22.9 x 20.3 x 5.1 cm
    Weight
    5 lb / 2.3 kg
    Packaging Info
    Package Weight
    4.305 lb
    Box Dimensions (LxWxH)
    13.1 x 10.2 x 2.7"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
