Lynx Technik AG yellowbrik HDMI to SDI Converter with 3D Support
- HDMI Input and Dual SDI Outputs
- Supports SDI up to 3Gbp/s and 3D
- Embeds HDMI Audio into SDI Stream
- Fiber SFP Cage for Fiber Tx Module
- Hard Transit Case
- 12V DC Power Supply Included

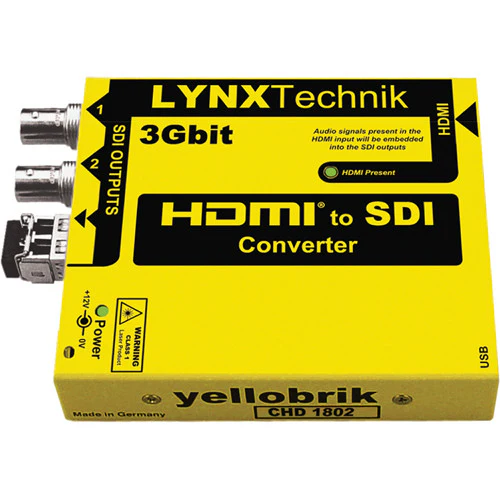

The yellowbrik HDMI to SDI Converter with 3D Support from Lynx Technik AG converts most HDMI sources up to 1080p60, including 3D material, to SDI. It features two SDI outputs, which support SD-SDI, HD-SDI, and 3G-SDI. In addition, the converter will pass up to 8 channels of HDMI-embedded audio into the SDI stream. Where extended cable runs are required on the output side, there is a Fiber SFP cage on the side of the unit that allows installation of the OH-TX-1 fiber optic transmitter, sold separately.
- LED light indicates the presence of an HDMI signal
- Includes hard transit case
- Will not pass HDCP-encrypted video
| Inputs | 1 x HDMI |
| Outputs | 2 x SDI on BNC female 1 x Fiber - requires optional module (not included): OH-TX-1 |
| USB | 1 x USB mini type B for yelloGUI interface and firmware updates |
| Supported Resolutions | 1080p and 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz 1080i: 50, 59.94, 60 Hz |
| Video Standards | HDMI 3D supported Up to 8 channels embedded audio passed to SDI Note: Does not pass HDCP-encrypted content SDI SMPTE: 424M, 292M, 259M 3G-SDI, HD-SDI, SD-SDI: 270 Mbp/s to 3 Gbp/s (auto-detecting) 3D: Supports sigle-link 3D |
| Power Requirements | 12 VDC |
| Dimensions | 4.1 x 3.7 x 0.9" / 105 x 95 x 22 mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.8 x 3.3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $1,131.01
-70%$1,131.01
$339.30Lynx Technik AG yellowbrik HDMI to SDI Converter with 3D Support
- HDMI Input and Dual SDI Outputs
- Supports SDI up to 3Gbp/s and 3D
- Embeds HDMI Audio into SDI Stream
- Fiber SFP Cage for Fiber Tx Module
- Hard Transit Case
- 12V DC Power Supply Included
The yellowbrik HDMI to SDI Converter with 3D Support from Lynx Technik AG converts most HDMI sources up to 1080p60, including 3D material, to SDI. It features two SDI outputs, which support SD-SDI, HD-SDI, and 3G-SDI. In addition, the converter will pass up to 8 channels of HDMI-embedded audio into the SDI stream. Where extended cable runs are required on the output side, there is a Fiber SFP cage on the side of the unit that allows installation of the OH-TX-1 fiber optic transmitter, sold separately.
- LED light indicates the presence of an HDMI signal
- Includes hard transit case
- Will not pass HDCP-encrypted video
| Inputs | 1 x HDMI |
| Outputs | 2 x SDI on BNC female 1 x Fiber - requires optional module (not included): OH-TX-1 |
| USB | 1 x USB mini type B for yelloGUI interface and firmware updates |
| Supported Resolutions | 1080p and 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz 1080i: 50, 59.94, 60 Hz |
| Video Standards | HDMI 3D supported Up to 8 channels embedded audio passed to SDI Note: Does not pass HDCP-encrypted content SDI SMPTE: 424M, 292M, 259M 3G-SDI, HD-SDI, SD-SDI: 270 Mbp/s to 3 Gbp/s (auto-detecting) 3D: Supports sigle-link 3D |
| Power Requirements | 12 VDC |
| Dimensions | 4.1 x 3.7 x 0.9" / 105 x 95 x 22 mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.8 x 3.3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
