LORLIN IRL-5-M-S-2 Keylock Switch, Off-(On), DPDT, IRL Impulsion, 1 Position, Solder, 1 A

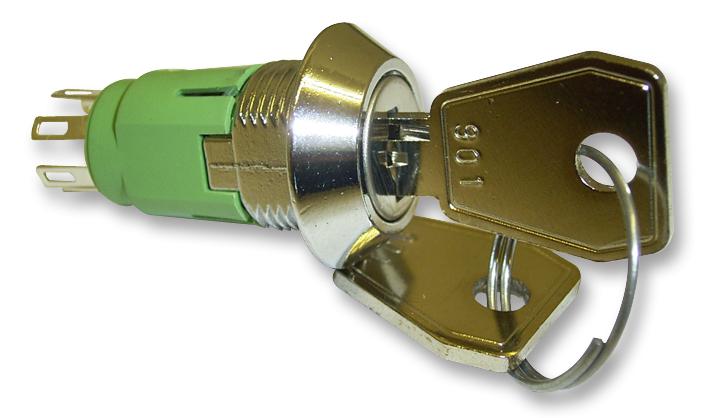

The IRL-5-M-S-2 is a DPDT Lock Switch with tapered lock head 60° indexing. It has silver-plated brass contacts, G.F polyamide 6.6 moulding and chromium-plated bright zinc alloy lock housing. It comes with 2 nickel-plated mild steel keys per lock. It can be easily assembled through front of equipment panel.
- UL94V-0 Flammability rating
- Occupies small panel area
- Miniature key-operated
- Keys are double entry
- Rear projection <30mm from panel
- >999MR at 500VDC Initial insulation resistance
- <20Rm Initial contact resistance
- -20 to 65°C Operating temperature range
Applications
Industrial
Product details
| Switch Operation: Off-(On) |
| Contact Configuration: DPDT |
| Product Range: IRL Impulsion |
| No. of Switch Positions: 1 Position |
| Switch Terminals: Solder |
| Contact Current Max: 1A |
| Contact Voltage AC Nom: 115V |
| Contact Voltage DC Nom: 24V |
| Angle of Throw: 60° |
Other details
| Brand | LORLIN |
| Part Number | IRL-5-M-S-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
