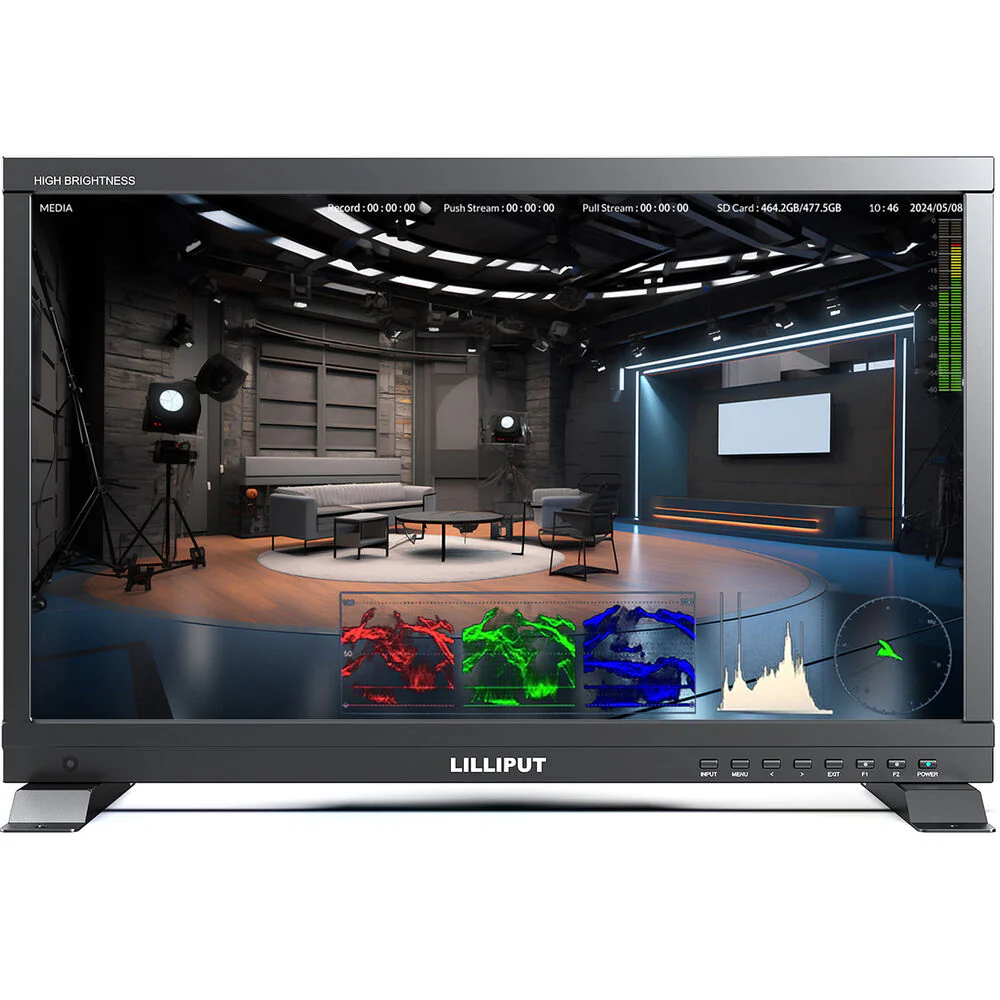

Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)
HomeStore

Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)

Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)

Lilliput PVM220S-E Overview

The PVM220S-E 21.5" Live Stream Recording Monitor from Lilliput is a professional monitor designed for live streaming and recording. Boasting 1000 cd/m² brightness and 1000:1 contrast, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. This monitor can record up to 1080p HDMI or SDI video signals directly to an SD card with a maximum capacity of 512GB. It is rich in advanced features like precise waveform and vector functions, 3D LUT and HDR support, and full-screen waveform and vectorscope functions, making it ideal for accurate color grading and picture analysis. The PVM220S-H can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate.

Items Included

  • Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)
  • 15 VDC, 4A Power Adapter
  • 2 x Base Bracket
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Lilliput PVM220S-E Specs

    Key Specs
    Display Size
    21.5" / 54.6 cm
    Native Resolution
    1920 x 1080
    Touchscreen
    No
    HDR Support
    Yes, Hybrid Log Gamma
    Video I/O
    1x HDMI 2.0 Input
    1x HDMI 2.0 Output
    1x BNC (3G-SDI) Input
    1x BNC (3G-SDI) Output
    Media/Memory Card Slot
    Single Slot: SD/SDHC/SDXC [512 GB Maximum]
    Video Format
    HDMI
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    SDI
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    Battery Type
    1x V-Mount
    Power Consumption
    53 W
    Display
    Panel Type
    LCD
    Display Size
    21.5" / 54.6 cm
    Native Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178°
    Vertical: 178°
    Touchscreen
    No
    Maximum Brightness
    1000 nits / cd/m2
    Contrast Ratio
    1000:1
    HDR Support
    Yes, Hybrid Log Gamma
    Pixels Per Inch (ppi)
    102 ppi
    Image Controls
    Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Overscan, Screen Markers, Vectorscope
    Inputs/Outputs
    Video I/O
    1x HDMI 2.0 Input
    1x HDMI 2.0 Output
    1x BNC (3G-SDI) Input
    1x BNC (3G-SDI) Output
    Embedded Audio
    HDMI: 8-Channel
    SDI: 2-Channel
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output
    1x 1/8" / 3.5 mm Input
    Built-In Speaker
    Mono
    Power I/O
    1x Barrel (24 VDC) Input
    Other I/O
    1x USB-A (Firmware/LUT Upload)
    1x USB-C (Firmware)
    1x RJ45 (LAN)
    Media/Memory Card Slot
    Single Slot: SD/SDHC/SDXC [512 GB Maximum]
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Video Format
    HDMI
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    SDI
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    Gamma Curve
    ARRI Log C, DCI-P3, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log
    Power
    Input Power
    9 to 24 VDC
    Battery Type
    1x V-Mount
    Power Consumption
    53 W
    Mounting
    Mounting-Hole Pattern
    100 x 100 mm, 75 x 75 mm
    General
    Operating Conditions
    32 to 122°F / 0 to 50°C
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Dimensions
    20 x 12.6 x 1.9" / 508 x 321 x 47 mm
    Weight
    10.47 lb / 4.75 kg
    Packaging Info
    Package Weight
    17.005 lb
    Box Dimensions (LxWxH)
    25 x 19.7 x 6.4"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $380.71

    Original: $1,269.04

    -70%
    Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)—

    $1,269.04

    $380.71

    More Images

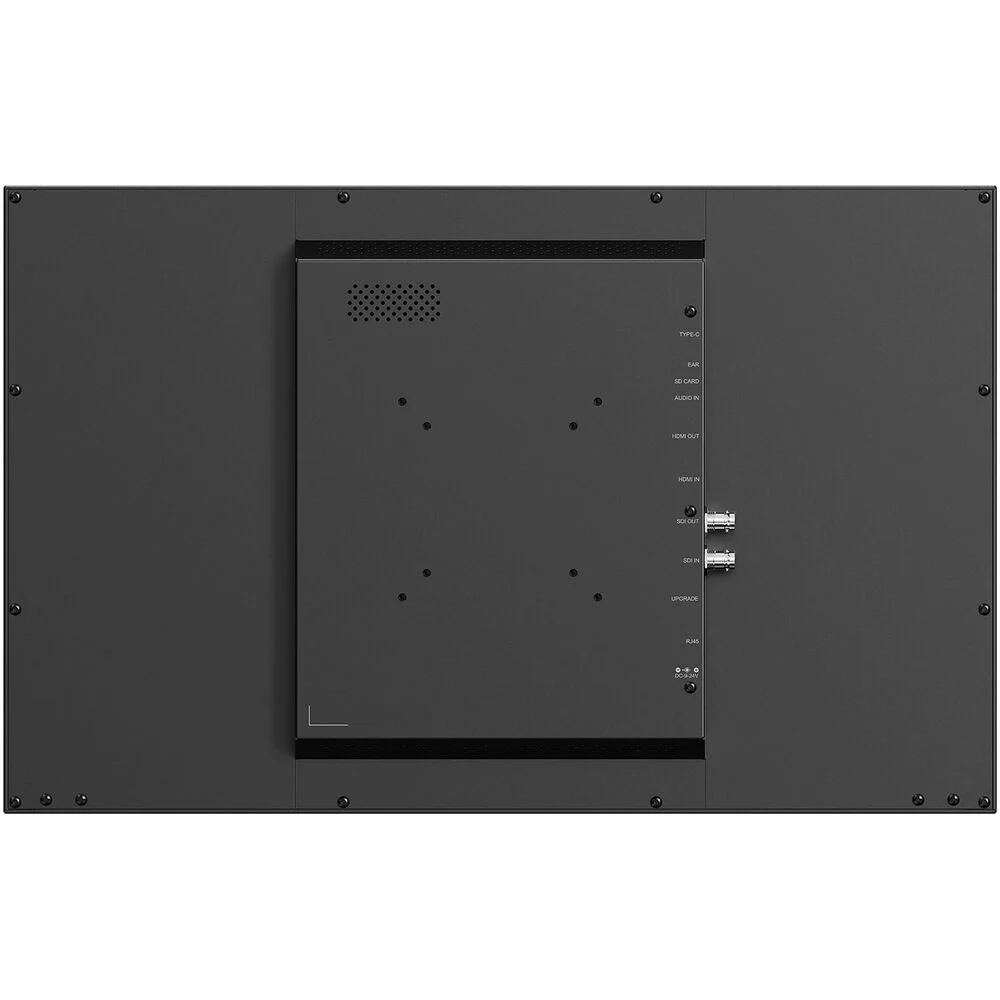

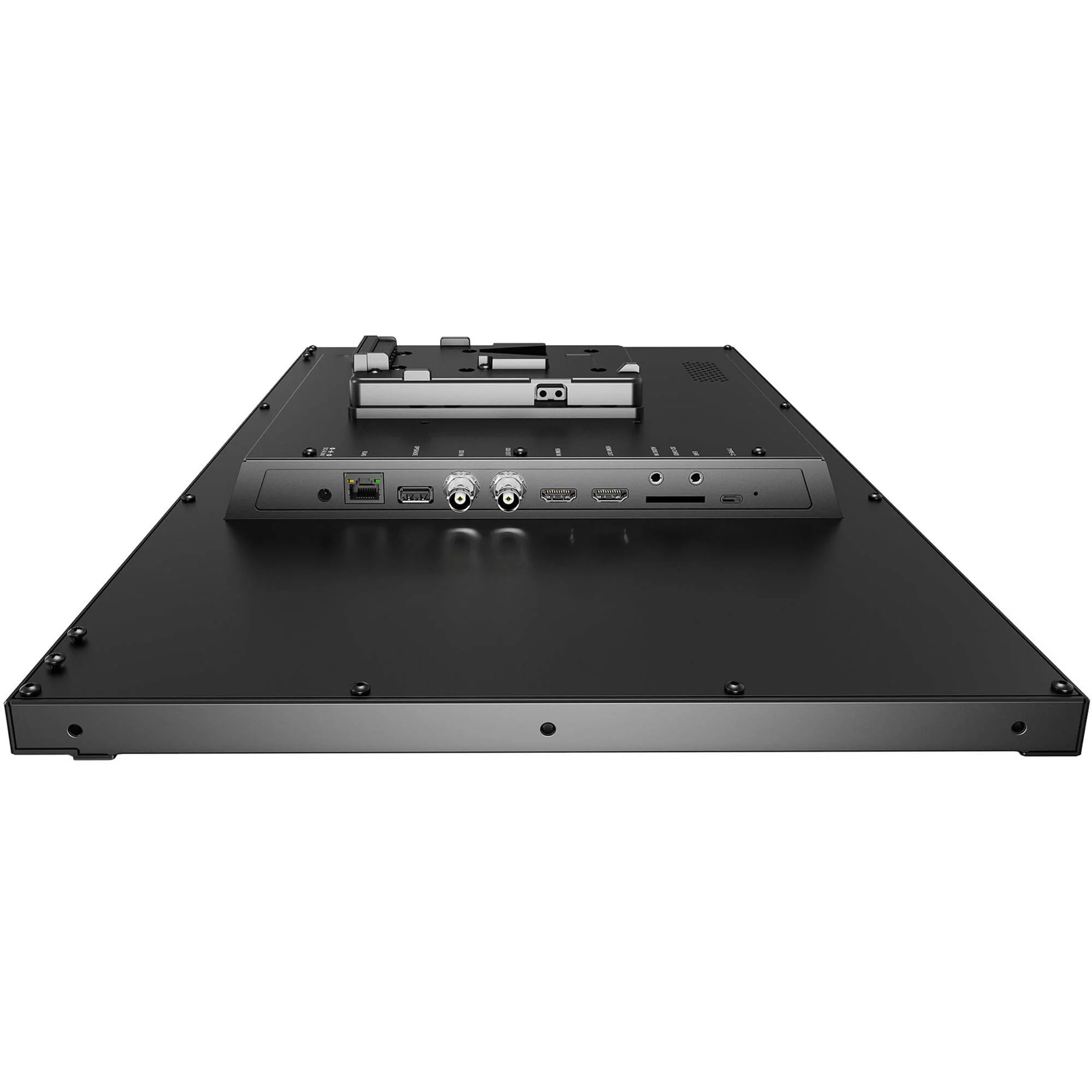

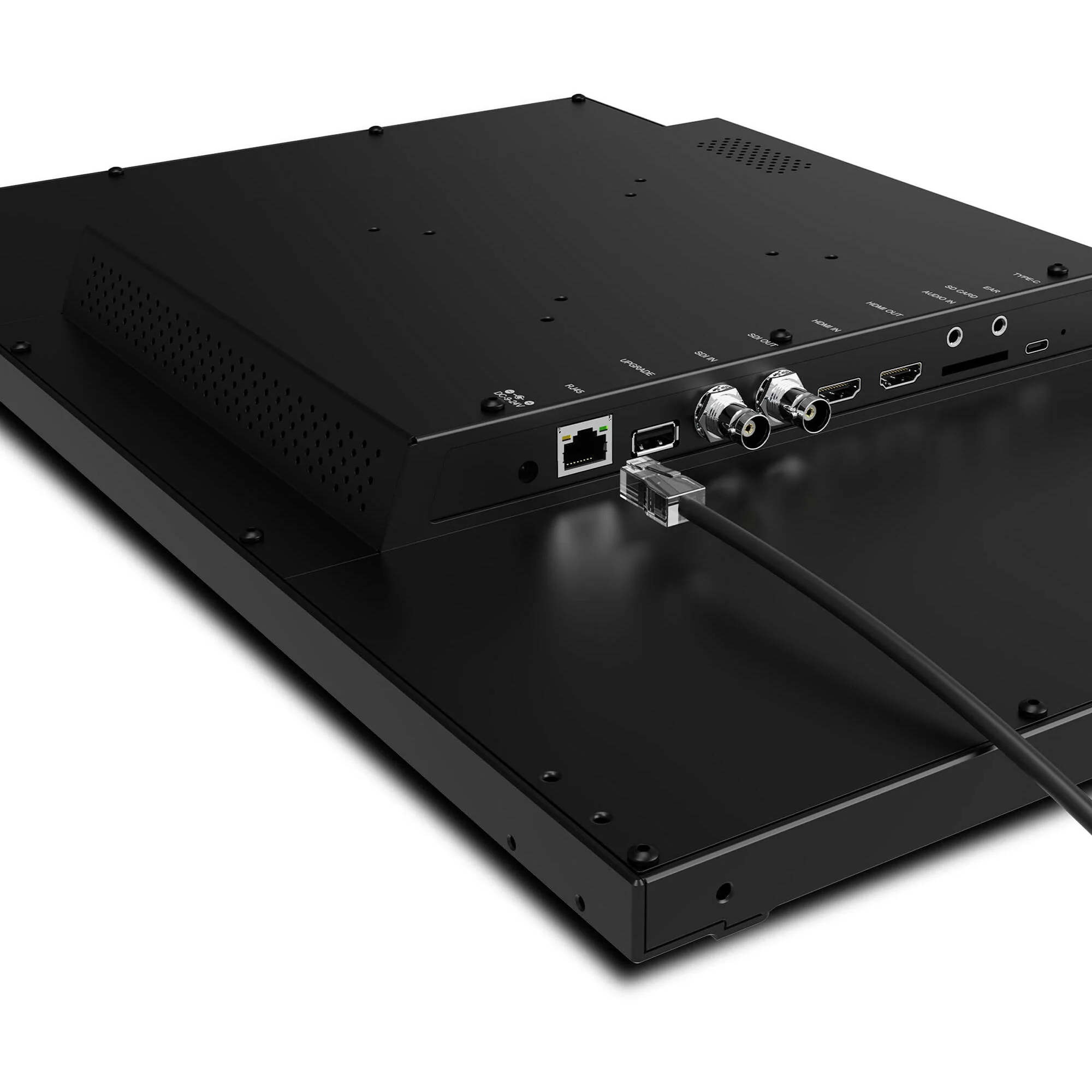

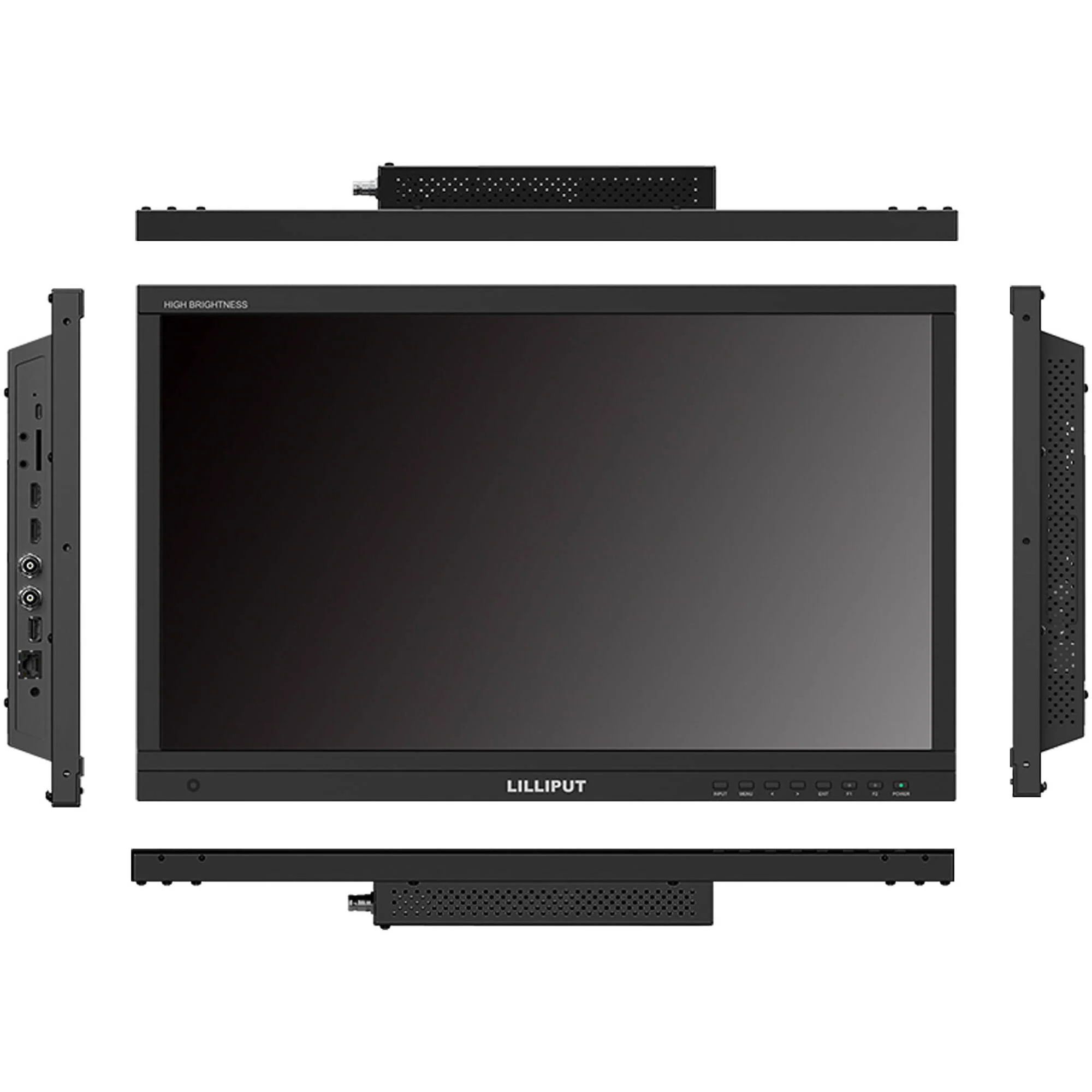

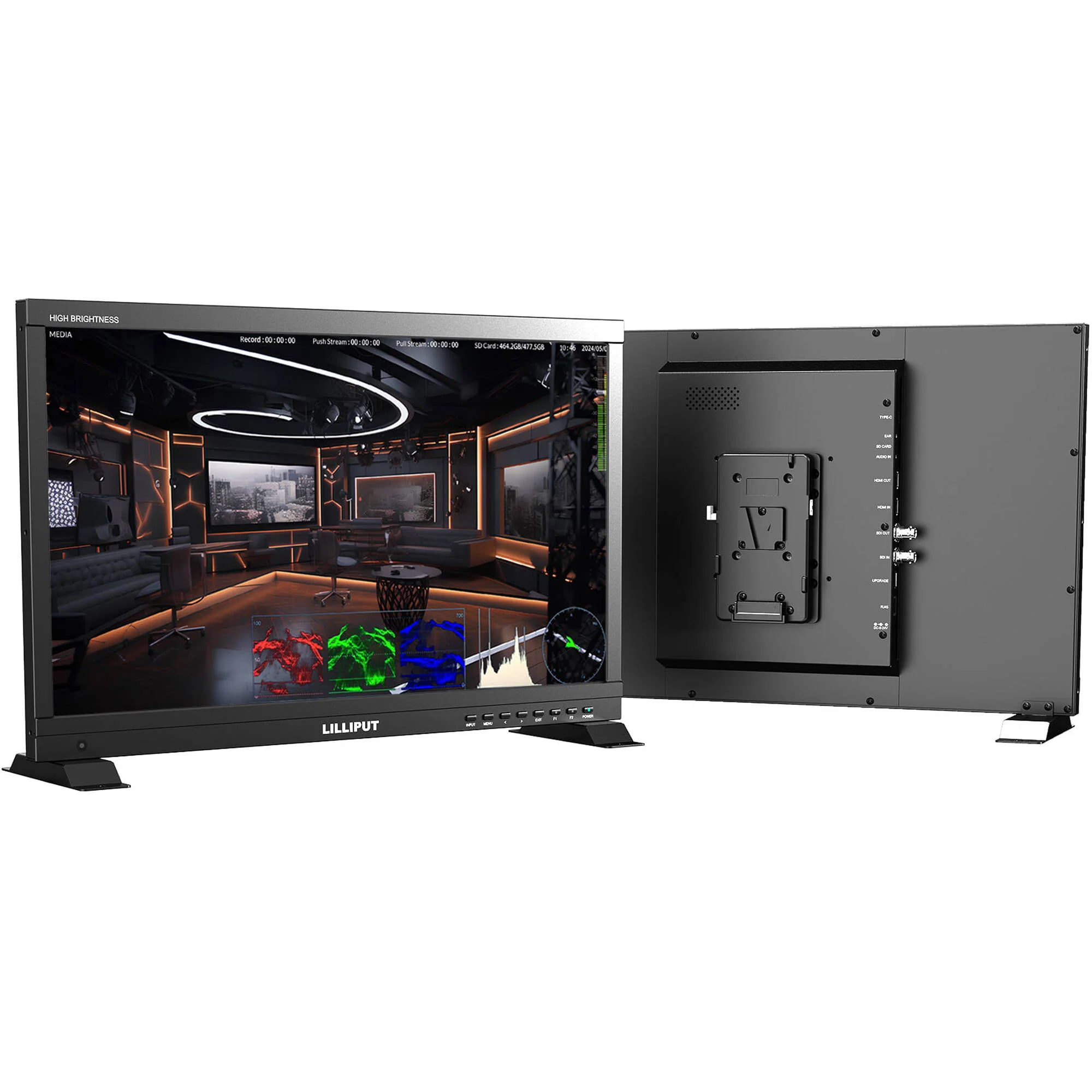

    Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount) - Image 2
