Libec LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly
Libec LX-ePed 2 Studio Overview

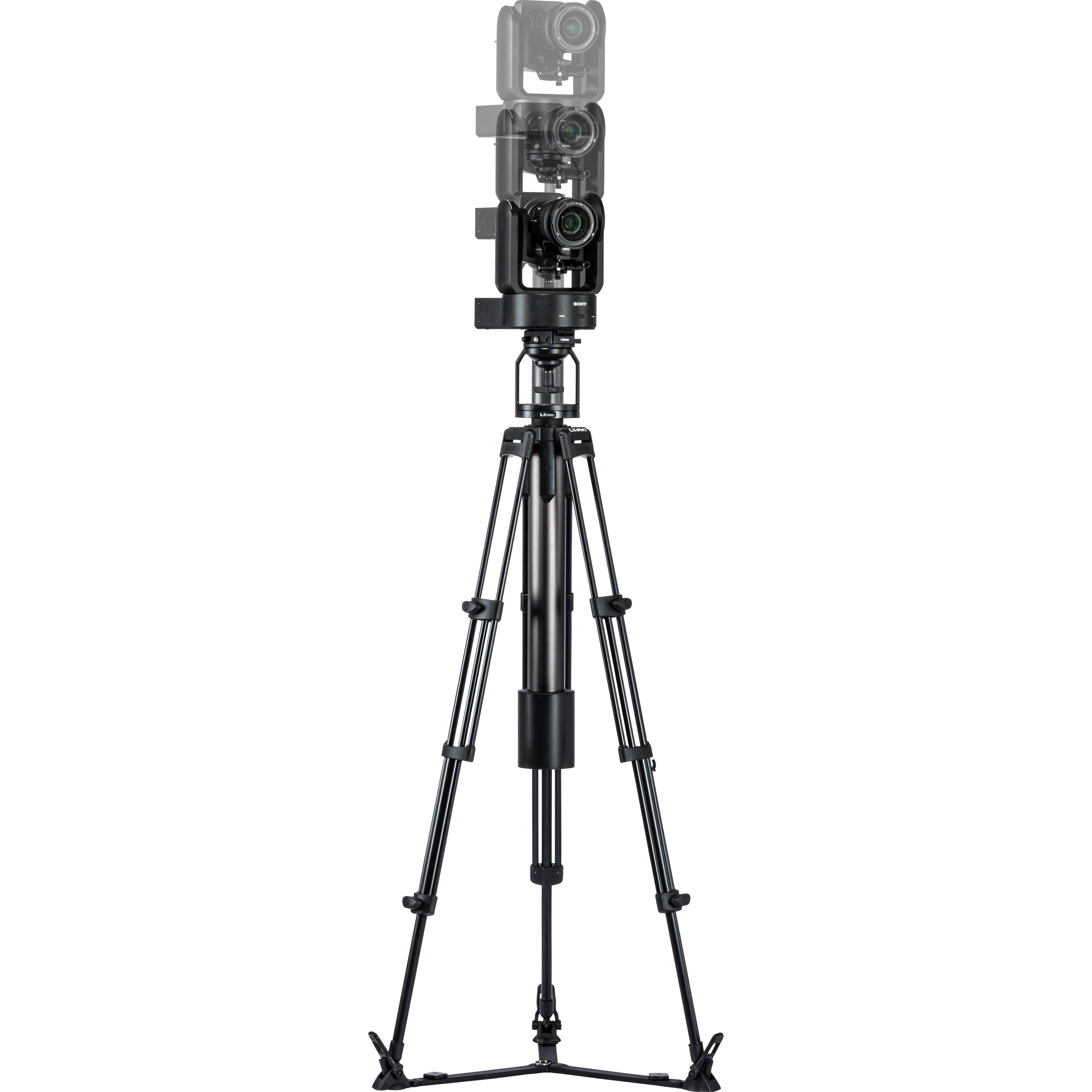

Raise and lower your mounted camera of choice with this LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly from Libec thanks to its handheld controller and working height range of 37.5 to 97.2". Mount a camcorder, PTZ, or other recording device on the tripod using the 1/4"-20 and 3/8"-16 screws on its 100mm ball head and 22 lb load capacity.
LAN ports on both the pedestal column and controller unit allow the devices to communicate using the included LAN cable. The cable features a length of 98.4', allowing you to operate at a distance. The elevation rocker on the controller allows for the intuitive raising and lowering of the tripod's center column up to 15.7". Continuous operation can be performed for three minutes at a time. An optional MPC-1 multi-protocol converter makes the system compatible with PTZ controllers and PC applications for precise adjustment. The included standard dolly provides smooth movement around your studio space, and an AC/DC power adapter provides power.
Items Included
- Libec LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly

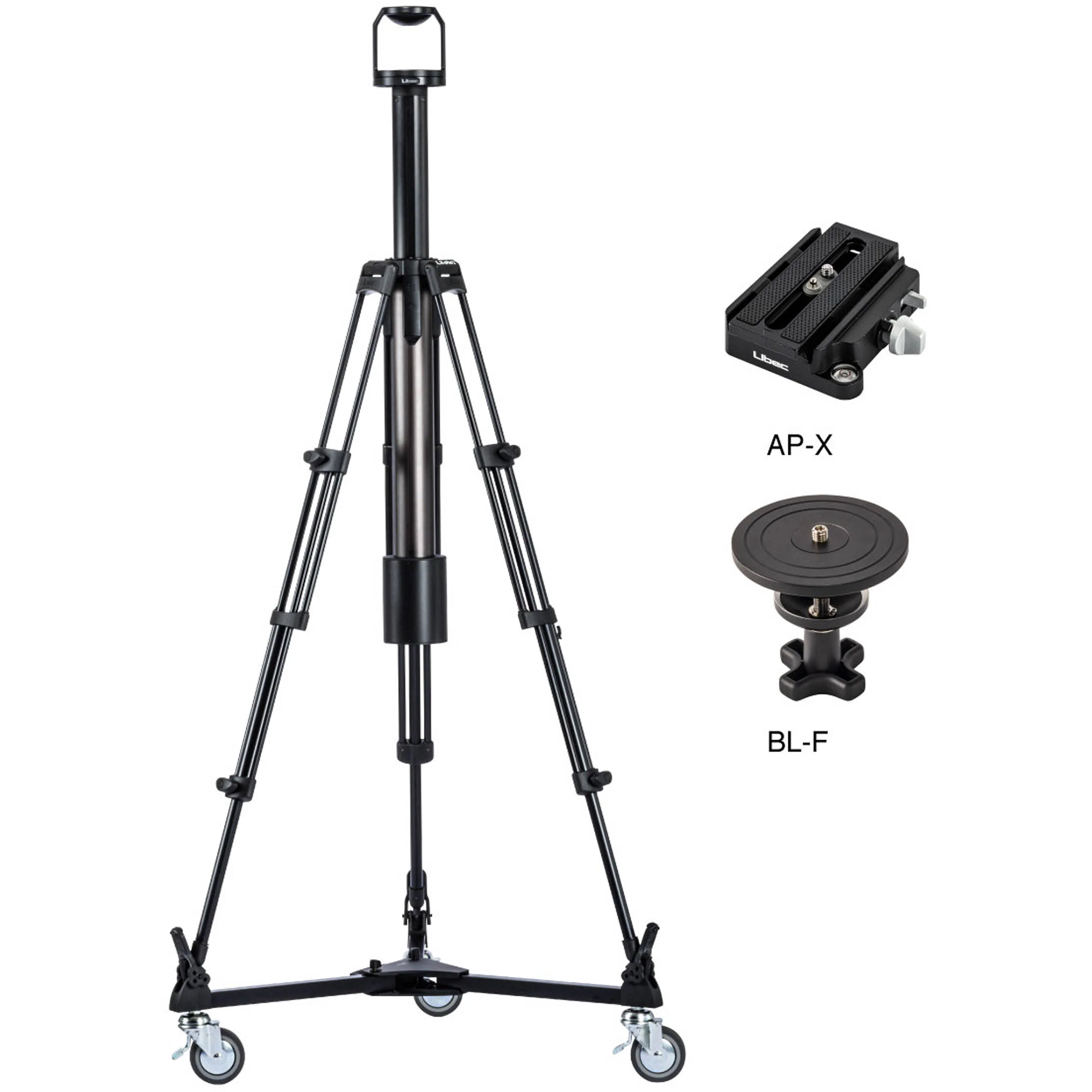

- Libec Flat Base Adapter for 75/100mm Bowl Tripods
- Libec QR Adapter Plate
- Libec DL-3RB Standard Dolly for RT30B/RT40RB/RT50B/RT50C Tripods

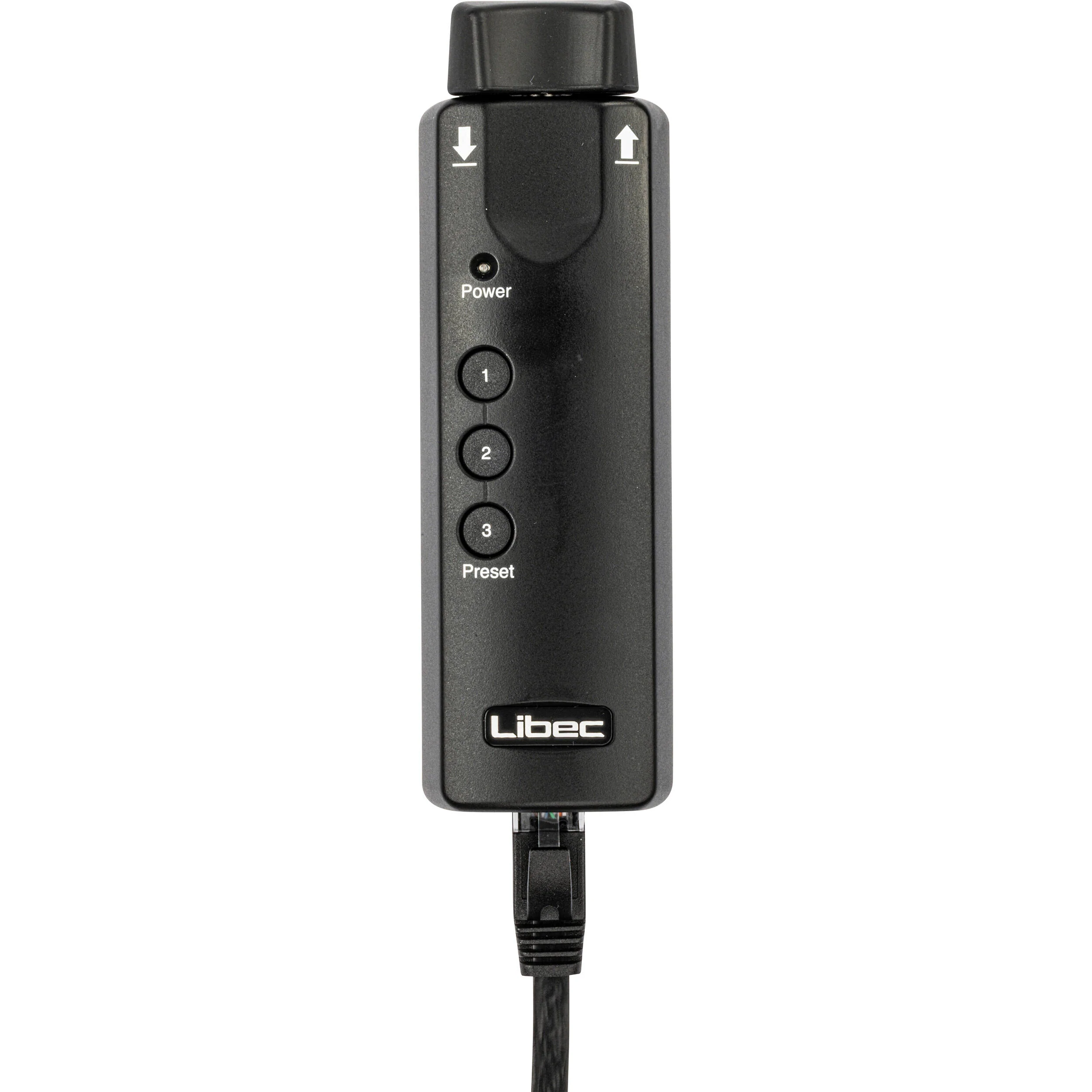

- Controller with Elevation Rocker
- AC/DC Adapter Cable (9.8')
- International Plug Adapter Set
- LAN Cable (98.4')
- 1/4"-20 Camera Screw
- Limited 3-Year Manufacturer Warranty
Additional Resources
Libec LX-ePed 2 Studio Specs
| Load Capacity |
22 lb / 10 kg
|
| Adjustable Height Range |
43.1 to 103.9" / 1095 to 2640 mm (Manual)
15.7" / 400 mm (Electronic Pedestal) |
| Folded Length |
9.4 x 40.7" / 241 x 1035 mm
|
| Speed |
14 to 40 seconds
|
| Video I/O |
1x RJ45 Input/Output ( LAN )
|
| Power Source |
AC Adapter with Power Brick
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 2 A
|
| Power Consumption |
24 W
|
| Mounting |
1x 1/4"-20 Screw
1x 3/8"-16 Screw 2x 1/4"-20 Thread 2x 3/8"-16 Thread 1x 100mm Bowl |
| Color |
Black
|
| Operating Conditions |
14 to 104?F / -10 to 40?C at 10 to 90% Humidity
|
| Cable Length |
98.4' / 30 m (LAN)
9.8' / 3 m (AC/DC Adapter) |
| Weight |
32.8 lb / 14.9 kg
|
| Package Weight |
44 lb
|
| Box Dimensions (LxWxH) |
50 x 13.5 x 13.25"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
