Lascar DPM970 DPM970 Digital Panel Meter 3-1/2 Digits AC Voltage 0V to 500V

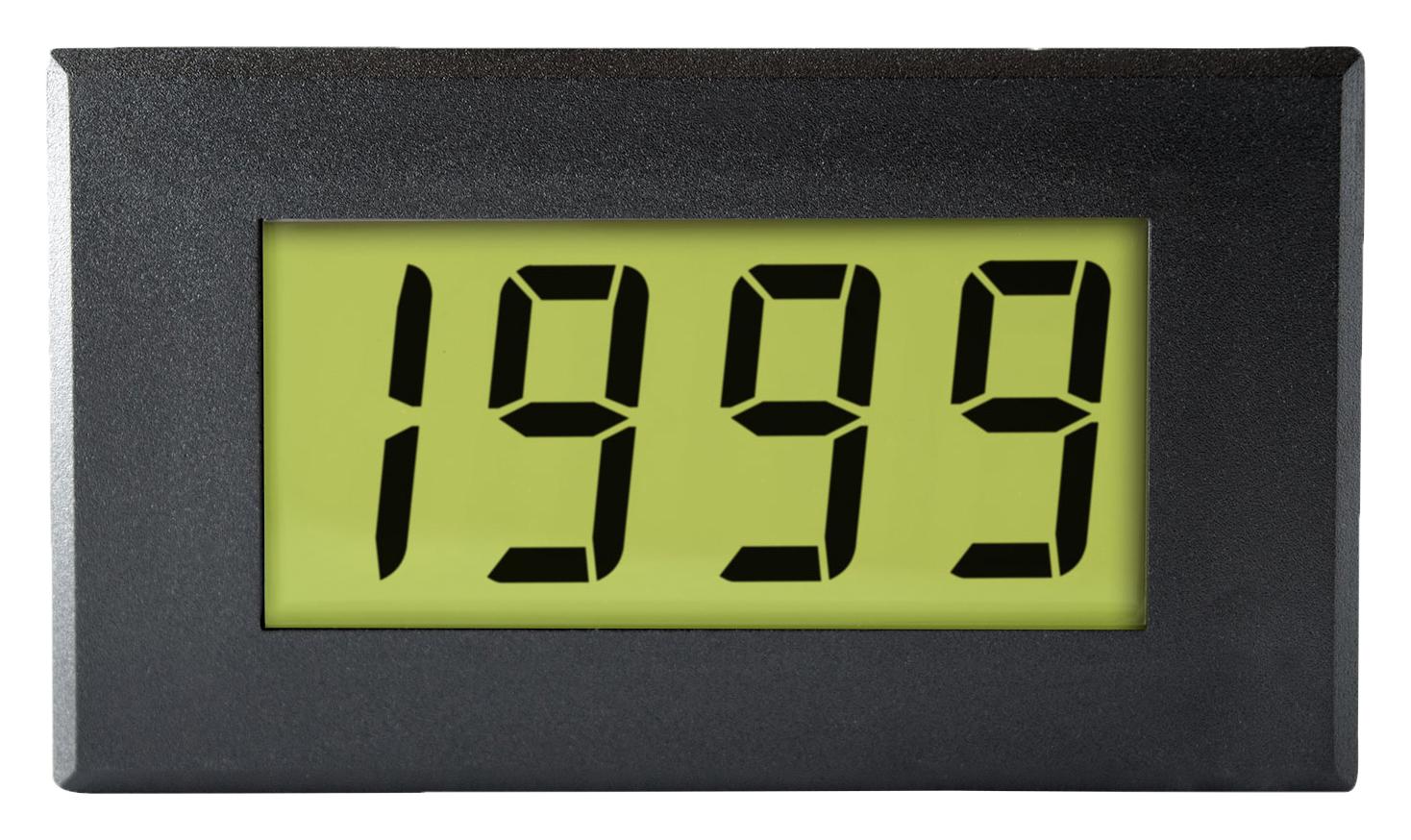

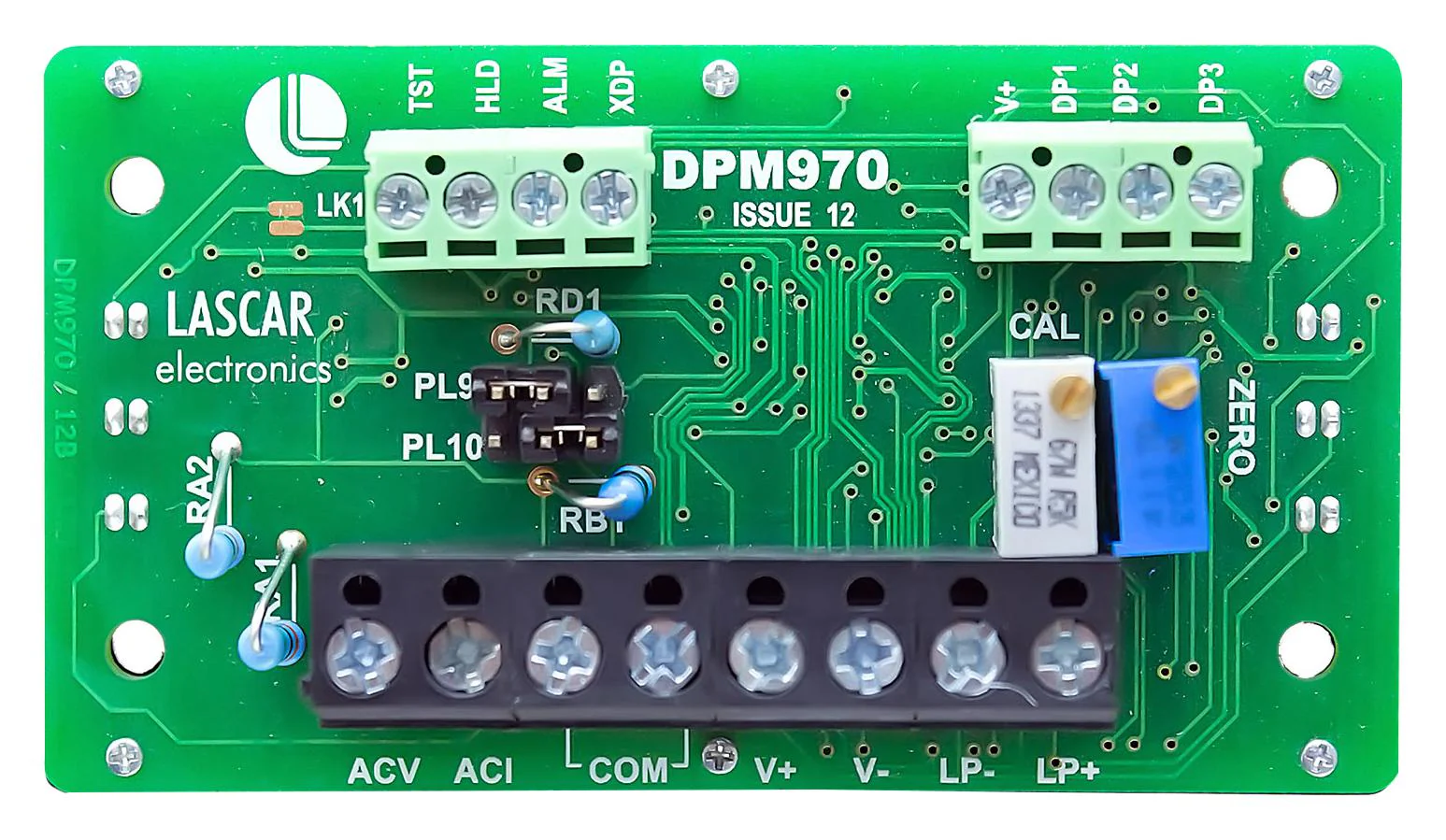

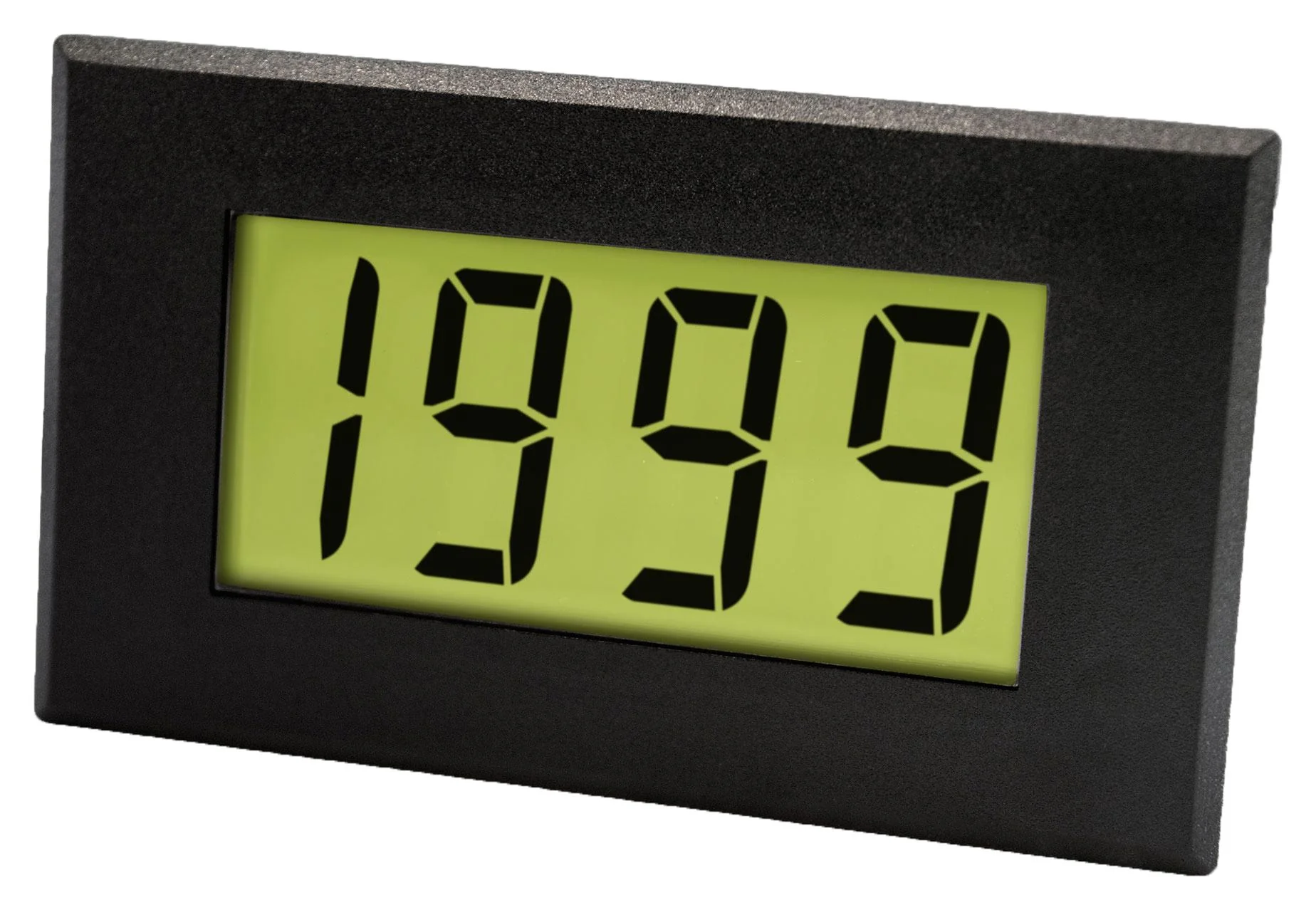

The DPM970 is a Large AC LCD Voltmeter features a 3-1/2-digit LCD with 19mm digit height and LED backlighting. With 500VAC full scale reading, auto-zero and auto-polarity and screw terminal connections, this meter can be fitted into a panel via the bezel, window and clips provided. This is a popular part, normally stocked in high quantity and suitable for new designs. Calibration is achieved via two multi-turn potentiometers for offset and scale. Connection to the meter is via screw terminals. The module is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.

• Digital hold function which freezes the last displayed reading
• Screw terminal connections
• Digital hold
• Measures voltage and current
• 3 Samples/sec rate

Applications

Industrial, Clock & Timing, Test & Measurement, Portable Devices

Product details

No. of Digits / Alpha	3-1/2
Meter Function	AC Voltage
Meter Range	0V to 500V
Digit Height	19mm
Panel Cutout Height	40mm
Panel Cutout Width	72mm
Supply Voltage Min	7.5V
Supply Voltage Max	14V
Operating Temperature Min	0°C
Operating Temperature Max	50°C
Product Range	-

Other details

Brand	LASCAR
Part Number	DPM970
Quantity	Each
Technical Data Sheet EN
