Kitronik 5693 Robotics Board BBC micro:bit 3 V to 10.8 Supply 10 A 2 Stepper Motors

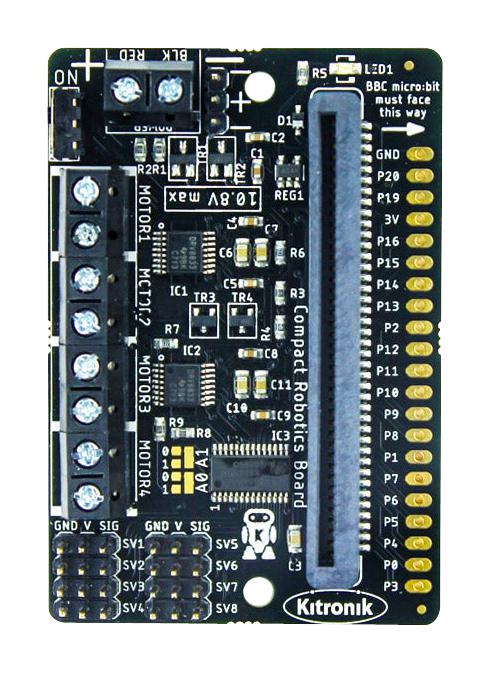

5693 is a Kitronik compact all-in-one robotics board for BBC micro:bit. With the Kitronik Compact Robotics Board, the BBC micro:bit can be used to drive 4 motors (or 2 stepper motors) and 8 servos. Coupled with 17 other I/O expansion points, this means the BBC micro:bit can very easily become the core of a whole variety of robotics projects. The board is small on footprint but big on features and connectivity. The Robotics Board features 2 Dual H Bridge Motor Driver ICs (capable of driving 2 standard motors or 1 stepper motor each) and 8 servo outputs (capable of driving standard and continuous rotation servos), all controlled from the BBC micro:bit using the I2C protocol via a 16 channel driver IC. Our custom MakeCode blocks make using I2C easy, even for novice users.

• The link header is designed to allow 2.54mm pitch pin header to be used
• I2C communication lines are also broken out allowing other I2C compatible devices to be controlled
• Board also features an on/off switch and power status LED
• Power the board via either a terminal block or servo style connector
• 3V and GND pins are also broken out on the Link header, allowing external devices to be powered

Contents

1 x compact robotics board for BBC micro:bit.

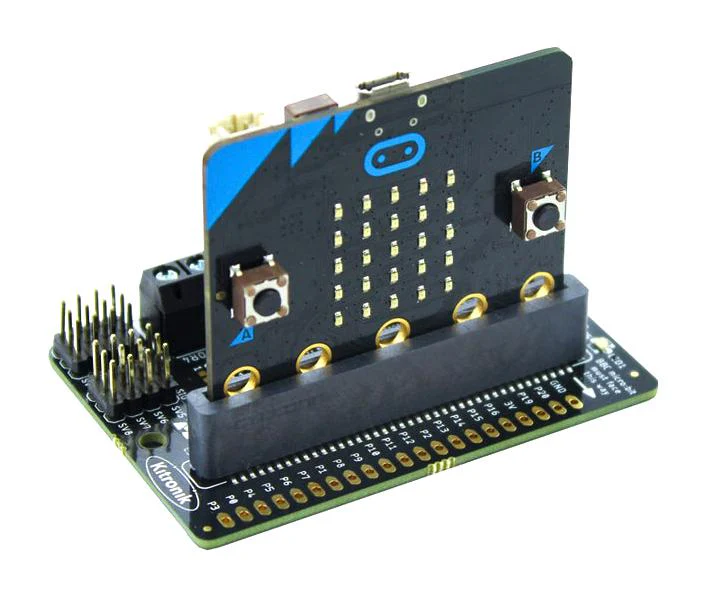

Footnotes Note: I2C devices controlled by the same micro:bit MUST have different addresses. micro:bit and accessories shown for illustration only, not included.

Product details

Silicon Manufacturer	-
Core Architecture	-
Core Sub-Architecture	-
Silicon Core Number	-
Silicon Family Name	-
For Use With	micro:bit
Kit Contents	All-in-one Robotics Board
Product Range	-

Other details

Brand	KITRONIK
Part Number	5693
Quantity	Each
Technical Data Sheet EN
