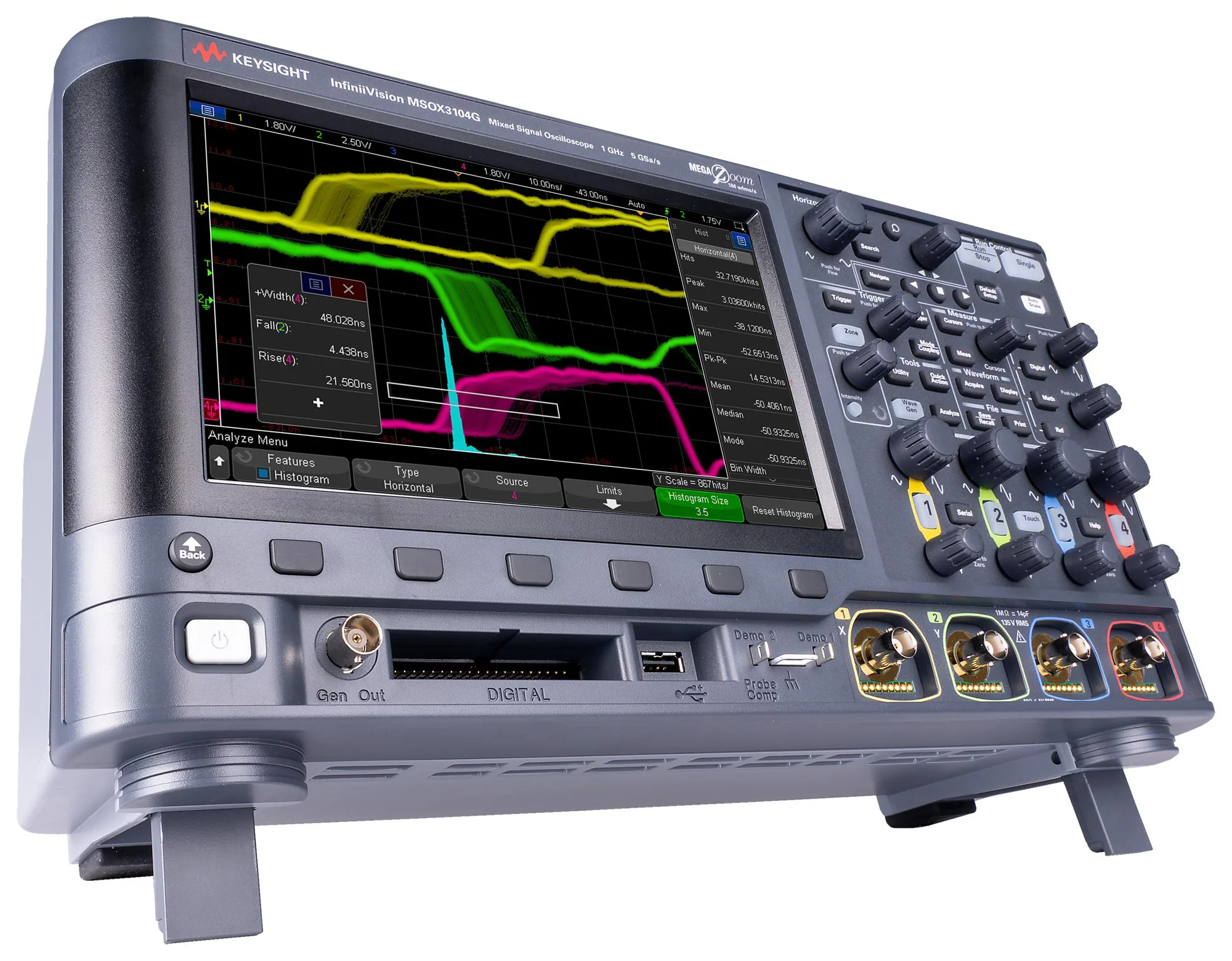

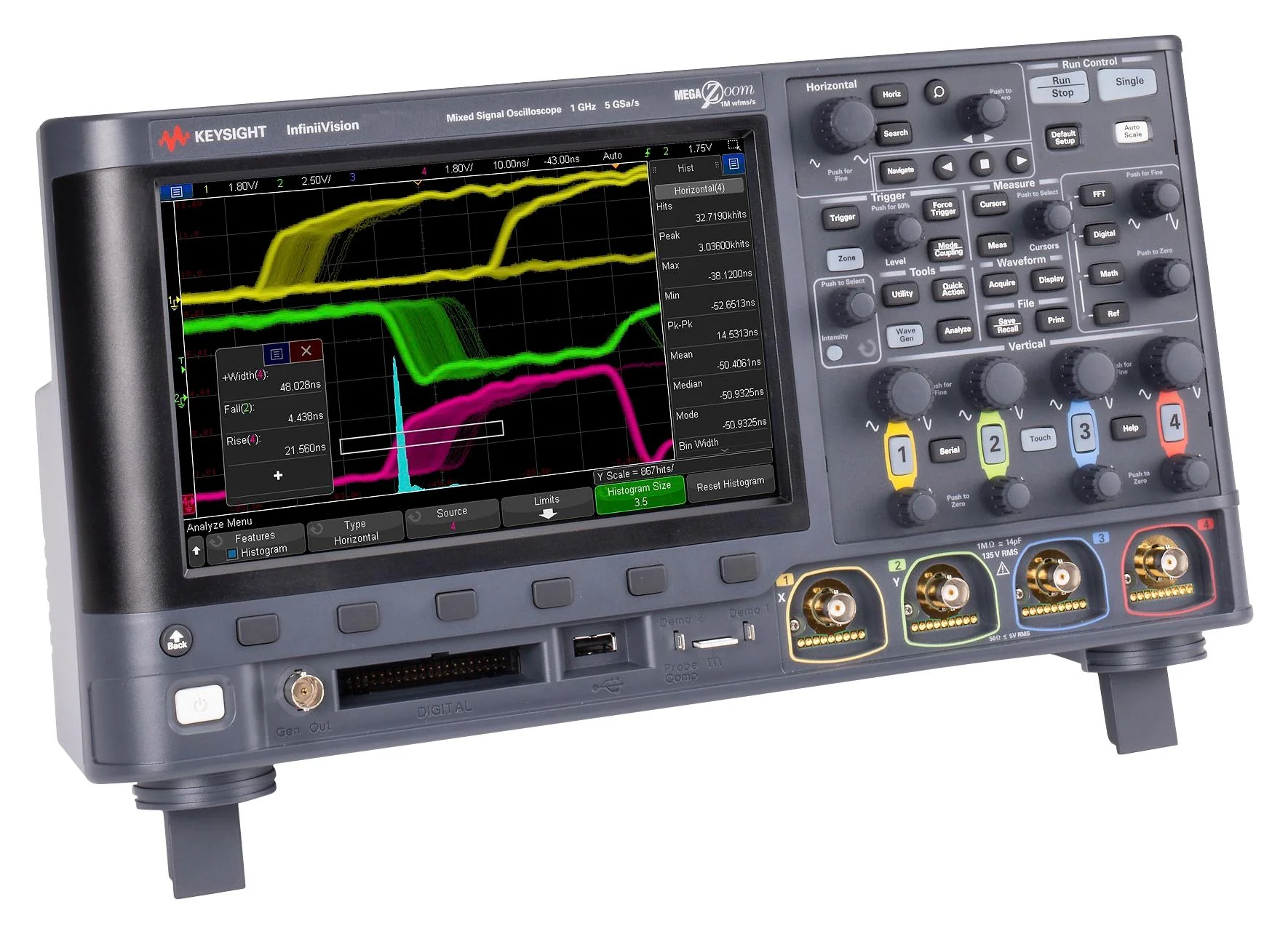

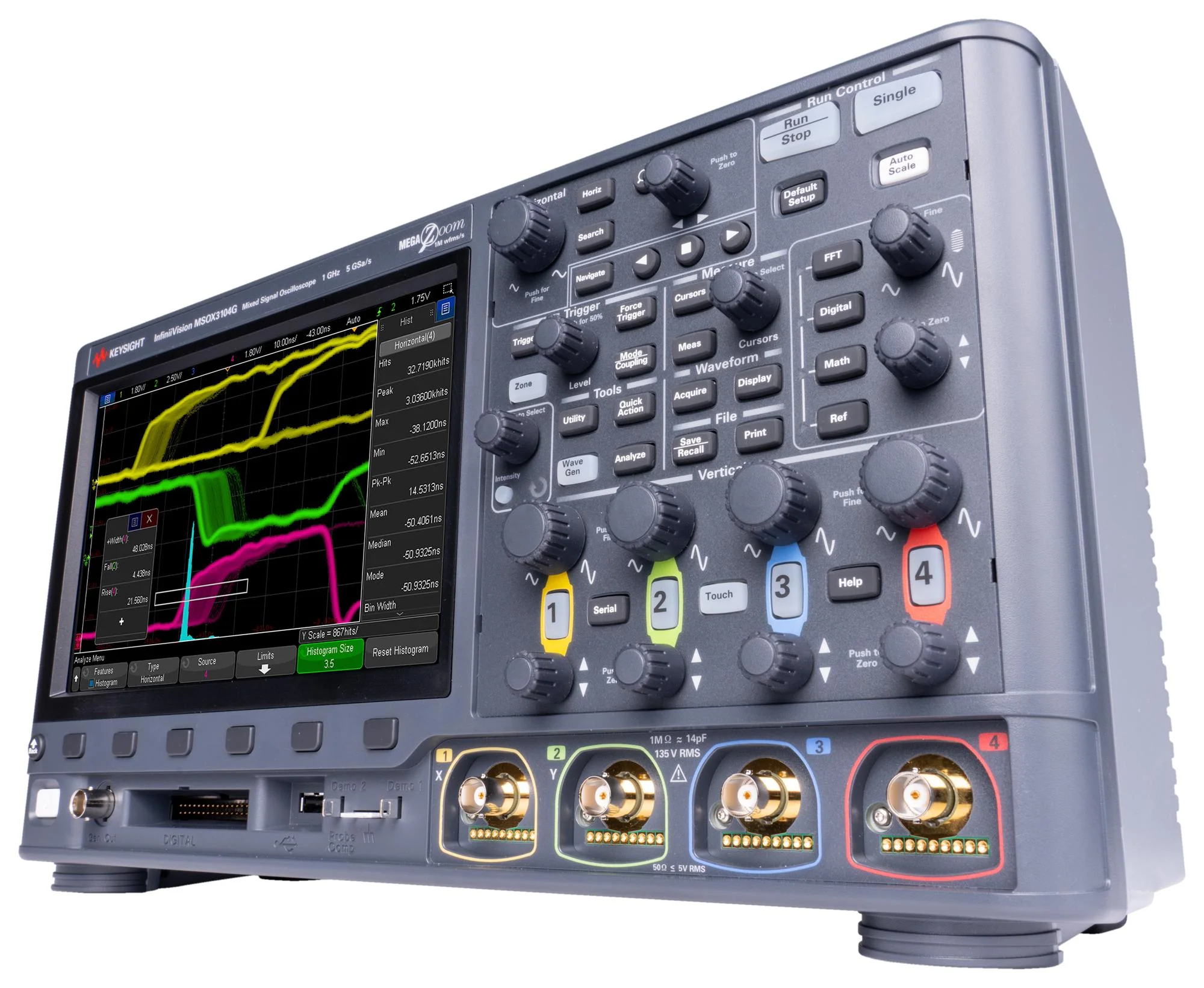

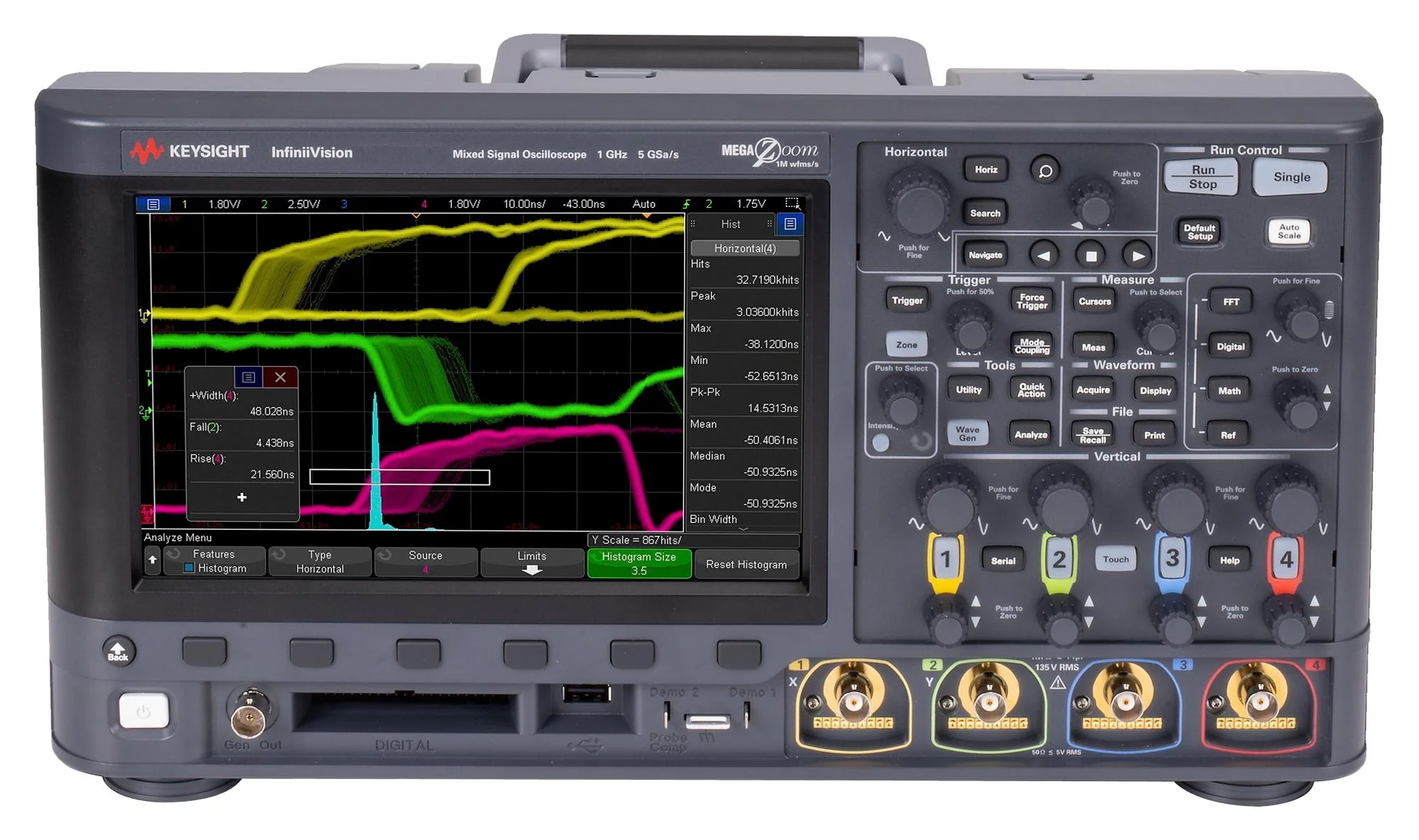

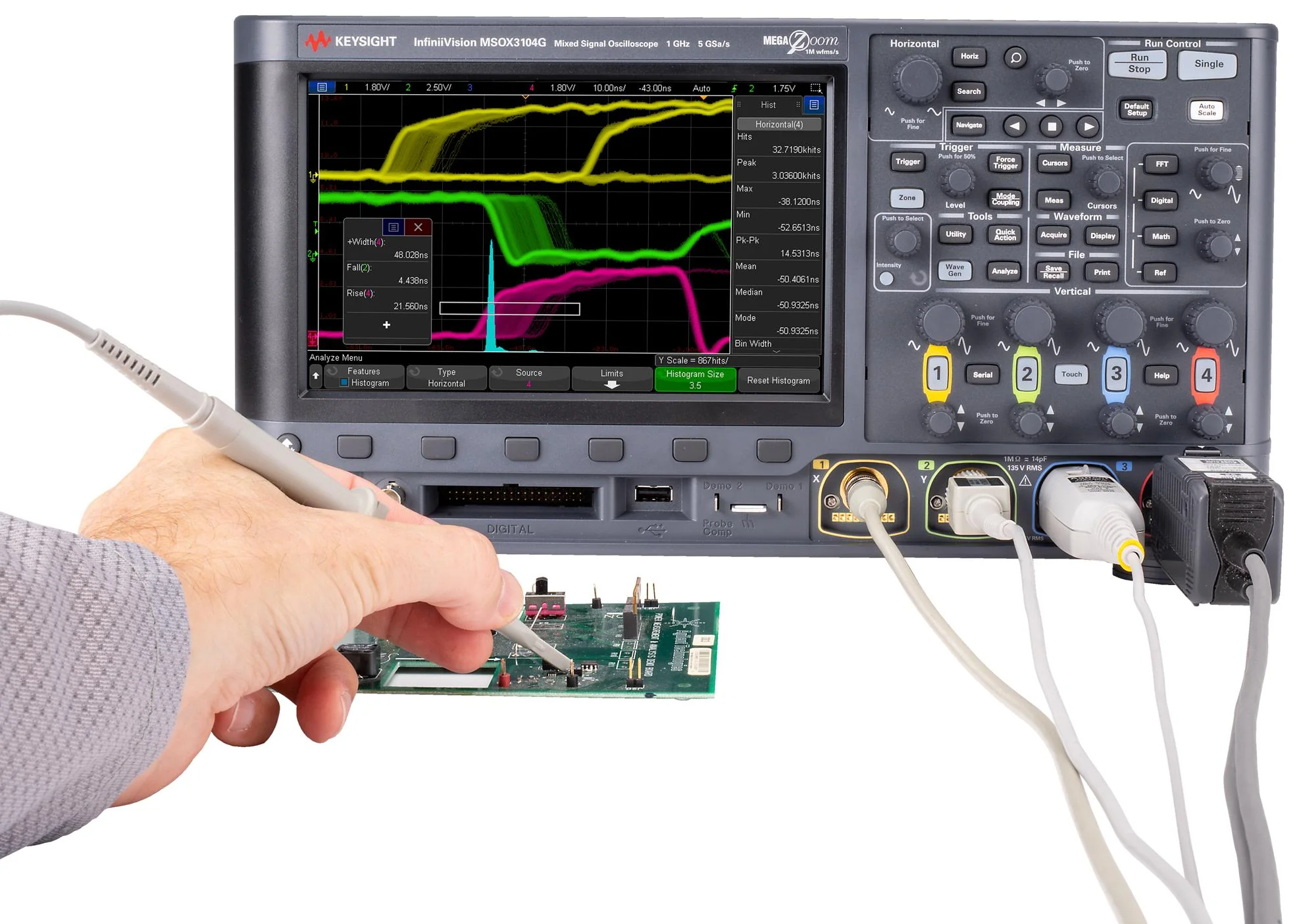

Keysight Technologies DSOX3024G DSOX3024G Digital Oscilloscope Infiniivision 3000G X Series 4 Channel 200 MHz 5 Gsps Mpts 1.75 ns

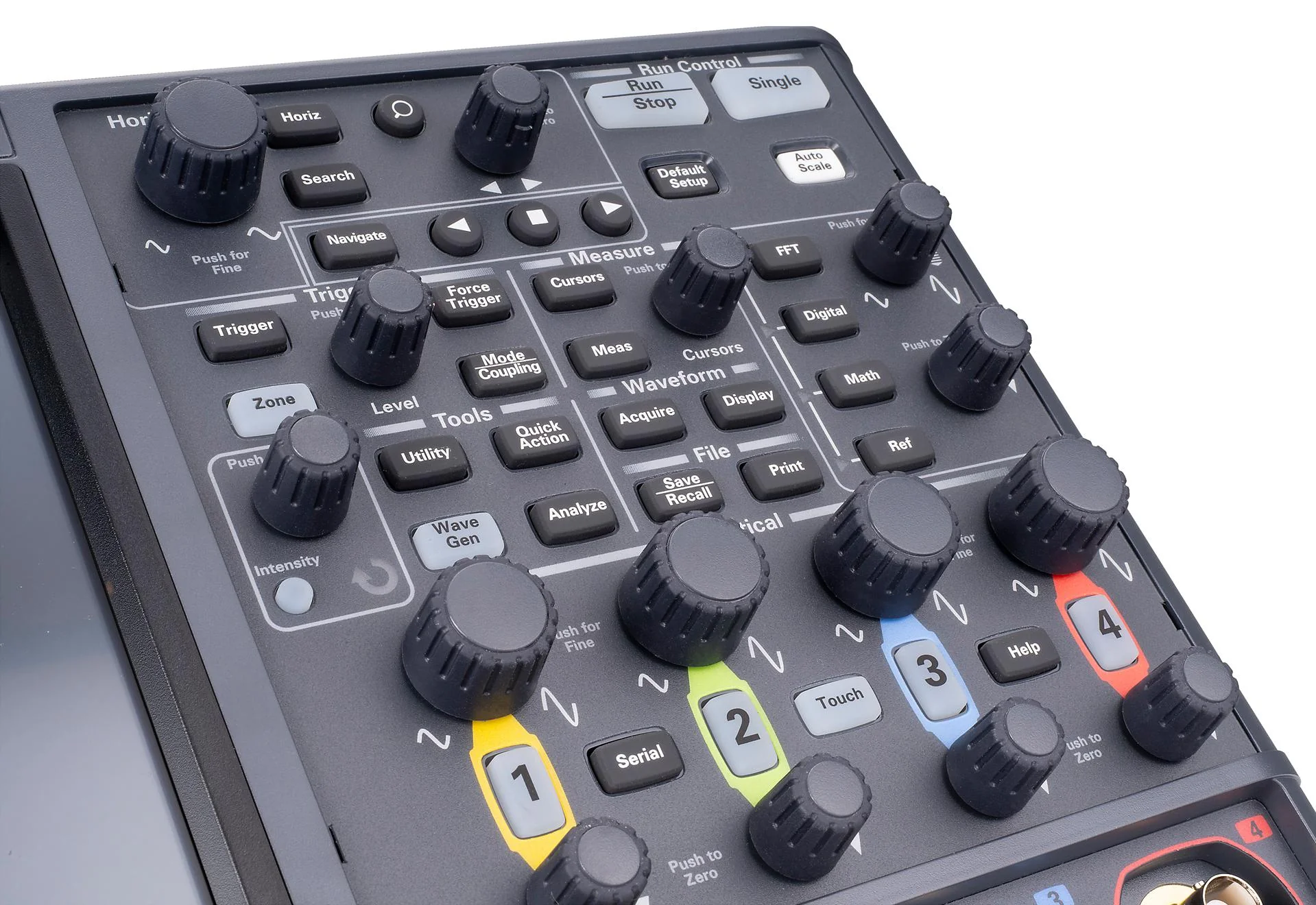

DSOX3024G is an InfiniiVision 3000G X-Series digital signal oscilloscope (DSO). With the best in usability, a comprehensive front panel with quick access buttons, easy-to-use touch operation or mouse-based control through direct connection or web-based UI, the InfiniiVision 3000G X-series oscilloscope enables to work in whatever way is best for you.

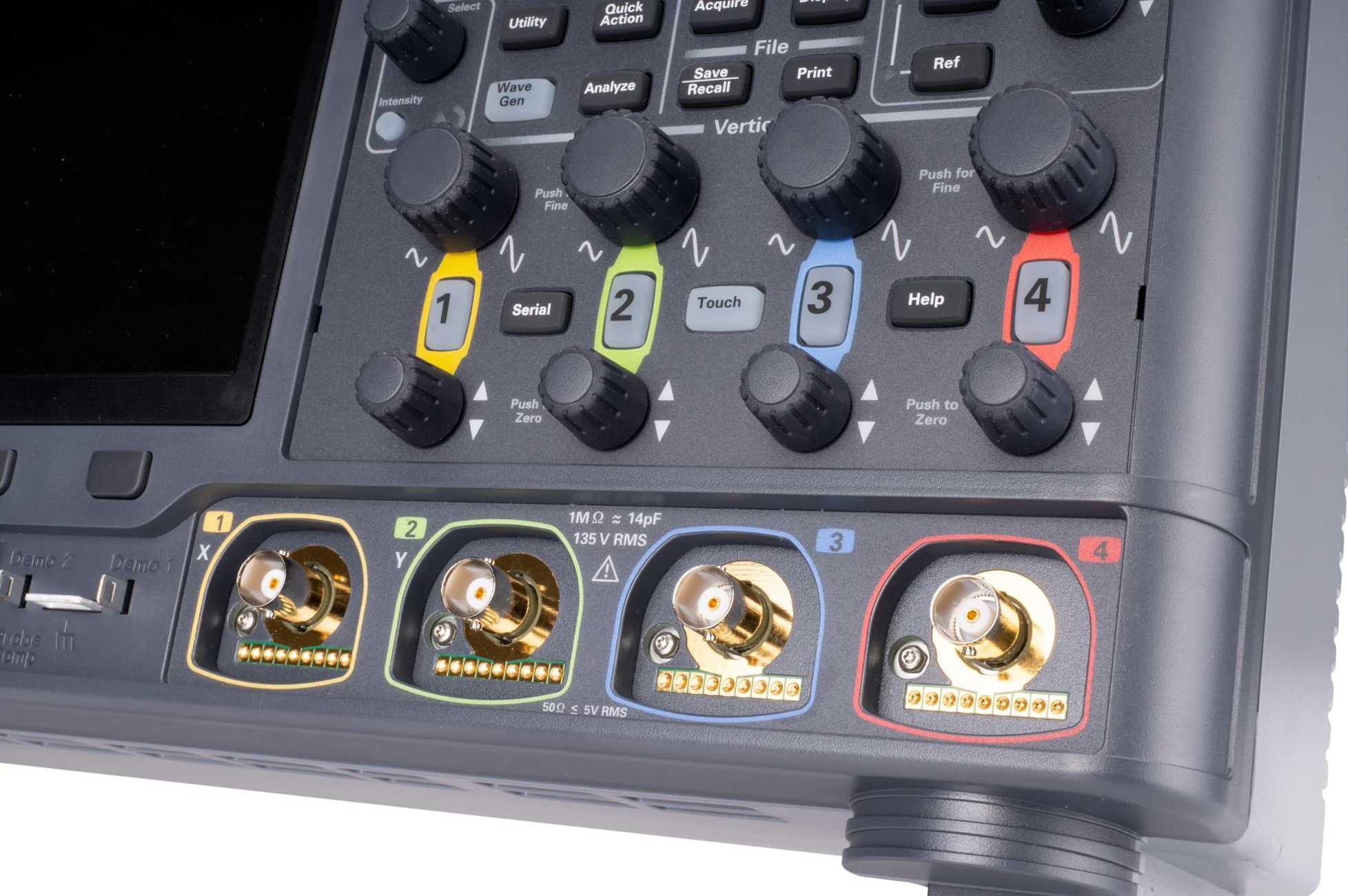

• 4 input channels, 200MHz bandwidth
• 8.5inch capacitive touch screen/gesture enabled TFT LCD
• Calculated rise time (10 to 90%) is <= 1.75ns
• Powerful triggering and decoding serial buses including I2C, SPI, UART/RS232/RS485, I2S and USB-PD
• High performance mask and measurement limit testing enabled in hardware
• Frequency response analysis (bode plots)
• Waveform & measurement histograms
• Built-in function/arbitrary waveform generator
• HDTV video analysis and LAN/VGA I/O communication
• PathWave BenchVue oscilloscope software for control, automation and offline analysis

Contents

DSOX3024G DSO, N2843A passive probe 500MHz, Certificate of calibration, Power cord.

Other details

Brand	KEYSIGHT TECHNOLOGIES
Part Number	DSOX3024G
Quantity	Each
Technical Data Sheet EN
Application Note EN
Enhanced Product Overview EN
Miscellaneous EN
Manufacturer Catalogue EN
